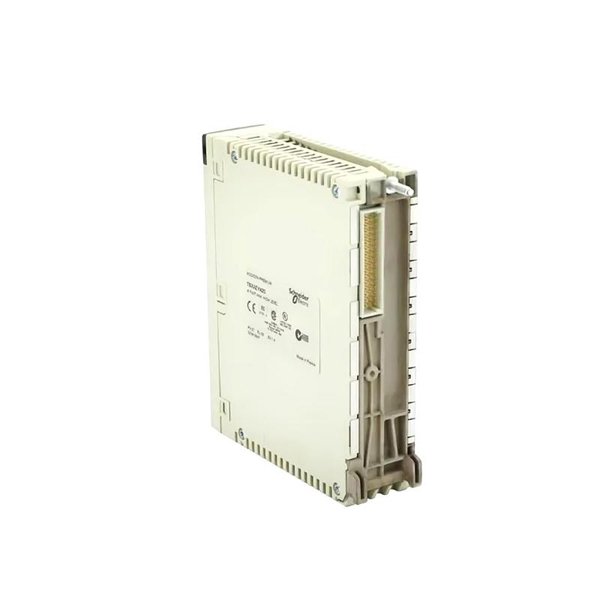

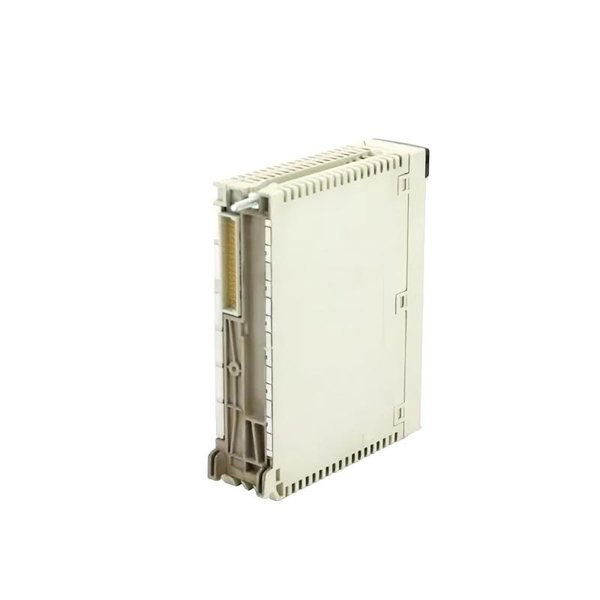

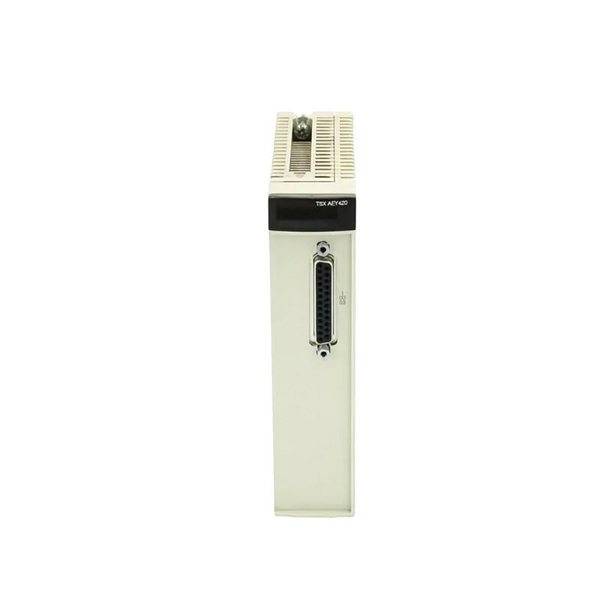

Schneider TSXAEY420 Analog Input Module

The Schneider TSXAEY420 is a high-performance analog input module designed for the Modicon Premium automation platform. Featuring four high-level, fast analog input channels with 16-bit resolution, it ensures precise and rapid signal acquisition. This module is suitable for applications requiring accurate measurement of analog signals such as temperature, pressure, flow, and level, providing exceptional data quality and control.

Technical Specifications

Applications

The TSXAEY420 module is versatile and suitable for a wide range of industrial applications, including:

• Process Control Systems: Accurate measurement and monitoring of analog signals in industries such as chemical, oil & gas, and pharmaceuticals.

• Manufacturing Automation: Integration into automated systems for precise control of machinery and processes.

• Water and Wastewater Treatment: Monitoring and controlling treatment processes to ensure compliance with environmental standards.

• Energy Management: Measurement of parameters like temperature and pressure in power generation and distribution systems.

• HVAC Systems: Monitoring and controlling environmental conditions in commercial and industrial buildings.

Advantages

• High Precision: 16-bit resolution ensures accurate signal conversion for reliable data acquisition.

• Fast Response Time: Nominal read cycle time of 1 ms allows for rapid signal processing.

• Robust Isolation: 1000 Vrms isolation between channels and bus, and between channels and ground, enhances system safety.

• Versatility: Supports a wide range of voltage and current input signals, accommodating various sensor types.

• Compact Design: Standard module format allows for easy integration into existing Modicon Premium PLC systems.

• Compliance: Meets international standards for safety and environmental compliance, including CE and marine certifications.

FAQs

1. What types of signals can the TSXAEY420 module process?

   • It can process high-level analog signals, specifically various voltage ranges (±10 V, 0–10 V, 0–5 V, 1–5 V) and current ranges (0–20 mA, 4–20 mA).

2. How many input channels does the module have?

   • The module features four independent analog input channels.

3. What is the resolution of the analog-to-digital conversion?

   • It offers a 16-bit resolution for precise signal conversion.

4. Is the TSXAEY420 compatible with other PLC series?

   • It is specifically designed for the Modicon Premium series and may not be compatible with other PLC series.

5. What are the power requirements for the module?

   • It requires a 5 VDC power supply from the system backplane, consuming 500 mA.

6. Can the module operate in extreme temperatures?

   • Yes, it operates within a temperature range of 0°C to 60°C and can be stored between -25°C and 70°C.

7. What is the weight of the TSXAEY420 module?

   • The module weighs 0.3 kg.

8. Does the module comply with international standards?

   • Yes, it is CE certified and holds various marine certifications, including BV, LR, ABS, RINA, RMRS, GL, and DNV.

9. Is it possible to perform hot swapping with the TSXAEY420?

   • No, the module is not designed for hot swapping. Power must be turned off before installation or removal to avoid potential damage or data corruption.

10. Is this module suitable for hazardous or outdoor environments?

    • While the TSXAEY420 meets IP20 protection standards and operates in industrial temperature ranges, it is not designed for direct use in hazardous zones or outdoor environments without appropriate protective enclosures.
