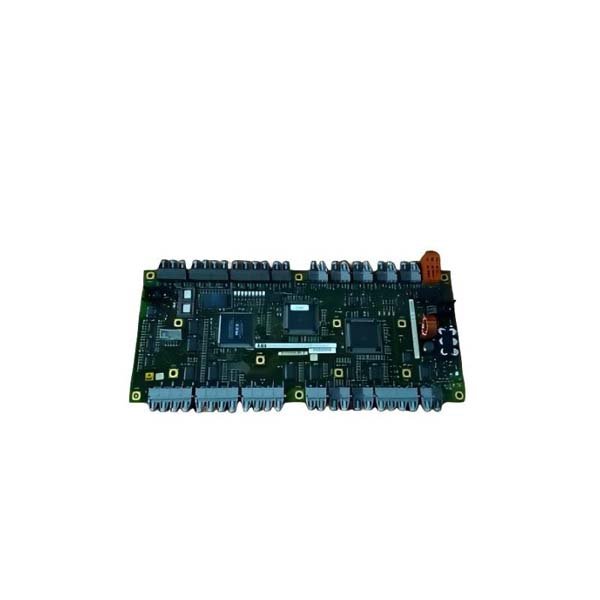

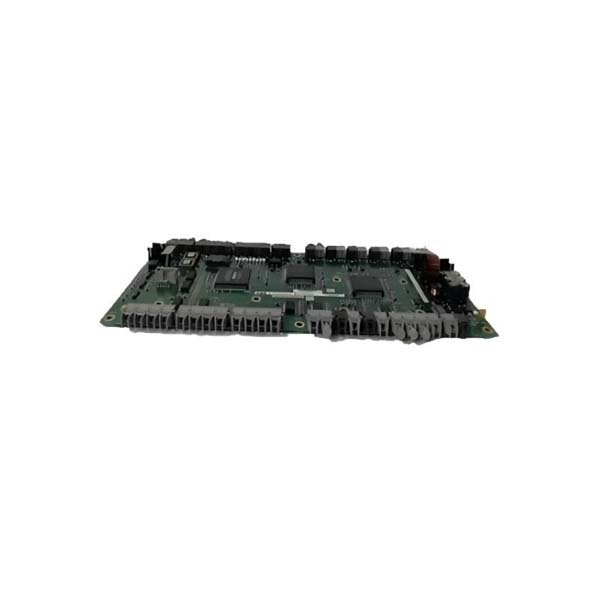

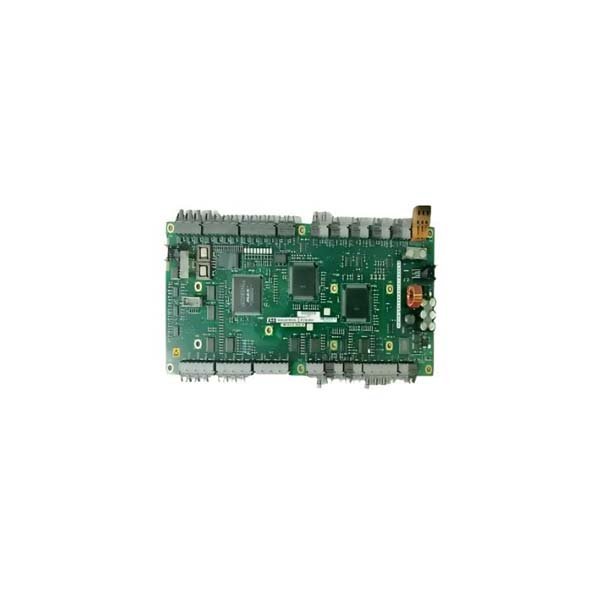

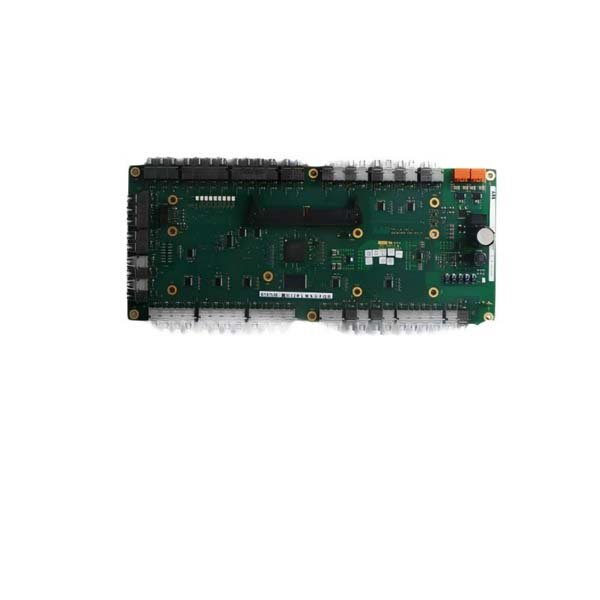

ABB UF C760 BE42 Central Processing Unit (CPU)

The ABB UF C760 BE42 (3BHE004573R0042) is a compact CPU controller module developed for ABB’s Symphony Plus and Advant control systems. It provides the processing intelligence required for high-performance distributed control applications, offering efficient computation, reliable communication, and robust diagnostics in a compact form factor. Designed for critical process environments such as energy, chemical, and manufacturing plants, the BE42 balances cost-effectiveness and computational power, making it ideal for mid-tier automation architectures that demand both stability and scalability.

Detailed Technical Data

Primary Industrial Applications

• Power Generation: Local process control for turbine and generator management.

• Petrochemical Plants: Supervisory automation for distillation and blending units.

• Water Treatment Systems: Compact control for filtration and distribution processes.

• Pharmaceutical Manufacturing: Batch control and recipe management for production consistency.

• Pulp & Paper Processing: Distributed logic control in continuous production lines.

• Marine Automation: Compact logic controller for propulsion and auxiliary systems.

• Food & Beverage: Reliable machine control and process coordination.

Key Technical Strengths

• Efficient Processing Core: Balanced speed for mid-complexity process automation tasks.

• Rugged Design: Built to withstand industrial temperature and EMI conditions.

• Seamless Integration: Fully compatible with ABB Symphony Plus and Advant systems.

• Redundant Communication Support: Ensures network reliability and control continuity.

• User-Friendly Programming Environment: Supports ABB Control Builder and standard IEC languages.

• Low Power Usage: Optimized energy profile for efficient operation.

• Self-Diagnostic Capability: Continuous system health checks minimize downtime.

• Compact Footprint: Fits easily in limited cabinet spaces.

• Modular Expandability: Can be upgraded or replaced without system redesign.

• High System Reliability: Proven stability in continuous industrial operations.

FAQs

1. Q: What DCS systems are compatible with the BE42 module?

   A: It integrates directly into ABB Symphony Plus and Advant systems.

2. Q: What differentiates the BE42 from the BE45 and BE145 models?

   A: The BE42 is a compact CPU version designed for smaller-scale automation systems.

3. Q: Can the BE42 handle redundant Ethernet communication?

   A: Yes, it supports dual Ethernet interfaces for network redundancy.

4. Q: What is the operating voltage range?

   A: 19–30 VDC with 24 VDC nominal power input.

5. Q: Which industrial protocols does the BE42 support?

   A: Modbus TCP/IP, PROFIBUS DP, OPC, and ABB Control Network.

6. Q: Is it compatible with ABB Control Builder?

   A: Yes, it fully supports Control Builder and IEC 61131-3 environments.

7. Q: How is module status indicated?

   A: Through multi-color LED indicators for diagnostics and fault detection.

8. Q: What is its standard power consumption?

   A: Approximately 12 watts during typical operation.

9. Q: Can it be used in environments with high humidity?

   A: Yes, it is designed for up to 95% non-condensing humidity.

10. Q: Does the BE42 support firmware updates over Ethernet?

    A: Yes, remote firmware updating is supported via ABB’s configuration tools.
