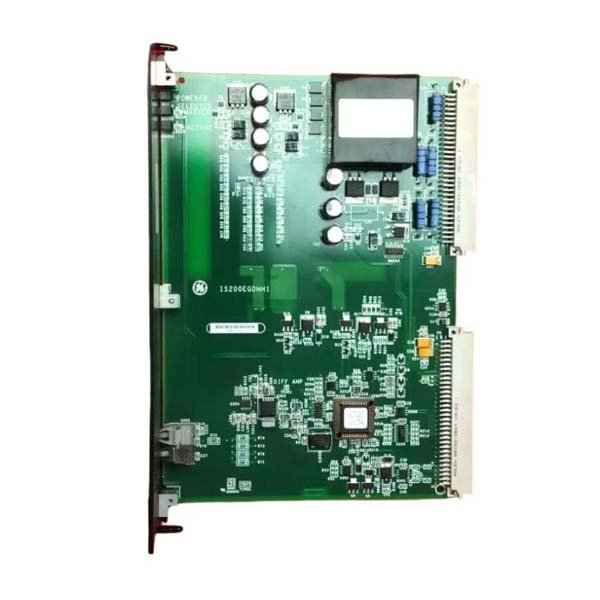

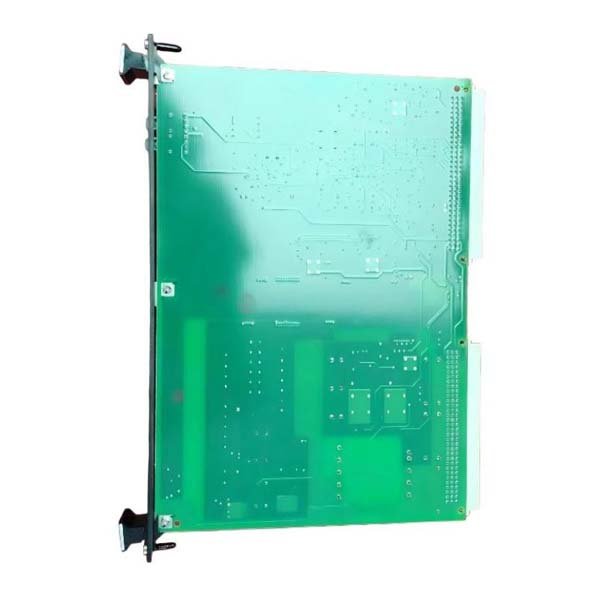

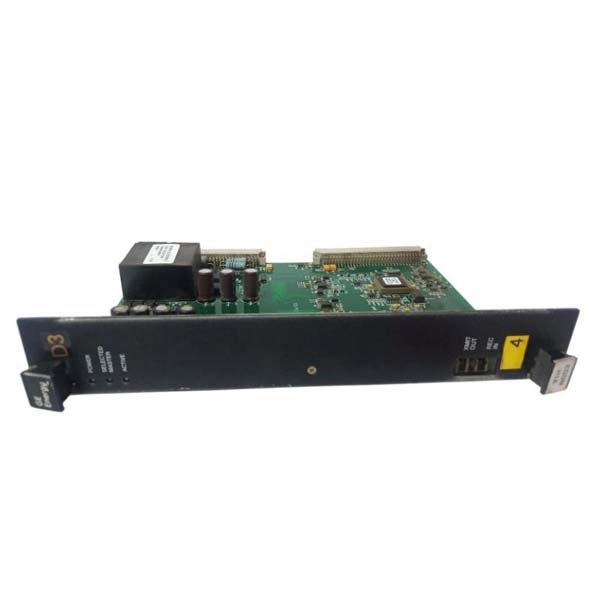

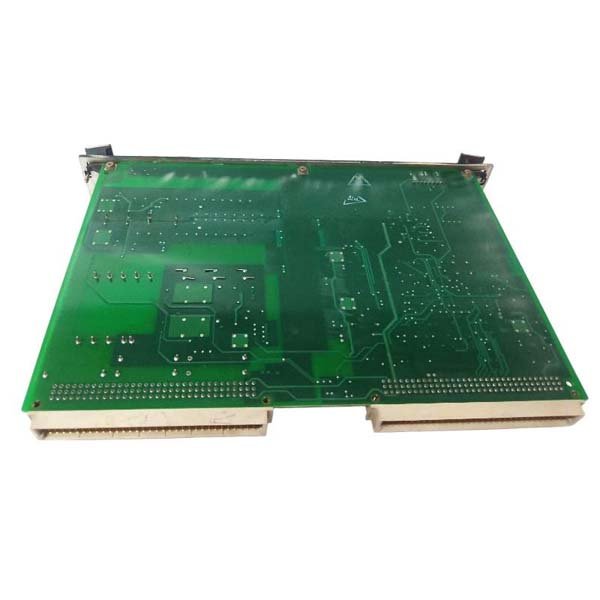

General Electric IS200EGDMH1AFG Ethernet Global Data Module
Manufacturer:GE Fanuc
Product Number:IS200EGDMH1AFG
Product Type:Ethernet Global Data (EGD) Communications Module
Origin:USA
Dimensions:215 mm × 130 mm × 32 mm
Weight:0.58 kg
Views:92
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The IS200EGDMH1AFG is an advanced Ethernet Global Data (EGD) module engineered for GE Mark VI/VIe control platforms. It handles deterministic data exchange across industrial networks, ensuring synchronized controller behavior and stable real-time communication. Built for long-term reliability, the module provides a backbone for time-critical and distributed turbine or generator control applications.
Hardware & Performance Highlights
| Specification | Details |
|---|---|
| Brand | GE |
| Model | IS200EGDMH1AFG |
| Module Type | Ethernet Global Data (EGD) Communications Module |
| System Compatibility | Mark VI / Mark VIe |
| Network Protocol | EGD real-time data broadcast |
| Interfaces | Industrial Ethernet + High-speed backplane |
| PCB Structure | Multilayer board with EMC shielding |
| Dimensions | 215 mm × 130 mm × 32 mm |
| Weight | 0.58 kg |
| Operating Temperature | –20°C to +65°C |
| Cooling | Forced or cabinet passive airflow |
| Mounting | Standard rack-mount module insertion |
Application Scenarios
This module is typically installed in turbine control cabinets where deterministic data refresh is essential. It supports:
-
High-speed controller coordination
-
Generator protection and excitation subsystems
-
Distributed I/O stations needing synchronized data frames
-
Large-scale networked control architectures in power generation
-
Redundant control processors requiring continuous broadcast updates
Due to its deterministic refresh cycle, the IS200EGDMH1AFG is frequently selected for networks where timing accuracy and reliability directly influence equipment safety.
Operational Benefits
The IS200EGDMH1AFG improves communication stability by offloading data handling from the main controller CPU and maintaining strict broadcast intervals. Its reinforced interference protection reduces data corruption, while the optimized hardware revision improves uptime in electrically noisy environments.
The result is a communication link that supports predictable control responses—critical in turbine start-up logic, load control, synchronization, and event coordination.
FAQs
-
What is the primary function of the IS200EGDMH1AFG?
It handles real-time Ethernet Global Data broadcasting within Mark VI/VIe systems.
-
Can it replace a regular Ethernet card?
No—EGDM modules are purpose-built for deterministic EGD communication.
-
Is it compatible with Mark V?
No, it is designed for Mark VI and Mark VIe families.
-
What happens if the module starts failing?
You may see missing EGD frames, synchronization alarms, or erratic data refresh.
-
Does the module require firmware updates?
Only during major system upgrades; routine updates are not typical.
-
Can it be used in a redundant network configuration?
Yes, it supports redundant controllers and parallel communication paths.
-
Is hot-swapping allowed?
No—power must be isolated before removal.
-
Does it offer strong EMI/EMC resistance?
Yes, the board includes enhanced shielding for industrial environments.
-
What’s the typical service life?
Commonly over 10 years under stable cabinet conditions.
-
What should be checked before installation?
Ensure proper grounding, cable shielding, and backplane alignment.
