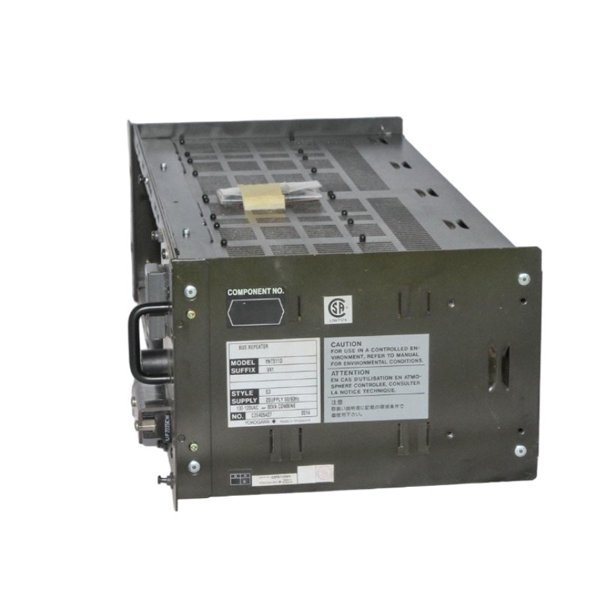

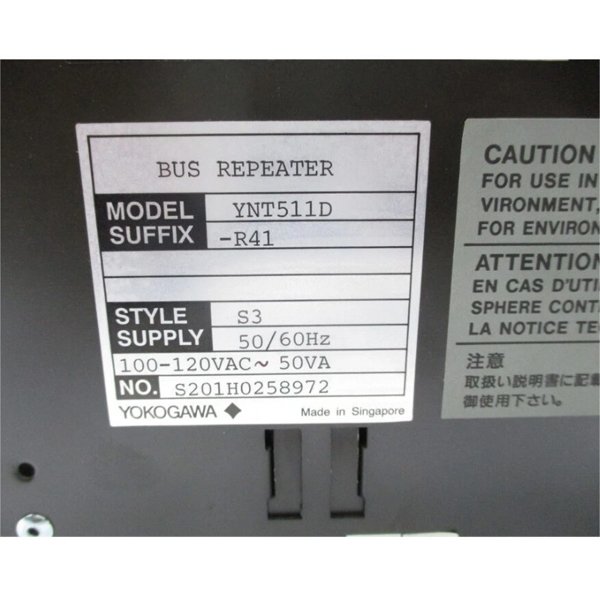

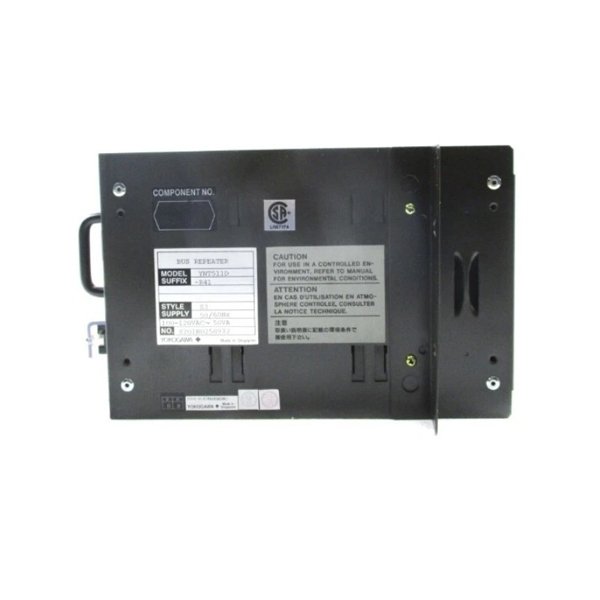

Yokogawa YNT511D-V42 PLC Bus Repeater

The Yokogawa YNT511D-V42 PLC Bus Repeater is a high-performance industrial communication device designed to extend and strengthen signal transmission in PLC (Programmable Logic Controller) networks. It ensures reliable data communication in harsh industrial environments, making it ideal for automation systems, process control, and distributed I/O applications.

This repeater supports various industrial protocols and is compatible with Yokogawa’s PLC systems, providing seamless integration into existing networks. Its rugged construction and high noise immunity make it suitable for demanding industrial settings, including manufacturing plants, oil & gas facilities, and power generation stations.

Product Specifications

Product Applications

The YNT511D-V42 PLC Bus Repeater is widely used in industrial automation and control systems, including:

• Factory Automation: Enhances communication between PLCs, remote I/O modules, and sensors in assembly lines.

• Process Control: Ensures stable signal transmission in chemical plants, refineries, and water treatment facilities.

• Energy Management: Supports distributed control systems in power plants and substations.

• Oil & Gas: Used in offshore platforms and pipelines for reliable data transmission.

• Building Automation: Facilitates communication in HVAC and security systems.

• Transportation Systems: Applied in railway signaling and traffic control networks.

Product Advantages

1. High Reliability: Built with industrial-grade components for long-term operation in harsh conditions.

2. Easy Installation: DIN rail mounting simplifies integration into control cabinets.

3. Extended Communication Range: Boosts signal strength for longer-distance PLC bus communication.

4. Noise Immunity: Designed to minimize electromagnetic interference (EMI) in noisy environments.

5. Wide Compatibility: Works seamlessly with Yokogawa PLC systems and other industrial protocols.

6. Low Power Consumption: Energy-efficient design reduces operational costs.

7. Compact Design: Space-saving form factor ideal for crowded control panels.

Frequently Asked Questions (FAQ)

1. What is the primary function of the YNT511D-V42?

   It acts as a signal repeater to extend the communication range of Yokogawa PLC Bus networks.

2. Can this repeater be used with non-Yokogawa PLC systems?

   It is optimized for Yokogawa PLCs; compatibility with third-party systems may require verification.

3. What is the maximum transmission distance with this repeater?

   Up to 1km, depending on cable type and environmental conditions.

4. Does it require external power?

   Yes, it operates on 24V DC power.

5. Is the device suitable for outdoor use?

   No, it has an IP20 rating and is designed for indoor installation.

6. Can multiple repeaters be daisy-chained?

   Yes, but the total network length and signal integrity must be considered.

7. What is the operating temperature range?

   -10°C to 60°C (14°F to 140°F).

8. How do I troubleshoot communication issues?

   Check power supply, cable connections, and ensure no EMI sources are nearby.

9. Is the repeater hot-swappable?

   No, power should be disconnected before installation or removal.

10. How long is the warranty period?

    The standard warranty is 1 years.
