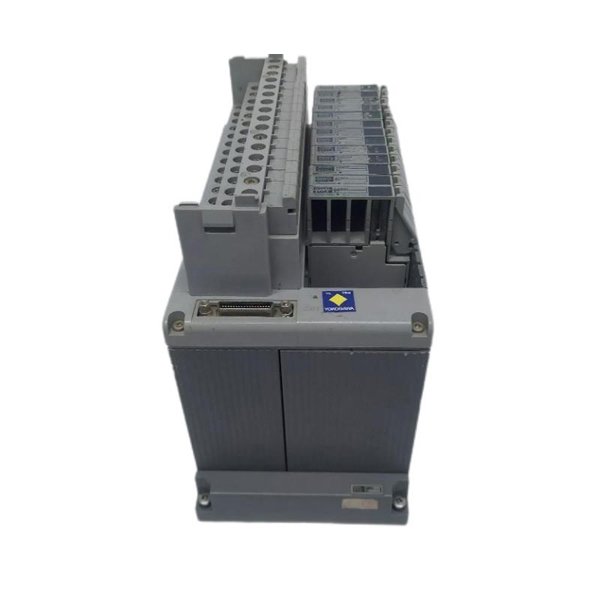

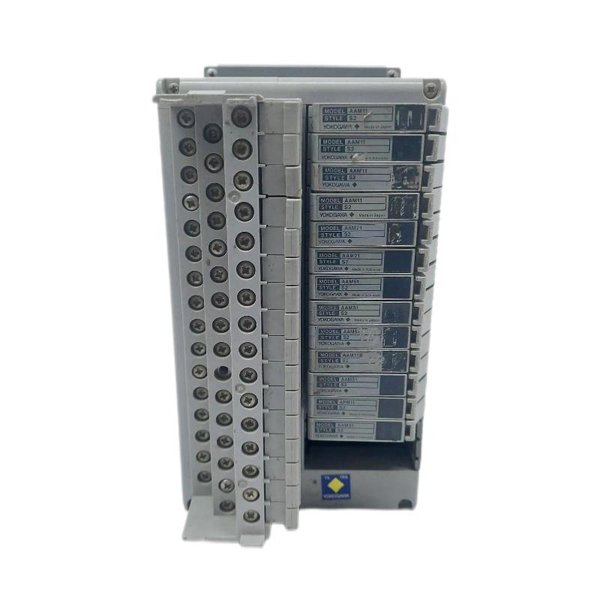

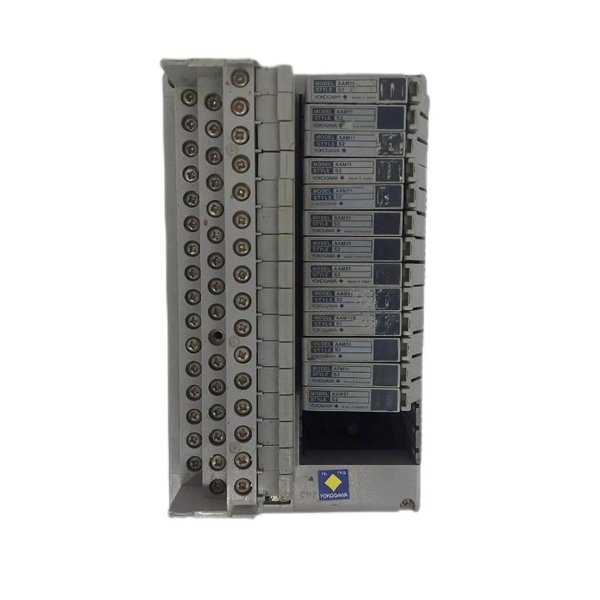

Yokogawa AAM11B Current Voltage Input Module

The Yokogawa AAM11B Current/Voltage Input Module is a high-performance analog input module designed for use in Yokogawa’s CENTUM CS3000 and ProSafe-RS control systems. It plays a pivotal role in acquiring analog signals from field instruments and converting them into digital data for the DCS or SIS (Safety Instrumented System) environment.

As a reliable I/O module within Yokogawa’s renowned automation architecture, the AAM11B supports both current (mA) and voltage (V) signal types, enabling flexible integration across various industrial process inputs. It ensures precise, high-resolution measurements and supports safety-rated operations in critical industries such as oil & gas, chemicals, pharmaceuticals, and power generation.

Product Specifications

Product Applications

The Yokogawa AAM11B module is ideal for use in systems requiring robust, precise analog input processing. Typical applications include:

• Distributed Control Systems (DCS): For continuous monitoring of field instrumentation signals in process industries.

• Safety Instrumented Systems (SIS): Supports high-integrity analog inputs in ProSafe-RS safety systems.

• Oil & Gas Production: Monitors pressure, flow, and level transmitters in upstream and downstream facilities.

• Chemical and Petrochemical Plants: Captures critical process values like temperature and chemical concentration.

• Power Generation: Enables accurate input measurement from turbine sensors and plant instrumentation.

• Pharmaceutical Manufacturing: Ensures reliable input data for batch processes and GMP compliance.

Product Advantages

• Dual-Signal Support (Current and Voltage): Accepts both 4–20 mA and voltage signals, simplifying wiring and improving flexibility.

• High Accuracy and Resolution: Provides 16-bit resolution and tight ±0.1% span accuracy for demanding measurement needs.

• Channel Isolation: Each channel is isolated to prevent signal interference and ensure electrical protection.

• System Integration: Seamlessly integrates with Yokogawa CENTUM CS3000 and ProSafe-RS platforms.

• Compact Design: Saves control cabinet space with its slim footprint and low-profile layout.

• Rugged Performance: Operates reliably in harsh industrial environments with wide temperature and humidity tolerances.

• Regulatory Compliance: Certified to international standards including CE, ATEX, FM, and CSA.

• Minimal Maintenance: Designed for long-term reliability with low failure rates and reduced maintenance intervals.

Frequently Asked Questions (FAQ)

1. What signals does the AAM11B support?

   The module supports both current (4–20 mA) and voltage (1–5 V, 0–10 V) input signals.

2. How many channels are available on the AAM11B?

   It provides 16 isolated analog input channels.

3. Can this module be used in a safety system?

   Yes, it is compatible with ProSafe-RS, Yokogawa’s safety system platform.

4. Is the module hot-swappable?

   No, modules must be powered down before replacement to maintain safety and system integrity.

5. Does it provide signal isolation?

   Yes, each channel is optically isolated from the system and other channels.

6. What DCS systems are compatible with AAM11B?

   It is fully compatible with Yokogawa CENTUM CS3000 and CENTUM VP systems.

7. What is the typical accuracy of the module?

   The AAM11B offers ±0.1% span accuracy.

8. What kind of maintenance does it require?

   Routine checks and periodic calibration verification are generally sufficient.

9. Is this module suitable for hazardous environments?

   Yes, it carries ATEX and FM certifications for hazardous area installations.

10. Can this module be used for high-speed data acquisition?

    While not designed for high-speed data acquisition, it supports a sampling rate suitable for most process automation needs (250 ms/channel).
