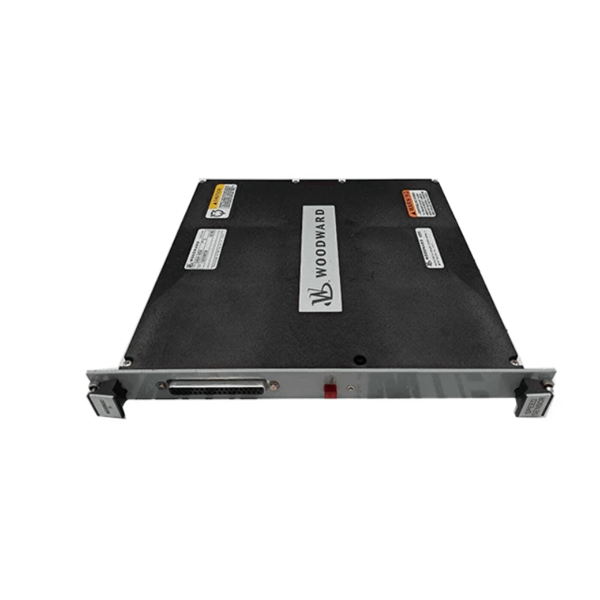

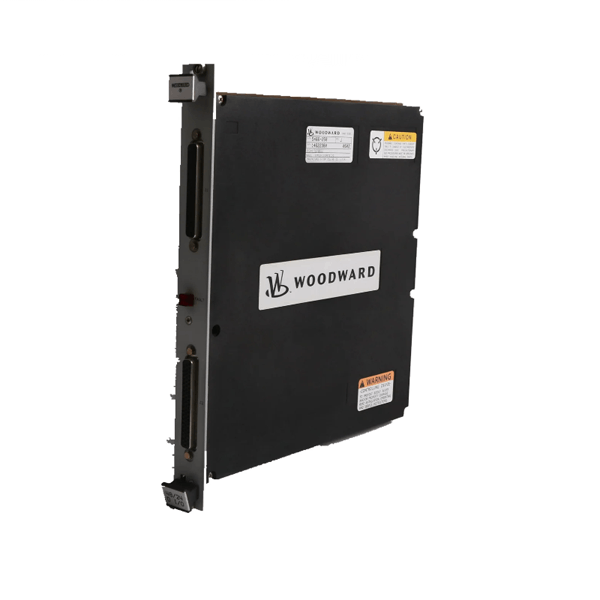

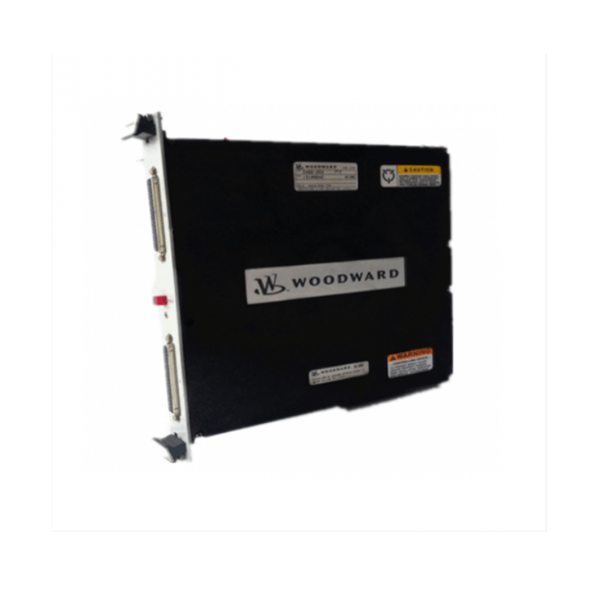

Woodward 5466-258 Discrete I/O Modules

The Woodward 5466-258 is an advanced digital control module designed for critical turbine and engine applications. It is part of the renowned MicroNet™ family of controllers, which are known for their reliable, high-performance processing capabilities and flexible input/output configurations. This module integrates seamlessly into distributed control systems, allowing users to manage and monitor complex industrial processes with precision.

With its rugged construction and high processing efficiency, the 5466-258 is ideal for use in environments requiring dependable control and fault-tolerant operations. It plays a pivotal role in gas, steam, and hydro turbine automation systems where both safety and continuous uptime are paramount.

Product Advantages

• High Reliability: Built to operate in industrial-grade environments, offering stable long-term performance.

• Modular Design: Enables quick integration into existing MicroNet Plus systems and allows for future upgrades.

• Real-Time Processing: Supports deterministic control essential for fast response in turbine and engine operations.

• Diagnostics and Monitoring: Advanced fault detection, event logging, and monitoring functions help ensure high system availability.

• Flexible I/O Support: Compatible with a range of input and output modules to accommodate various control requirements.

• Industry Compliance: Designed according to international safety and automation standards for critical infrastructure.

Technical Specifications

Product Applications

The Woodward 5466-258 is widely used in:

• Gas turbine control systems

• Steam turbine governor systems

• Hydro turbine automation

• Power generation plant instrumentation

• Oil & gas rotating machinery management

• Marine propulsion and auxiliary engine control

• Industrial compressor systems

• Remote turbine monitoring and diagnostics networks

Its robust and flexible nature makes it suitable for both greenfield installations and retrofit upgrades in aging facilities.

Installation Instructions

1. Pre-Check: Ensure system power is disconnected. Verify module part number before installation.

2. Mounting: Secure the module in the designated MicroNet rack slot using manufacturer-approved brackets.

3. Wiring: Connect communication lines (Ethernet/serial), I/O modules, and power supply according to system wiring diagrams.

4. Grounding: Properly ground the module to prevent electrical noise and ensure safe operation.

5. Configuration: Load the appropriate application software via Woodward’s Control Assistant or GAP tool.

6. System Check: Power up the unit and verify status indicators. Perform diagnostic tests to confirm operational readiness.

Frequently Asked Questions (FAQ)

Q1: What is the main function of the Woodward 5466-258?

A1: It serves as a control module in MicroNet systems, enabling precise real-time turbine and engine control.

Q2: Is the 5466-258 compatible with older Woodward MicroNet systems?

A2: Yes, it is designed to maintain backward compatibility within the MicroNet Plus architecture.

Q3: Can the module operate in marine environments?

A3: Yes, it is suitable for harsh environments, including marine, provided proper enclosure and installation practices are followed.

Q4: How is the firmware updated?

A4: Firmware can be updated via Woodward’s Control Assistant software through the Ethernet or serial port.

Q5: Does it support hot-swap installation?

A5: No, power must be turned off before inserting or removing the module to avoid system faults or damage.

Q6: What certifications does the 5466-258 have?

A6: The module is CE, UL, and CSA certified for use in industrial and energy applications.

Q7: Can the module be used for redundant configurations?

A7: Yes, it supports redundant and failover configurations when used with appropriate MicroNet system components.

Q8: What is the expected service life of this module?

A8: With proper maintenance, the service life exceeds 5 years under normal operational conditions.

Q9: Is there software support available?

A9: Yes, Woodward provides full support via Control Assistant, GAP, and HMI solutions.

Q10: How can I tell if the module is faulty?

A10: The status LEDs and system diagnostics provide fault codes and messages to help identify issues.
