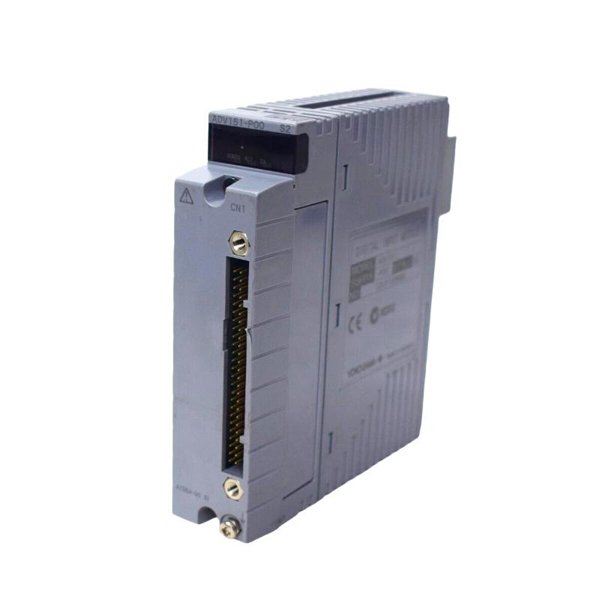

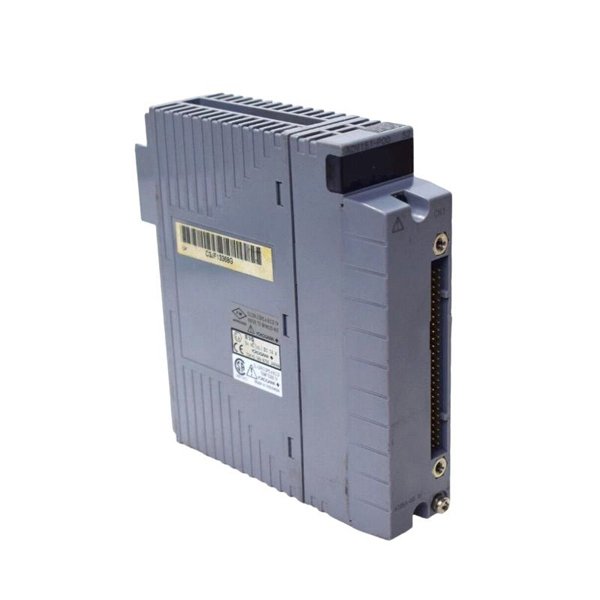

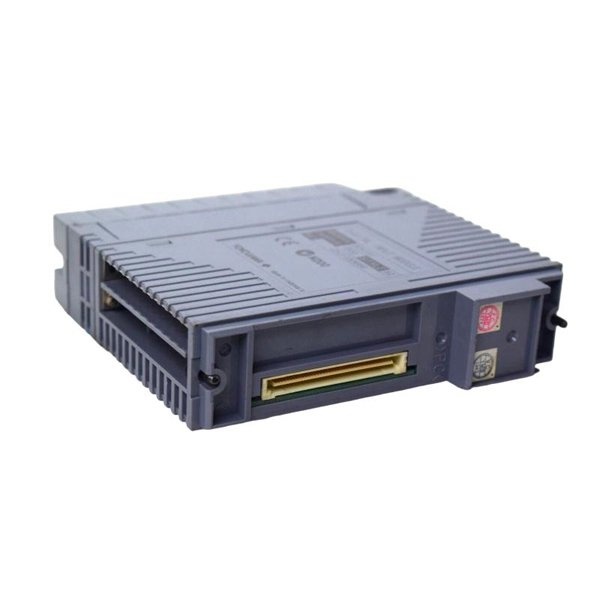

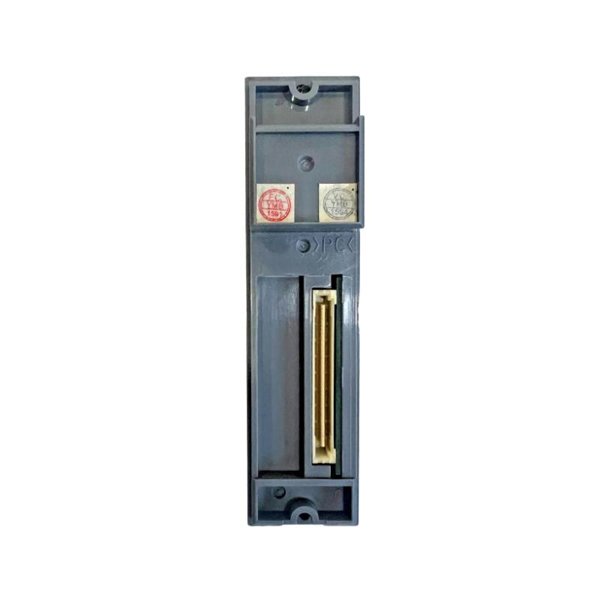

Yokogawa ADV151-H50/D5A00 Digital Input Module

The Yokogawa ADV151-H50/D5A00 Digital Input Module is a critical component designed for use in distributed control systems (DCS) and automation environments. This module specializes in converting discrete field signals into digital data that the control system can process. Engineered with precision, the ADV151-H50/D5A00 offers high reliability and accuracy in signal detection, allowing operators to monitor the status of equipment and field devices effectively. Its robust design ensures stable performance under demanding industrial conditions, making it suitable for various process control applications. This module supports rapid signal scanning and integrates seamlessly with Yokogawa’s control platforms, enhancing overall system responsiveness and safety.

Product Specifications

Applications

The ADV151-H50/D5A00 Digital Input Module finds extensive use across various industrial sectors where monitoring of discrete signals is crucial for process automation and safety control. Common applications include:

• Monitoring status signals from valves, switches, and relays in process plants

• Capturing alarm and trip signals within safety instrumented systems (SIS)

• Supervisory control and status feedback in petrochemical, power generation, and water treatment facilities

• Integration into distributed control systems for real-time equipment status monitoring

• Automation of manufacturing lines where discrete input signals indicate equipment states

• Process control systems requiring fast and reliable detection of binary signals

Advantages

• High Reliability: Designed for stable operation in harsh industrial environments with high noise immunity.

• Fast Response: Typical input response time of 10 milliseconds ensures timely detection of critical signals.

• Wide Compatibility: Supports both dry and wet contact signals as well as transistor inputs for flexible field wiring.

• Robust Isolation: 1500 V galvanic isolation between inputs and system bus protects against electrical disturbances.

• Compact Size: Slim design allows dense installation in control cabinets, optimizing panel space.

• Low Power Consumption: Efficient energy use reduces overall system power requirements.

• Seamless Integration: Fully compatible with Yokogawa control systems for easy configuration and monitoring.

• Diagnostic Capabilities: Supports error detection and fault diagnostics to assist in preventive maintenance.

Frequently Asked Questions (FAQ)

1. What types of input signals does the ADV151-H50/D5A00 accept?

   It accepts dry contact, wet contact, and transistor input signals, allowing flexible connection options.

2. How many discrete input channels are available on this module?

   The module provides 16 digital input channels.

3. What is the typical response time for input signal detection?

   The typical response time is approximately 10 milliseconds.

4. Is there electrical isolation between the input channels and the system bus?

   Yes, there is 1500 V galvanic isolation ensuring electrical protection.

5. Can the module detect both normally open and normally closed contact signals?

   Yes, it can reliably detect both types of contact signals.

6. What is the operating temperature range for this module?

   It operates reliably between -10°C and 55°C.

7. How is the module powered and what is its power consumption?

   The module is powered from the system bus and consumes 2 Watts.

8. Does the module support any diagnostic features?

   Yes, it includes diagnostic functions for signal errors and input faults.

9. Is the module compatible with other Yokogawa control systems?

   Yes, it is designed to integrate seamlessly with Yokogawa DCS platforms.

10. Can the ADV151-H50/D5A00 handle noisy environments?

    Yes, the module has high noise immunity and stable signal detection even in electrically noisy conditions.
