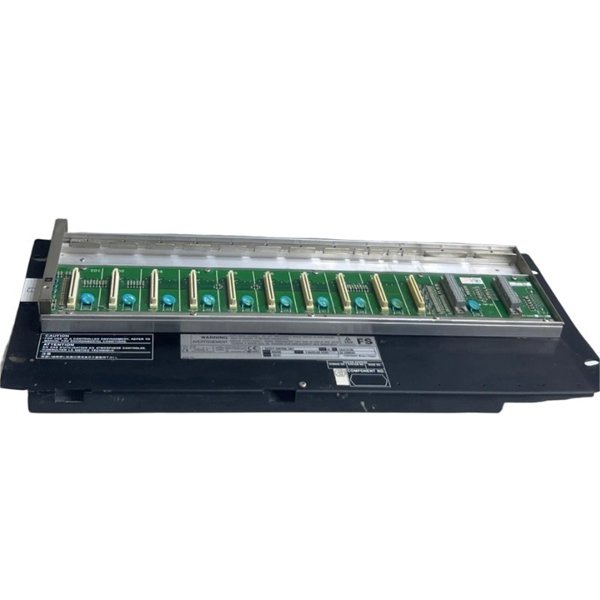

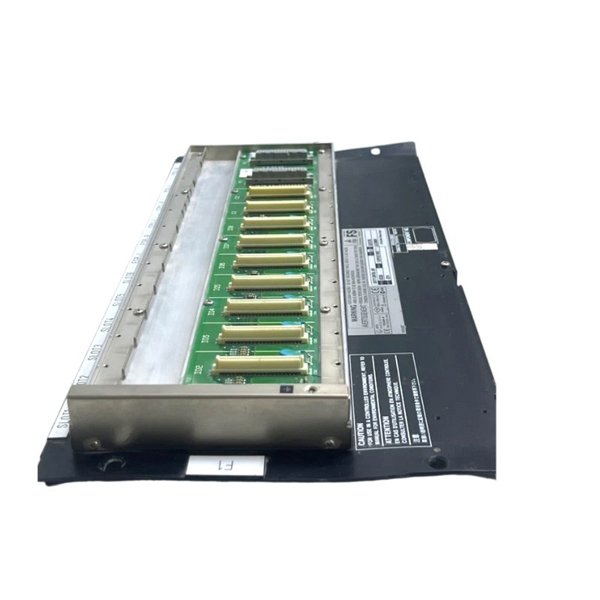

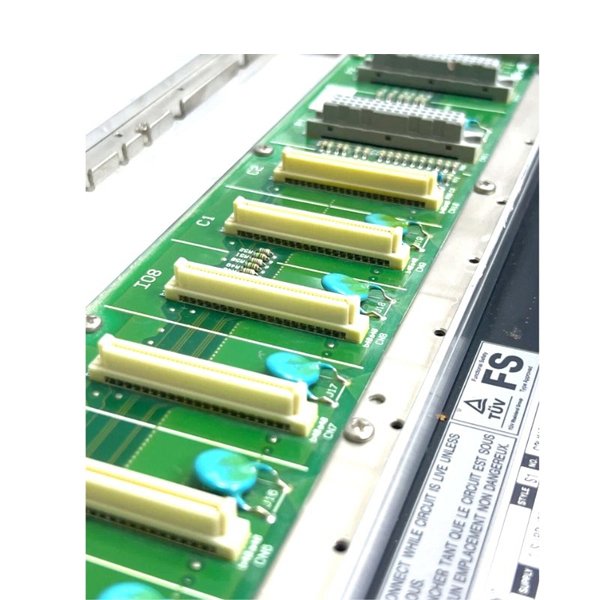

Yokogawa SSC50D-S2524 Duplexed Safety Control Unit

The Yokogawa SSC50D-S2524 Duplexed Safety Control Unit is a high-reliability safety controller designed to ensure secure and uninterrupted operation in industrial automation and process control environments. It belongs to Yokogawa’s well-regarded safety instrumented systems (SIS) family, developed to meet the strict requirements of industries where operational safety and system redundancy are critical.

This duplexed unit integrates advanced fault-tolerant design, enabling continuous monitoring and safe shutdown in the event of hazardous conditions. By employing a dual-processor safety architecture, the SSC50D-S2524 ensures system integrity, minimizes downtime, and complies with international safety standards such as IEC 61508 (SIL3 certification).

It is widely used in oil and gas, petrochemical plants, power generation, and other industries where risk mitigation and safe automation are essential.

Technical Parameters

Product Applications

The SSC50D-S2524 Duplexed Safety Control Unit is engineered for high-demand applications where safety and operational continuity are paramount. Typical application areas include:

• Oil & Gas Industry: Emergency shutdown systems (ESD), fire and gas safety systems.

• Petrochemical Plants: Process safety management, shutdown interlock controls.

• Power Generation: Turbine safety control, boiler protection systems.

• Chemical Plants: Safe handling of hazardous materials and emergency shutdown.

• Pharmaceutical Manufacturing: Process safety for controlled and sterile operations.

• Industrial Automation: Safety redundancy for mission-critical systems.

Product Advantages

• High Safety Certification: Achieves SIL3 compliance for mission-critical safety functions.

• Duplexed Redundancy: Dual processors and duplex communication paths ensure fault tolerance and uninterrupted operation.

• Advanced Diagnostics: Built-in fault detection and automatic switchover minimize downtime.

• Seamless Integration: Designed to integrate with Yokogawa ProSafe-RS safety systems and DCS platforms.

• Scalability: Supports expansion for small to large-scale process safety systems.

• Rugged Design: Withstands harsh industrial conditions with robust environmental tolerance.

• Reduced Operational Risk: Provides reliable emergency shutdown and process safety interlocks.

FAQ

Q1: What safety integrity level does the SSC50D-S2524 support?

A1: It is certified to SIL3 under IEC 61508 standards.

Q2: How does the duplexed architecture improve system reliability?

A2: The dual-processor redundancy ensures that if one processor fails, the secondary processor continues operation without system interruption.

Q3: Can the SSC50D-S2524 communicate with third-party DCS or PLC systems?

A3: Yes, it supports open safety protocols and can integrate via Vnet/IP or standard communication gateways.

Q4: What diagnostic functions are available in the SSC50D-S2524?

A4: It has built-in self-testing, automatic fault detection, redundancy switchover, and real-time fault isolation.

Q5: How is redundancy managed between processors?

A5: Both processors run in parallel with duplexed communication paths, ensuring continuous synchronization and automatic failover.

Q6: Does the SSC50D-S2524 support hot-swappable installation?

A6: Yes, modules can be replaced without shutting down the entire system, supporting hot-swapping within the rack.

Q7: What is the average response time of the safety logic execution?

A7: The typical response time is less than 50 ms, suitable for real-time safety-critical applications.

Q8: How does the system ensure secure communication?

A8: It uses redundant safety communication protocols with error detection and data validation mechanisms.

Q9: Is there protection against voltage fluctuation?

A9: Yes, the unit tolerates input voltage variations within the 18–30 VDC operating range.

Q10: Can the SSC50D-S2524 be used in distributed safety systems?

A10: Yes, it can be deployed in distributed safety architectures connected via redundant Vnet/IP networks.
