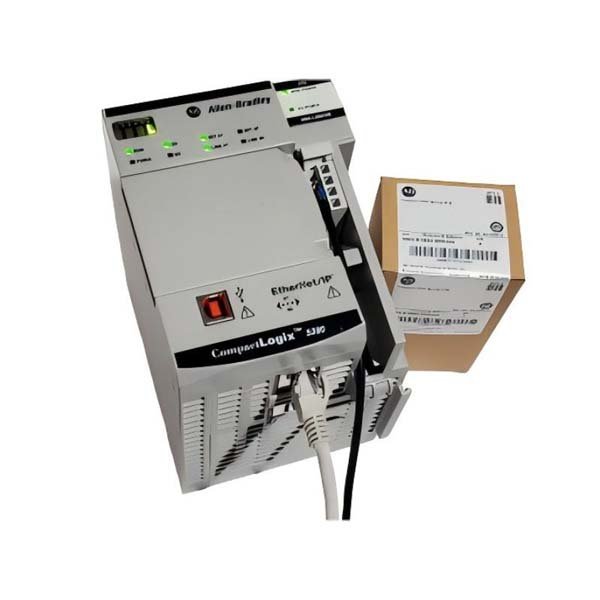

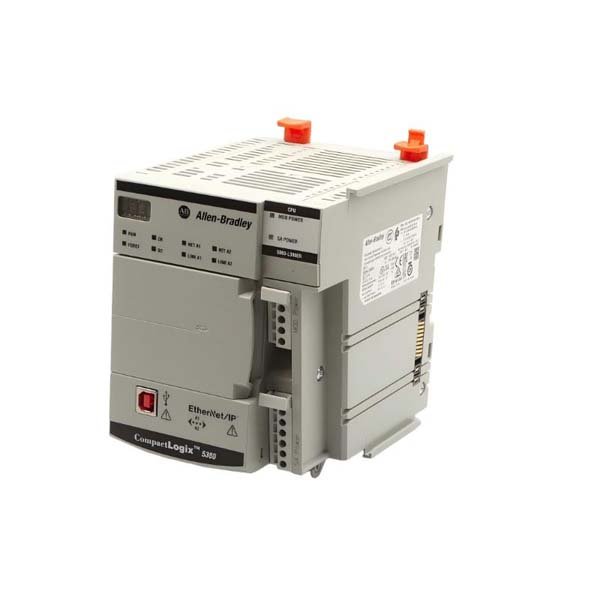

Allen-Bradley 5069-L306ERM CompactLogix 5380 CPU Module
Manufacturer:Allen Bradley
Product Number:5069-L306ERM
Product Type:CompactLogix 5380 CPU Module
Origin:USA
Dimensions:115 mm × 35 mm × 105 mm
Weight:0.28 kg
Views:144
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Allen-Bradley 5069-L306ERM CompactLogix 5380 CPU Module is a high-speed, high-capacity controller designed for complex automation environments where precision, scalability, and connectivity are essential. This module integrates seamlessly within Rockwell Automation’s Logix platform, delivering deterministic control, advanced motion synchronization, and robust EtherNet/IP communication. Its compact design does not compromise performance, offering the power of ControlLogix in a smaller footprint ideal for distributed systems.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Product Type | CompactLogix 5380 CPU Controller | Mid-range programmable logic controller |
| Processor | Dual-core ARM-based | High-performance multi-tasking processor |
| Memory | 3 MB user memory | Supports large and complex projects |
| Local I/O Capacity | Up to 31 local 5069 I/O modules | For modular expansion |
| Communication Ports | 2 × EtherNet/IP (1 Gbps) | Supports DLR and parallel redundancy |
| Motion Control | Up to 16 axes | Integrated with CIP Motion |
| USB Port | 1 × USB 3.0 Type B | For programming and data transfer |
| SD Card Support | Yes, for firmware and project backup | Supports non-volatile storage |
| Task Support | 32 tasks, 100 programs | Enhanced multitasking capabilities |
| Data Access | Integrated web server | For diagnostics and monitoring |
| Programming Software | Studio 5000 Logix Designer | IEC 61131-3 compliant programming |
| Power Supply | 18–32 VDC | Internal DC input |
| Operating Temperature | 0 °C to +60 °C | Industrial range |
| Storage Temperature | -40 °C to +85 °C | Long-term stability |
| Humidity | 5% – 95% non-condensing | Industrial tolerance |
| Dimensions (H × W × D) | 115 mm × 35 mm × 105 mm (4.53″ × 1.38″ × 4.13″) | Compact industrial design |
| Weight | 0.28 kg (0.62 lb) | Lightweight for panel integration |
Where It Excels in the Field
-
High-Performance Machine Control: Handles fast, synchronized motion applications such as robotics, packaging, and precision assembly.
-
Smart Manufacturing: Integrates with FactoryTalk for IIoT data exchange and predictive analytics.
-
Distributed Control Systems: Ideal for segmented production lines with local intelligence.
-
Safety and Redundancy Systems: Compatible with GuardLogix safety architectures and PRP/DRP redundancy.
-
SCADA and MES Integration: Real-time data handling for modern smart factories.
Distinct Competitive Advantages
-
Next-Generation Performance: 20x faster scan rates than CompactLogix 5370 controllers.
-
Built-In Gigabit Ethernet: Enhances real-time control communication and data flow.
-
Flexible Motion Architecture: CIP Motion support for up to 16 servo axes.
-
Integrated Security: Includes controller-level encryption, role-based access, and digital signatures.
-
Compact Form Factor: Reduces cabinet space while maintaining industrial durability.
-
Simplified Maintenance: Removable SD card and USB port for easy updates and backups.
-
Enhanced Connectivity: Dual Ethernet ports allow network segmentation without switches.
-
Future-Proof Platform: Part of Rockwell’s Logix 5000 ecosystem with continuous firmware updates.
-
Real-Time Diagnostics: Onboard web server and status LEDs minimize downtime.
-
Universal Application Support: Suitable for discrete, process, and hybrid automation systems.
FAQs
-
Q: How many local I/O modules can the 5069-L306ERM support?
A: It can support up to 31 local 5069 Compact I/O modules.
-
Q: Does it support integrated motion control?
A: Yes, it supports up to 16 axes using CIP Motion.
-
Q: What is the maximum Ethernet data rate?
A: 1 Gbps on both Ethernet ports.
-
Q: Can it run multiple tasks simultaneously?
A: Yes, it supports up to 32 tasks and 100 programs.
-
Q: Is it compatible with older Compact I/O modules?
A: Yes, with 5069 series and some 1769 I/O via adapter.
-
Q: Does it include non-volatile memory?
A: Yes, through an SD card for project and firmware backup.
-
Q: What software is used to program the controller?
A: Studio 5000 Logix Designer.
-
Q: Can this controller be part of a redundant network?
A: Yes, it supports DLR (Device Level Ring) and PRP networks.
-
Q: What’s the power consumption range?
A: Operates within 18–32 VDC power supply.
-
Q: Is cybersecurity integrated into the controller?
A: Yes, it includes user authentication, digital signing, and secure firmware.
