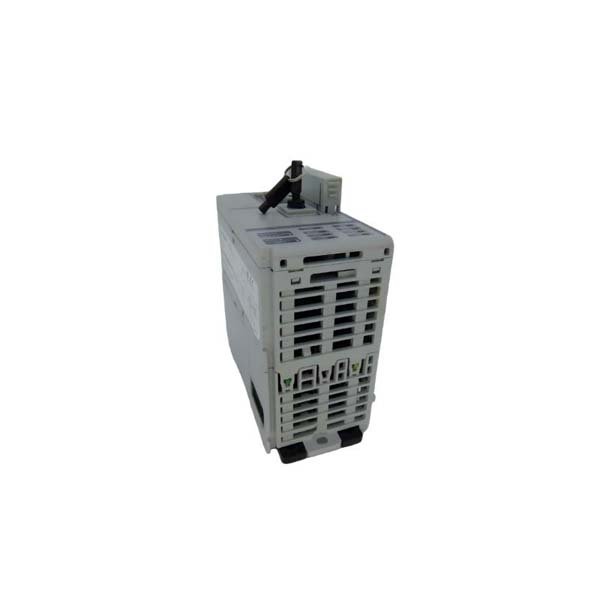

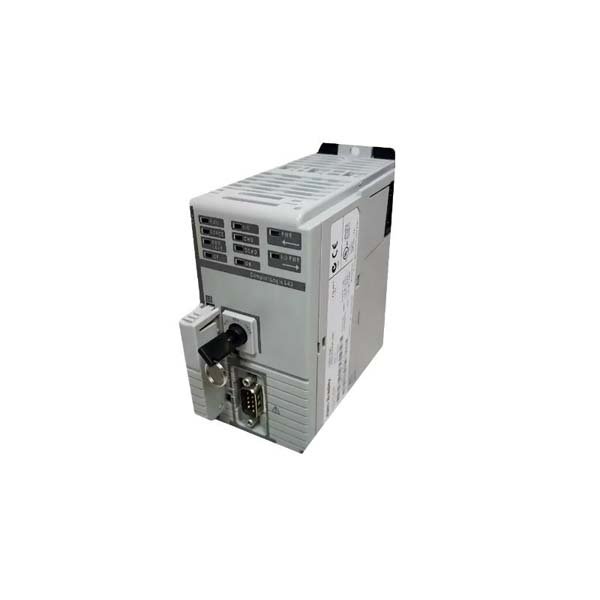

Allen-Bradley 1768-L43 CompactLogix Controller

The Allen-Bradley 1768-L43 is a CompactLogix L43 processor module designed to deliver high-speed performance, flexible communication, and motion control capabilities within mid-sized automation systems. This controller integrates 1768-series communication modules and 1769 I/O modules, providing a scalable architecture suitable for both standalone machines and distributed control networks.

Engineered for applications that demand precision, speed, and modularity, the 1768-L43 serves as a powerful bridge between CompactLogix and ControlLogix platforms, supporting motion, safety, and network integration in a single control environment.

Technical Specifications

Applications

The 1768-L43 CompactLogix controller is tailored for applications requiring high-speed control, motion coordination, and flexible network communication. Common use cases include:

• Motion Control Systems – Ideal for packaging, printing, and assembly lines requiring multi-axis synchronization.

• Machine Automation – Handles complex sequencing, interlocks, and real-time feedback for discrete machines.

• Material Handling Systems – Coordinates conveyors, sensors, and actuators across Ethernet networks.

• Process Control – Manages analog I/O for batch or continuous process systems.

• OEM Equipment Integration – Offers compact design and open communication protocols for easy machine integration.

• SCADA Integration – Communicates directly with HMIs, data loggers, and SCADA systems via EtherNet/IP.

Advantages

• High-Speed Logic and Motion Control: Executes logic in sub-millisecond intervals and integrates up to 4 motion axes.

• Dual-Bus Architecture: Supports 1768 and 1769 modules simultaneously for flexible I/O and communication expansion.

• Open Communication: EtherNet/IP and serial ports allow integration with third-party devices and remote systems.

• Compact Modular Design: Small footprint saves panel space while maintaining expandability.

• Data Security and Backup: Optional CompactFlash card enables program storage and easy replacement.

• Advanced Programming: Compatible with Studio 5000 for structured programming, tag-based addressing, and diagnostics.

• Energy Efficient: Low power consumption with wide operating voltage and thermal tolerance.

• Seamless Integration: Part of Rockwell Automation’s Logix architecture for unified control solutions.

FAQs

1. Q: What is the primary difference between 1768-L43 and 1768-L45?

   A: The 1768-L45 offers larger memory (3 MB) and higher performance for more complex applications.

2. Q: Can I connect both 1768 and 1769 modules to the L43 controller?

   A: Yes, it supports both module families through its dual-bus backplane design.

3. Q: Is the 1768-L43 capable of motion control?

   A: Yes, it supports coordinated motion control for up to 4 axes when using 1768 motion modules.

4. Q: Which programming software is used?

   A: The controller is programmed using RSLogix 5000 or Studio 5000 Logix Designer.

5. Q: Does it support Ethernet/IP for remote I/O communication?

   A: Yes, the Ethernet port provides full EtherNet/IP communication capabilities.

6. Q: Can it operate with redundancy or hot standby configurations?

   A: No, redundancy is not supported on CompactLogix controllers; use ControlLogix for that.

7. Q: How many I/O modules can be connected locally?

   A: Up to 16 Compact I/O modules can be connected in a local chassis configuration.

8. Q: Does the controller support online editing?

   A: Yes, online edits are supported in RSLogix/Studio 5000 without stopping the controller.

9. Q: What type of CompactFlash card is compatible?

   A: The controller supports 1784-CF64 or similar Rockwell-approved CompactFlash cards.

10. Q: Is there built-in USB programming capability?

    A: Yes, the USB port can be used for programming and controller maintenance.
