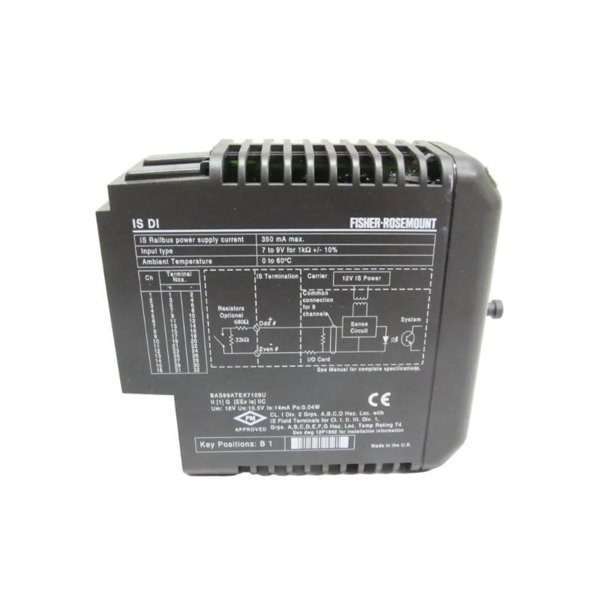

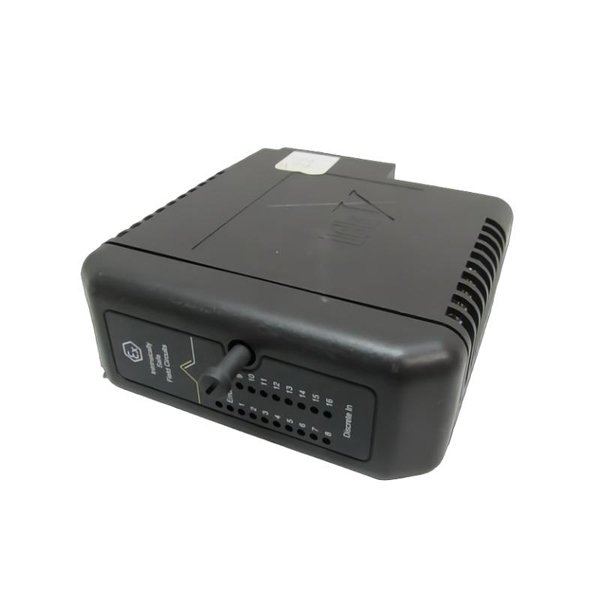

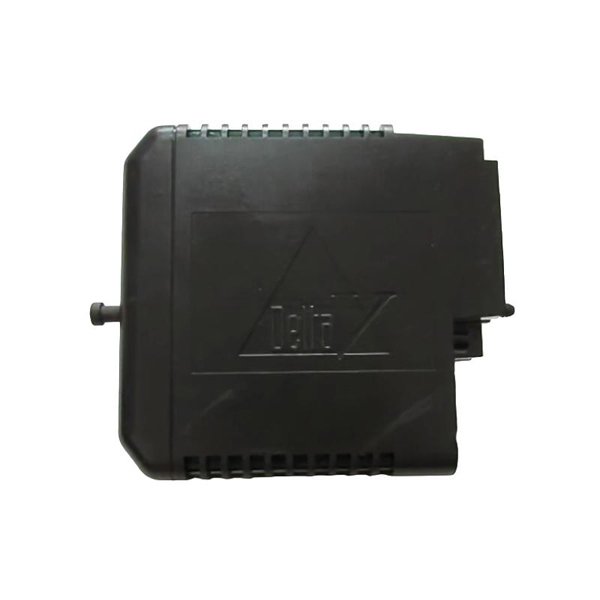

Emerson VE4010B1 KJ3101X1-BB1 12P1866X042 IS DI Module

Emerson’s VE4010B1 KJ3101X1-BB1 12P1866X042 IS DI module is an intrinsically safe digital input module designed for integration with Emerson’s DeltaV and Ovation distributed control systems (DCS). This module is designed to acquire digital signals from field devices in hazardous environments, ensuring safe and reliable data acquisition that complies with intrinsic safety standards.

The VE4010B1 module features multiple input channels, providing high-density digital signal integration for a wide range of industrial applications. It is optimized for hazardous areas where explosion risks exist, such as oil and gas, petrochemical, and power generation facilities. Its rugged design offers electrical isolation, high noise immunity, and seamless communication with control systems, making it an ideal choice for mission-critical operations.

The KJ3101X1-BB1 supports fast input response times, ensuring that critical events and process changes are detected and transmitted accurately to the DCS. Its modular, rack-mounted construction simplifies installation, maintenance, and hot-swapping, reducing downtime and improving overall system availability.

Product Specifications

Applications

• Hazardous Area Automation: Safely collects digital input signals from field devices in explosive environments.

• Distributed Control Systems: Integrates with Emerson DeltaV and Ovation DCS for seamless digital signal processing.

• Oil & Gas Industry: Provides reliable input acquisition for upstream and downstream control systems.

• Chemical and Petrochemical Plants: Ensures safe signal handling in volatile process areas.

• Power Generation: Monitors digital signals from turbine auxiliary systems and safety devices.

• Industrial Safety Systems: Captures critical inputs for emergency shutdown and safety interlock systems.

Product Advantages

• Intrinsic Safety: Fully compliant with IS standards for hazardous area installations.

• Fast Response Time: Ensures timely detection of digital events for critical control applications.

• High Noise Immunity: Maintains signal integrity in electrically harsh industrial environments.

• Robust Electrical Isolation: Protects the control system and field devices from electrical faults.

• Seamless Integration: Fully compatible with Emerson DeltaV and Ovation platforms.

• Hot-Swappable: Allows replacement without shutting down the system, minimizing downtime.

• Compact Modular Design: Saves cabinet space while providing high-density input channel integration.

FAQ

1. What is the primary function of the VE4010B1 KJ3101X1-BB1 IS DI Module?

   It captures intrinsically safe digital signals from field devices in hazardous areas and transmits them to the DCS.

2. Is this module compatible with Emerson’s DeltaV system?

   Yes, it is fully compatible with DeltaV and Ovation distributed control systems.

3. What types of digital inputs are supported?

   It supports dry contacts and voltage-driven digital signals.

4. Is this module Intrinsically Safe?

   Yes, it is certified Intrinsically Safe (IS) for use in hazardous areas.

5. How many channels does this module support?

   Depending on the configuration, it supports multiple digital input channels.

6. Does this module provide channel isolation?

   Yes, it provides channel-to-channel isolation and channel-to-ground isolation for enhanced safety.

7. Can it operate in an electrically noisy environment?

   Yes, it has high noise immunity and can operate stably under harsh industrial conditions.

8. Is the VE4010B1 suitable for emergency shutdown systems?

   Yes, it is designed for mission-critical safety and emergency shutdown applications.

9. Is the module hot-swappable?

   Yes, it can be replaced without shutting down the control system.

10. What types of field devices can it connect to?

    It can connect to digital sensors, switches, and other discrete input devices in hazardous areas.
