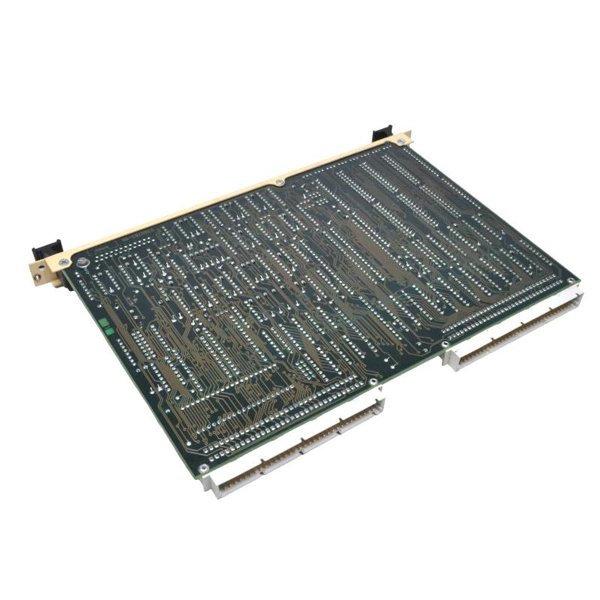

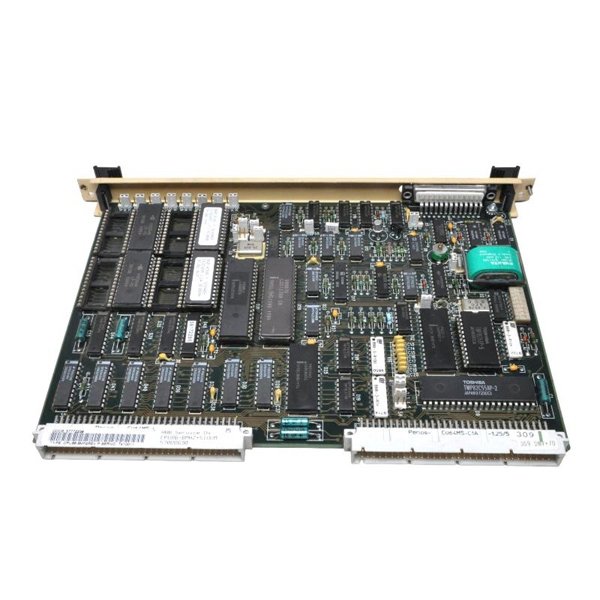

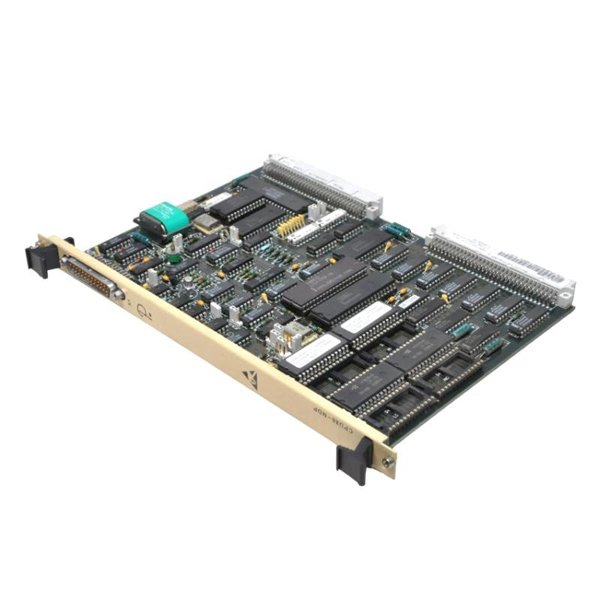

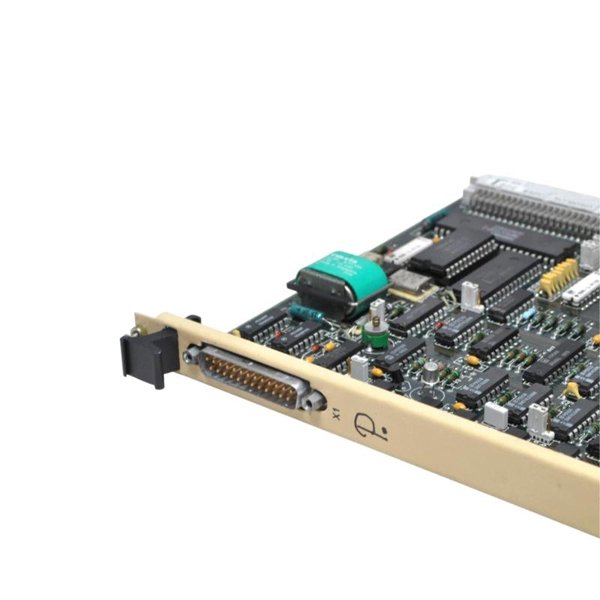

ABB CPU86-NDP 57088630 Processor Module

The ABB CPU86-NDP Processor Module (Part No. 57088630) is a central control unit designed for the ABB Advant Controller 400 (AC400) series, a platform widely used in process automation systems around the globe. This module executes control logic, manages communications between input/output units, and enables real-time process control in distributed control systems (DCS).

Built around a reliable RISC architecture, the CPU86-NDP is engineered to handle large-scale, mission-critical applications that demand stable operation, long lifecycle, and network communication through ABB’s proprietary NDP (Network Data Protocol). Whether it’s oil and gas, chemical plants, utilities, or water treatment facilities, this processor module delivers precision, integration capability, and operational continuity.

Thanks to its proven performance and compatibility with legacy systems, the CPU86-NDP remains a key asset in maintaining and upgrading installed ABB AC400 systems.

Product Specifications

Product Applications

• Distributed Control Systems (DCS): Acts as the core controller in ABB’s AC400-based DCS installations, performing key logic and control tasks.

• Power Generation & Utilities: Widely used for boiler management, turbine control, and substation automation.

• Oil and Gas Facilities: Supports process control in refineries, pipelines, and offshore platforms.

• Chemical and Pharmaceutical Plants: Enables batch control, real-time monitoring, and safety interlocks.

• Water and Wastewater Management: Controls valves, sensors, and treatment processes in public utilities.

• Industrial Legacy System Support: Ideal for clients maintaining or upgrading existing ABB Advant installations with minimal disruption.

Product Advantages

• High System Reliability: Designed for non-stop industrial environments with minimal downtime.

• Proven Performance: Based on a stable, time-tested 32-bit RISC processor architecture.

• Efficient Communication: Uses ABB’s Network Data Protocol (NDP) for real-time and deterministic data exchange between nodes.

• Long-Term Availability: Continues to be supported by ABB’s lifecycle management programs.

• Seamless System Integration: Fully compatible with existing AC400 hardware, I/O modules, and engineering tools.

• Industrial Durability: Operates effectively in high-vibration, high-temperature environments.

• Memory Protection: Equipped with a backup battery to retain volatile memory during outages.

• Centralized Control Capabilities: Manages large-scale distributed applications from a single CPU node.

• Structured Programming Support: Configurable via ABB’s legacy engineering tools such as DOX 10 or Control Builder.

• LED Diagnostics: On-board LED indicators assist with fast status checks and troubleshooting.

Frequently Asked Questions (FAQ)

1. Q: Is the CPU86-NDP still in active production by ABB?

   A: No, it is currently in the lifecycle support phase, but ABB continues to offer repair services and spare part availability for existing installations.

2. Q: Can I use CPU86-NDP as a drop-in replacement for CPU85-NDP?

   A: Yes, in most AC400 configurations, the CPU86-NDP is fully backward compatible with CPU85-NDP. However, firmware alignment may be required.

3. Q: What type of memory is used for program storage?

   A: It uses flash memory for program storage and RAM for runtime data. A battery maintains RAM contents during power loss.

4. Q: How do I know if the module is functioning correctly?

   A: The front panel provides LED indicators for power, CPU status, and communication errors. ABB engineering tools also offer live diagnostics.

5. Q: What communication interface does the CPU86-NDP primarily use?

   A: It communicates through the NDP interface, which connects to other CPUs, I/O modules, and communication units in the system.

6. Q: What engineering tools are compatible with CPU86-NDP?

   A: ABB recommends using DOX 10, Control Builder, or other AC400 family configuration tools, depending on system version.

7. Q: Can the CPU86-NDP operate in a redundant configuration?

   A: Yes, it supports dual-redundant CPU configurations using appropriate switching modules (e.g., SD812).

8. Q: What happens if the NDP link is lost during operation?

   A: The system will enter communication fault mode, triggering alarms or predefined fallback logic, depending on programming.

9. Q: How is the firmware version checked or updated?

   A: Firmware versions are viewed through ABB engineering tools. Updates are performed via service personnel using specialized tools.

10. Q: Is there a way to extend communication to Ethernet or Modbus?

    A: Yes. Use interface modules like CI856 or protocol gateways to connect the CPU86-NDP system to external Ethernet or fieldbus networks.
