ABB PFEA111-65 3BSE050090R65 Tension Electronics

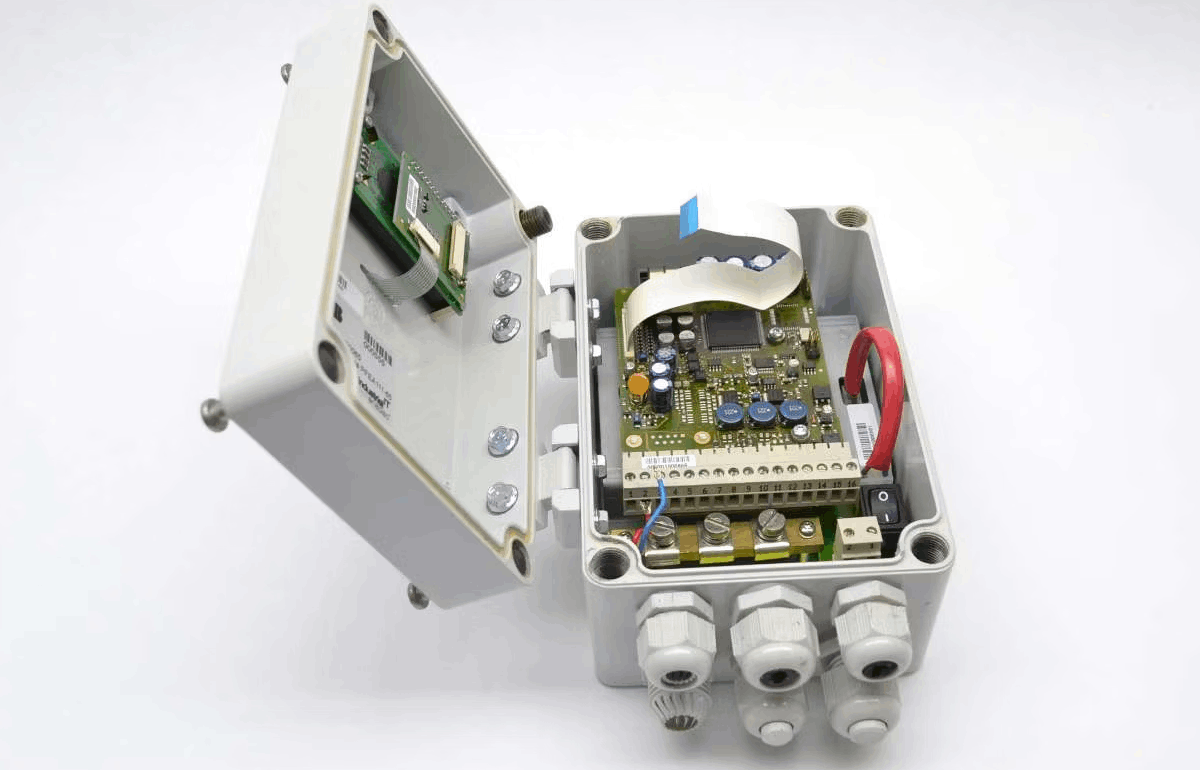

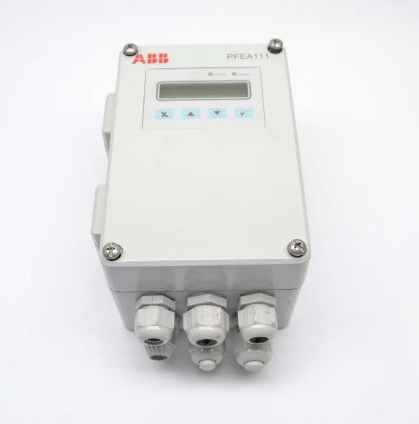

ABB PFEA111-65 3BSE050090R65 Tension Electronics is an electronic unit for tension measurement, usually used in conjunction with a load cell. The device is installed in a metal housing and supports wall mounting. The device does not contain user-serviceable parts and any form of disassembly is prohibited. PFEA111-65 supports a variety of load cells, and the wiring needs to be configured according to the corresponding diagram in the appendix (B, C, D, E, F or G).

Function & Features

1. Installation and mechanics

• For wall-mounted metal enclosures, ensure that there is enough space to open the enclosure cover and reserve operating space at the installation location.
• Cable glands are standard (5 for PFEA111-65 and 6 for PFEA112) to facilitate cable entry.
• The diameter of the mounting screws is ≥5 mm, the screw spacing is ≤100 mm, and star-shaped washers are used to enhance contact.

2. Wiring requirements

• Single-core hard wires are prohibited, and stranded wires must be used, and pins cannot be crimped.
• All shielding layers must be connected to the grounding bar, with a connection length of <50 mm (2 in).
• Single-ended grounding principle (grounding only one end) to avoid ground loop interference.

Specifications

FAQ

Q: What is the brand?

A:  ABB

Q: What is the type?

A:  Tension Electronics

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T
