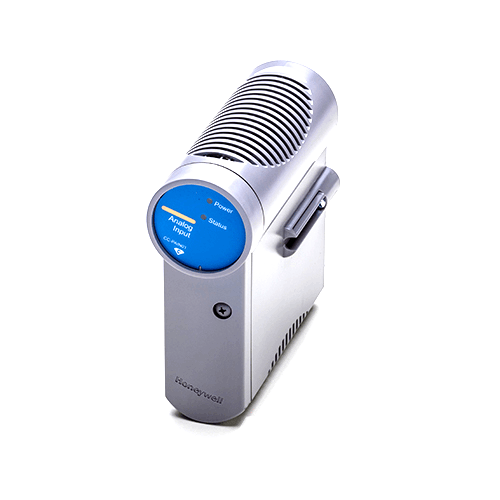

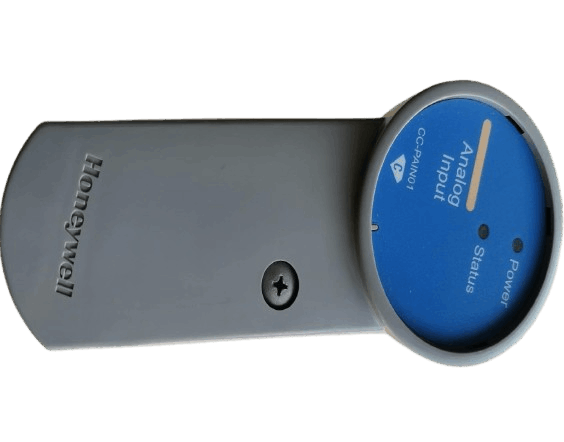

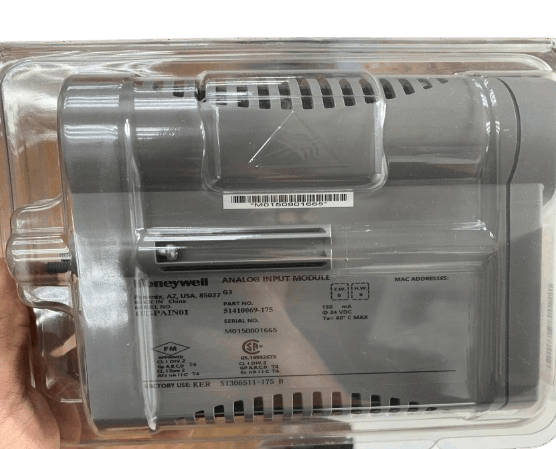

Honeywell CC-PAIN01 High-Level Analog Input Module
Item Number:CC-PAIN01
Brand:Honeywell
Lead Time: In stock
Description:High-Level Analog Input Module
Payment: T/T
Product Description
Honeywell CC-PAIN01 is an advanced analog input module for industrial automation. It can receive 4 - 20 mA current input signals from field devices such as sensors.
It has many advantages: it uses a non-incendive power supply, which is suitable for hazardous environments (Class 1 Zone 2), can be directly connected to the 4 - 20 mA loop without external wiring, and protects the field circuit;
it has a fast input scanning rate of 50 milliseconds to meet the needs of fast-changing industrial applications; the non-incendive power supply provides protection for each input loop, and no additional fuses or external components are required to ensure safe interaction with field transmitters.
Fuctions & Features
- Non-incendive power supply: The Honeywell CC-PAIN01 module is a non-incendive power supply designed for hazardous environments (Class 1, Division 2) that can be directly connected to a 4-20 mA loop without external wiring while protecting field circuits from electrical faults.
- Fast loop scanning: The Honeywell CC-PAIN01 has a fast input scanning rate (50 milliseconds) for fast-changing industrial applications.
- Power supply protection: The non-incendive power supply has protection features for each input loop, and the Honeywell CC-PAIN01 ensures safe interaction with field transmitters without the need for additional fuses or external components.
Specification
| Parameter | Specification |
|---|---|
| Input Type | Supports current inputs, typically from 2-wire or self-powered transmitters. |
| Number of Input Channels | 16 input channels, supporting single-ended connections for versatile configurations. |
| Common Mode Rejection Ratio (CMRR) | 70 dB (DC to 60 Hz, 500 Ω source unbalance), ensuring high immunity to common mode noise. |
| A/D Converter Resolution | 16-bit A/D converter, ensuring high-precision digitization of analog signals. |
| Input Range | Supports a typical 4-20 mA input range, converted via a 200 Ω resistor. |
| Accuracy |
- ±0.075% of full scale (at 23.5°C ± 2°C, ideal conditions).
- ±0.15% of full scale (over 0°C to 60°C temperature range). |
| Normal Mode Rejection Ratio (NMRR) | 20 dB at 60 Hz, effectively suppressing external electrical noise (e.g., AC power line interference). |
| Normal Mode Filter Response | Single-pole RC filter with a cutoff frequency of 6 Hz (-3 dB), reducing high-frequency noise. |
| Maximum Normal Mode Input Voltage | ±30 volts, providing overvoltage protection. |
| Channel-to-Channel Crosstalk | -60 dB (DC to 60 Hz), preventing signal interference between adjacent channels. |
| Input Scan Rate | Scans inputs every 50 milliseconds, enabling real-time data acquisition. |
Appilications
- Applicable to flammable and explosive environments: Honeywell CC-PAIN01 Module complies with Class 1, Division 2 standards, such as oil tank areas and chemical workshops in refineries. The spark-free power supply of CC-PAIN01 module can receive sensor signals to monitor the concentration of flammable and toxic gases and promptly detect safety hazards such as leaks.
- Monitoring of sewage treatment process: In sewage treatment plants, CC-PAIN01 module can be used to monitor parameters such as sewage flow, pH value, dissolved oxygen, chemical oxygen demand (COD), and the operating status of sewage treatment equipment, such as pump pressure and liquid level.
