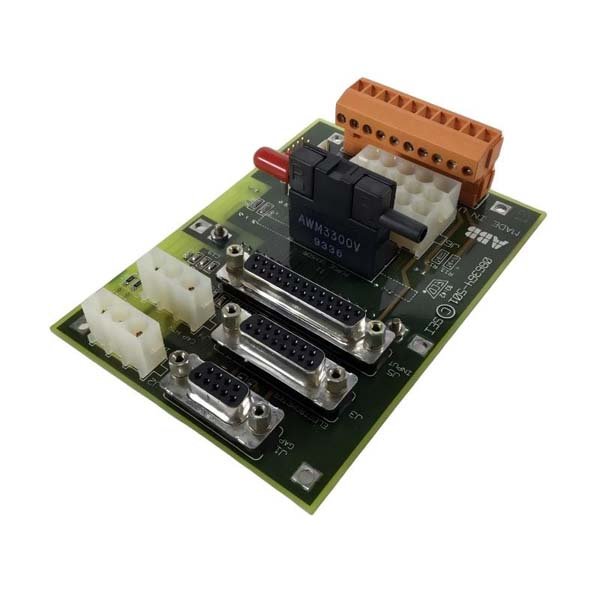

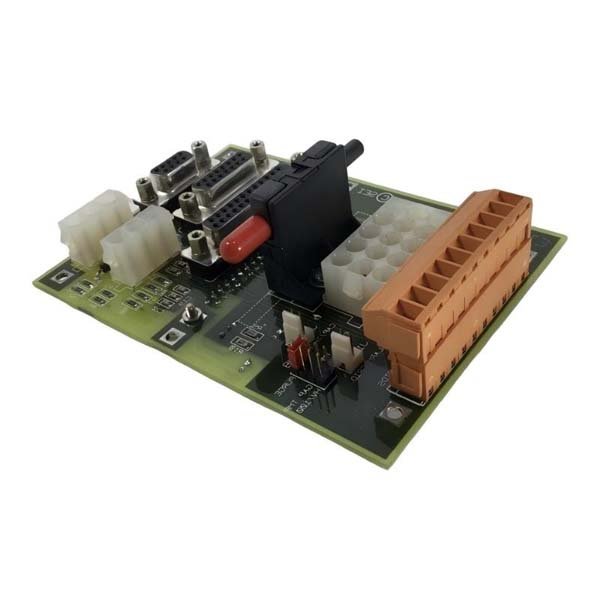

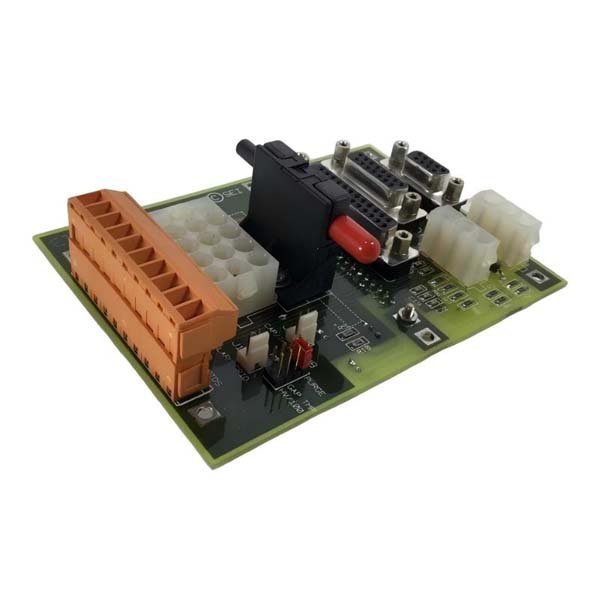

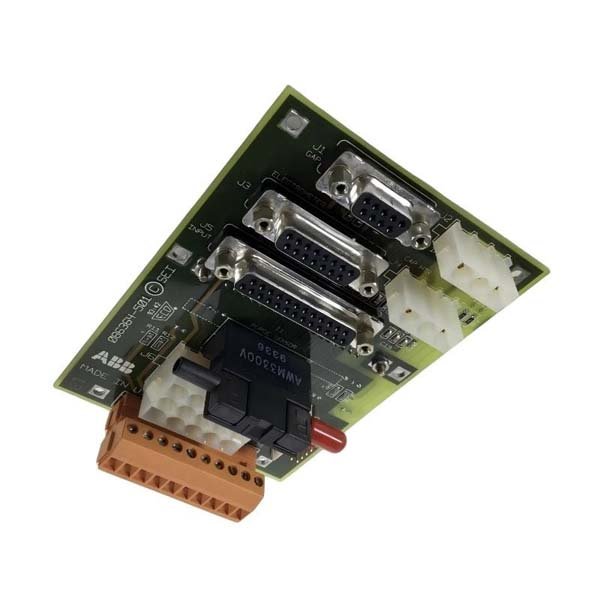

ABB 086364-001 Communication Module

In plants where multiple subsystems need to exchange data without delay, the ABB 086364-001 serves as a steady link inside the automation network. Instead of focusing on sheer speed alone, this module is engineered to keep communication predictable—something operators value when the process cannot be interrupted for tuning or constant resets. Many engineers use it when expanding existing ABB control cabinets because the module fits neatly into the system rack and immediately adopts the communication rules of the host controller.

Technical Information at a Glance

Where It Is Typically Used

The 086364-001 frequently appears in projects where an existing ABB system needs extra communication channels—chemical plants, paper mills, utilities, and long-running production lines. It is also a common sight in migration work, where the goal is to introduce modern communication behavior without rewiring entire cabinets. Integrators value it because it behaves predictably even when the network grows in complexity.

Why Engineers Prefer This Module

• It integrates smoothly into ABB’s established system environment, reducing setup time.

• The diagnostic LEDs provide clear insight into network behavior, which shortens troubleshooting.

• It tolerates demanding operating conditions with minimal performance drift.

• Its design allows expansion of communication capacity without altering the controller’s main configuration.

• The module helps maintain process stability by ensuring consistent data flow between distributed components.

FAQs(10)

1. Does the 086364-001 support redundant installations?

   Yes, it functions within redundancy-capable ABB architectures.

2. Is external wiring required for power?

   No, all powering is done through the rack backplane.

3. How does the module report communication faults?

   Via LED indicators and system-level diagnostic messages.

4. Can it be used alongside older ABB modules?

   Yes, it is designed to operate in mixed-generation systems.

5. Is firmware upgradeable?

   It can be updated through ABB engineering tools when supported by the controller.

6. Can it operate in areas with vibration?

   Yes, provided vibration limits remain within ABB industrial standards.

7. Does the module handle multiple network paths?

   It supports system-defined communication channels based on configuration.

8. Is there a recommended installation order?

   Typically installed after controller and power modules are seated.

9. What happens if the module loses communication?

   It reports the condition immediately to the system, allowing fast operator response.

10. Is calibration or periodic tuning required?

    No, the module is engineered for stable long-term behavior without tuning.
