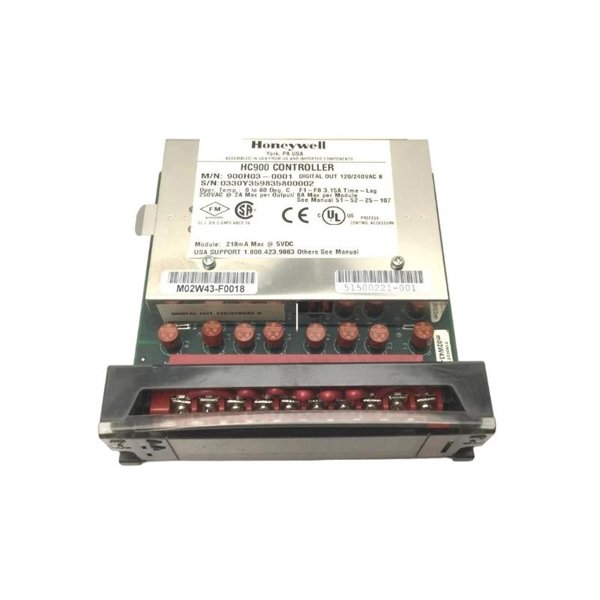

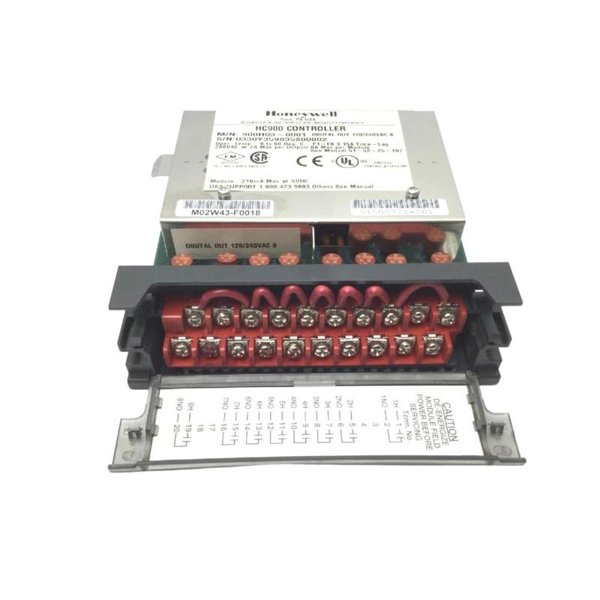

Honeywell 900H03-001 Digital Output Modules

The Honeywell 900H03-001 Digital Output Module is designed to provide reliable and precise digital output signals for process automation and control systems. It interfaces with field devices such as actuators, solenoids, and relays, delivering accurate on/off control in Honeywell DCS environments. This module is engineered for high reliability and seamless integration with Honeywell control systems.

Key Features

• High-speed digital output for fast control of field devices

• Supports multiple output channels for efficient process control

• Diagnostic and status reporting for enhanced reliability

• Compact, modular design for easy installation in Honeywell racks

• Wide operating temperature and humidity range

• Seamless compatibility with Honeywell DCS platforms

Technical Specifications

Industry Applications

• Control of actuators, solenoids, and relays in industrial processes

• Process automation in chemical, petrochemical, power, and manufacturing plants

• Integration with Honeywell DCS systems for precise control

• Industrial environments requiring reliable digital output modules

Frequently Asked Questions (FAQ)

Q1: How many output channels does the 900H03-001 support?

It supports 8 digital output channels.

Q2: What is the output voltage?

Nominal 24 VDC.

Q3: What is the maximum output current per channel?

0.5 A per channel.

Q4: Is it compatible with Honeywell DCS systems?

Yes, it is fully compatible.

Q5: What is the response time of the module?

≤ 5 ms.

Q6: What is the operating temperature range?

0°C to 60°C.

Q7: Can it operate in humid environments?

Yes, 5% to 95% non-condensing.

Q8: How is it mounted?

It mounts in the Honeywell module rack.

Q9: What is the module weight?

Approximately 0.5 kg.

Q10: Does it provide diagnostics?

Yes, it includes status reporting and diagnostic monitoring.
