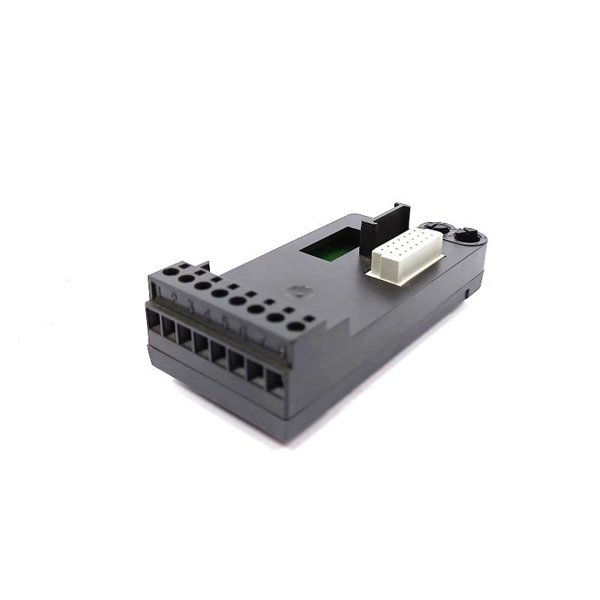

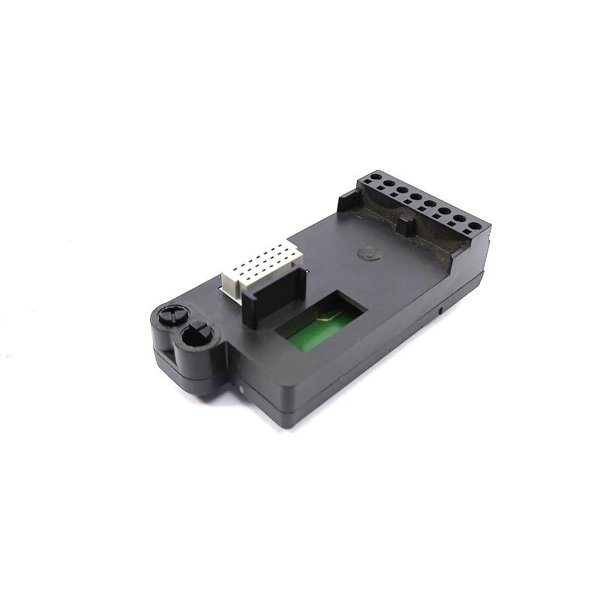

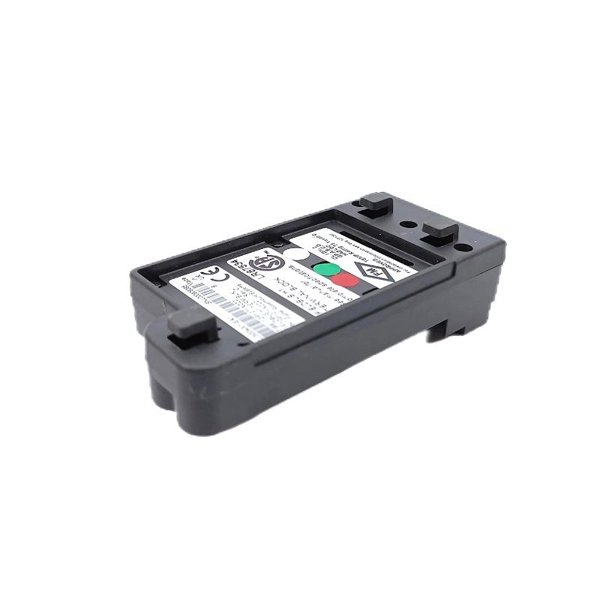

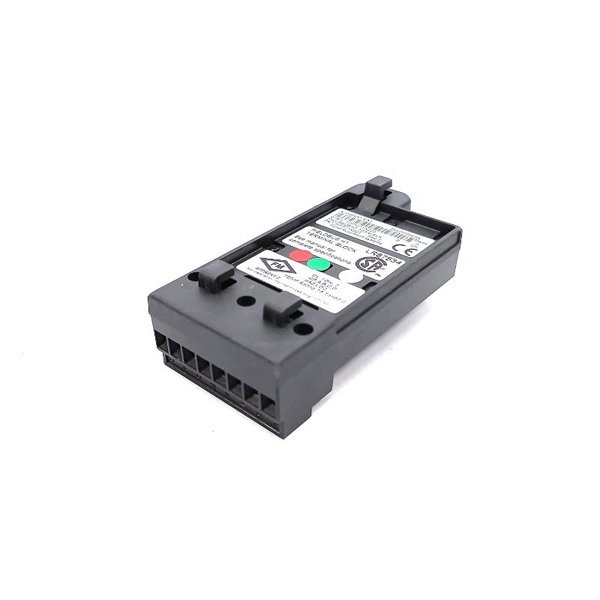

Emerson KJ3004X1-EA1 Fieldbus H1 Terminal Block

The Emerson KJ3004X1-EA1 Fieldbus H1 Terminal Block is an essential component in the DeltaV automation system architecture, specifically designed to interface with the Fieldbus I/O cards such as the KJ3004X1-EA1 Fieldbus Interface Module. This terminal block provides robust, reliable, and easy-to-use wiring connections for two FOUNDATION Fieldbus H1 segments.

It is engineered with precision for plug-and-play integration with DeltaV system carriers, simplifying the installation and minimizing human error during wiring. Its mechanical durability, excellent signal integrity, and safety certifications make it a suitable choice for demanding industrial environments, from refineries and power plants to high-precision pharmaceutical facilities.

Technical Specifications

Applications

The KJ3004X1-EA1 Terminal Block plays a crucial role in field wiring for industrial process automation systems. Its typical application areas include:

• Oil and Gas Facilities: Facilitates safe, efficient connection of H1 field instruments such as pressure transmitters and valve controllers.

• Petrochemical Plants: Used in hazardous areas to provide reliable wiring interfaces between control modules and field devices.

• Power Generation Units: Ensures accurate signal transmission in turbine and boiler control systems.

• Pharmaceutical Manufacturing: Helps maintain clean and organized wiring in strict validation environments.

• Chemical Processing Plants: Supports robust connectivity under corrosive or high-vibration conditions.

Its use guarantees enhanced system maintainability and reduced commissioning time.

Advantages

• System-Specific Design: Fully compatible with DeltaV hardware, ensuring effortless integration and consistent performance.

• Compact and Lightweight: Saves space in cabinets and reduces overall panel load.

• Toolless Wiring (Spring Clamp Option): Enables fast, secure, and maintenance-friendly wiring without the need for special tools.

• Robust Mechanical Construction: Built to withstand industrial stress, vibration, and temperature fluctuations.

• Simplified Troubleshooting: Each channel clearly marked and accessible for testing or maintenance.

• Certified for Hazardous Locations: ATEX and IECEx compliance ensures safety in explosive environments.

These features contribute to reduced installation costs and enhanced system reliability.

Frequently Asked Questions (FAQ)

1. What is the purpose of the KJ3004X1-EA1 Terminal Block?

   It provides secure, organized connection points for Fieldbus wiring between DeltaV I/O modules and field devices.

2. Is this terminal block compatible with other Emerson modules?

   It is specifically designed for use with the KJ3004X1-EA1 Fieldbus Interface Module within DeltaV systems.

3. How many Fieldbus channels does it support?

   It supports two H1 Fieldbus segments, matching the channels on the interface module.

4. Can I use this terminal block in explosive environments?

   Yes, it is certified for use in hazardous areas under ATEX and IECEx.

5. What is the benefit of color coding on the terminal block?

   It allows easy identification of signal types and sides (field vs. system), reducing wiring errors.

6. What are the available connection types?

   The terminal block may be available with spring-clamp or screw-type terminals depending on the version.

7. How is the block mounted in the system?

   It mounts directly onto the DeltaV I/O carrier or DIN rail-based mounting frame.

8. Is special training needed to install the terminal block?

   No special training is needed; installation is straightforward for any qualified technician.

9. Can this terminal block be replaced during operation?

   Yes, it is hot-swappable when the DeltaV system is designed for it.

10. Is labeling available for identification?

    Yes, labeling areas are provided for each terminal to help with channel tracking and maintenance.
