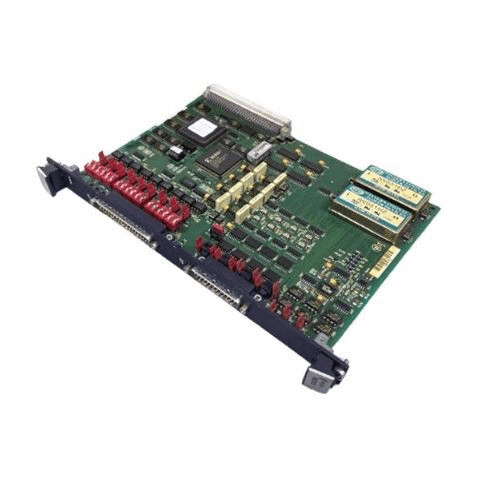

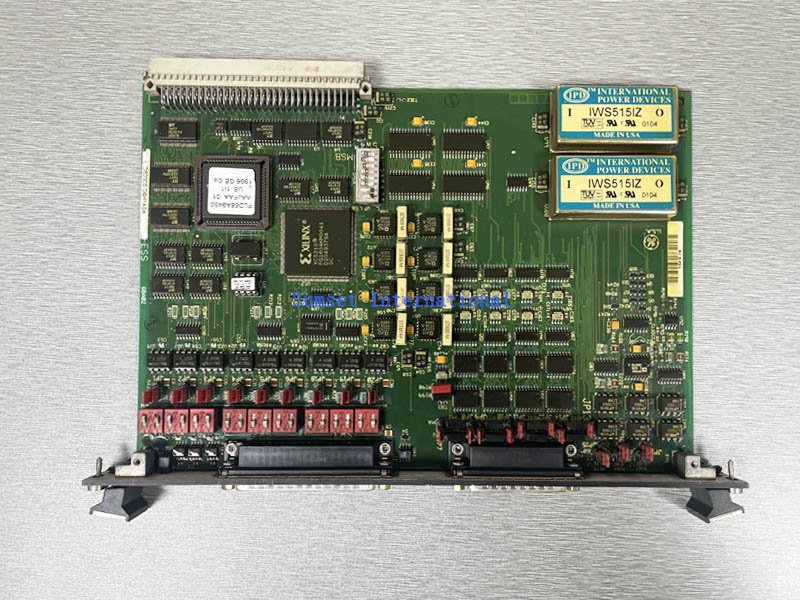

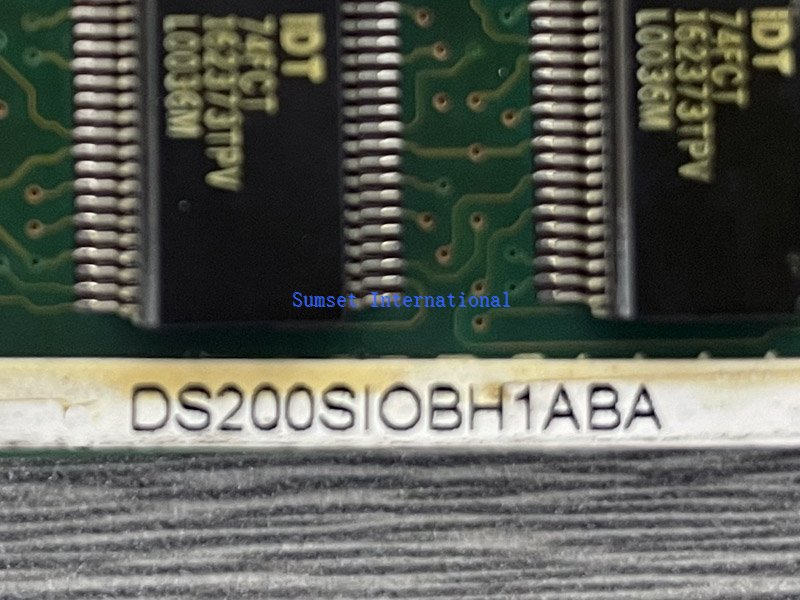

General Electric DS200SIOBH1ABA VME Stand I/O Card

GE I/O Control Board DS200SIOBH1ABA is an integral part of the GE Speedtronic control system and is used to manage input/output operations. It has several notable features. There are 20 jumpers and 3 switch blocks, each with 6 switches, providing 18 configurable switches. This allows the I/O control system to be precisely tuned to varying requirements. LED indicators provide visual feedback on the operating status of the board, helping to diagnose problems and confirm proper functionality.

Fuctions & Features

• Jumpers and Switch Blocks: The GE DS200SIOBH1ABA board includes 20 jumpers and 3 switch blocks, each containing 6 switches. A total of 18 switches are configurable, allowing for precise tuning of the I/O control system.

• Indicator Lights: The GE DS200SIOBH1ABA board features LED indicators that provide visual feedback on the operating status of the board. This helps diagnose problems and confirm proper functionality.

• 40-pin Connector: The GE DS200SIOBH1ABA board features a 40-pin connector that facilitates communication between the I/O control system and other components, such as the turbine or other system parts.

• Configuration settings: With 20 jumpers and 3 switch blocks containing 18 switches, users can configure the GE DS200SIOBH1ABA control board in a variety of settings to suit different application scenarios and control needs.

Specification
