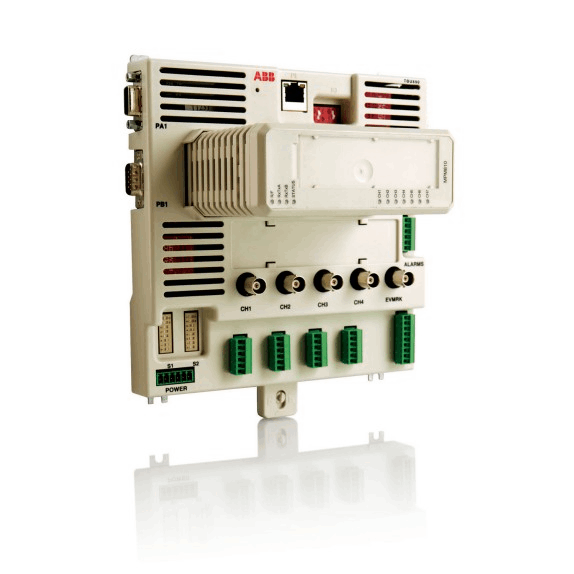

ABB MPM810 Machinery Condition Monitoring Moudule
Item Number:MPM810
Brand: ABB
Lead Time: In stock
Description:Machinery Condition Monitoring Moudule
Payment: T/T
Product Description
ABB MPM810 is a module dedicated to the condition monitoring and protection of rotating machinery, suitable for real-time health management of industrial key equipment (such as turbines, compressors, motors, etc.). The module can be installed in a centralized location or a remote location. Communication with the module is done through the onboard Profibus and Ethernet interfaces, and both communication ports can be used for monitoring and configuration.
Fuctions & Features
- Independent monitoring equipment: has the ability to independently monitor the mechanical state.
- Provide monitoring and protection functions:
- Vibration monitoring: monitors mechanical vibration.
- Eccentricity monitoring: monitors the eccentricity of the machine.
- Thrust (rotor) position monitoring: monitors the thrust position of the rotor.
- Differential (relative) expansion monitoring: monitors relative expansion.
- Casing (absolute) expansion monitoring: monitors the absolute expansion of the casing.
- Rich sensor interfaces:
- Proximity (eddy current) probe: used to measure parameters such as distance.
- Moving element speed probe: measures the speed of the moving element.
- Piezoelectric speed probe: measures speed-related parameters.
- Accelerometer: measures acceleration.
- DC linear variable differential transformer (DC LVDT): measures displacement and other parameters.
Specification
|
Property |
Characteristic |
|
Field I/O |
|
|
Supply voltage: +24 / -24 VDC +/-5% Operating Current: 300 mA each supply (typical) Maximum Current (short circuit): 535 mA (+24V), 545 mA (-24V) Power consumption: 7.2 Watts each supply (typical) Parallel terminals for use in daisy-chaining modules |
|
|
System Power: +24VDC, -24VDC current limited to 30mA. Individually fused Constant current 4.7mA available for piezoelectric devices Range: +/- 20 VDC with 10 VAC peak-to-peak maximum amplitude Accuracy: 0.25% of Full Scale |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
