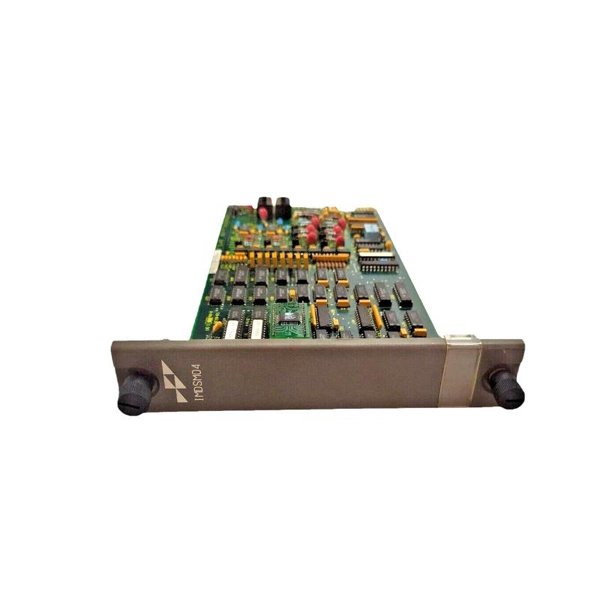

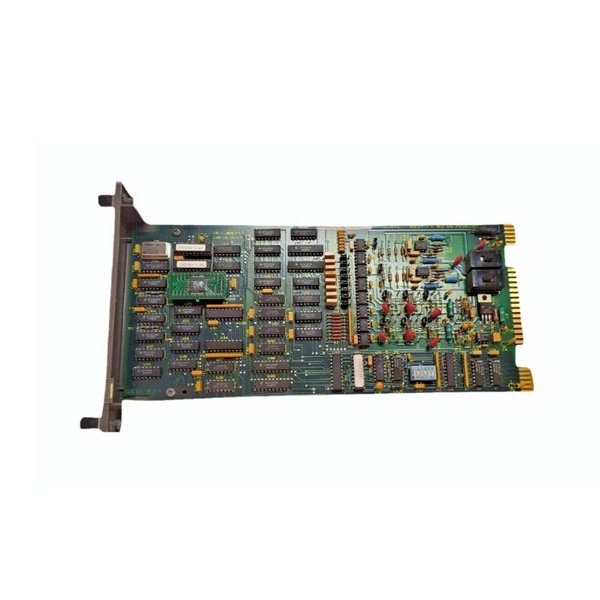

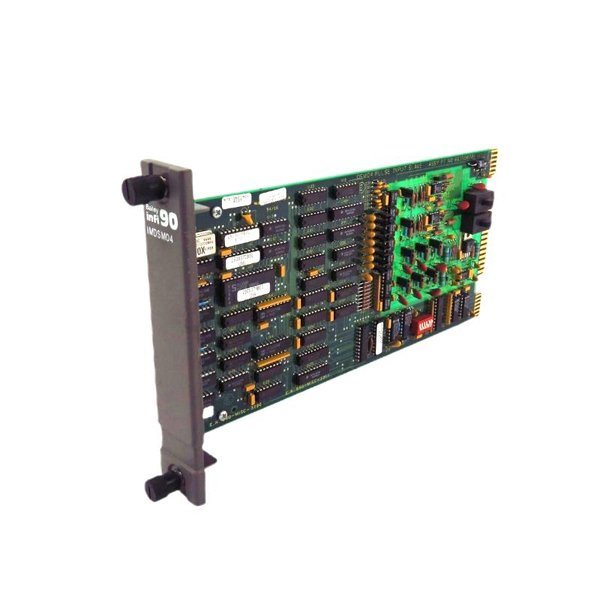

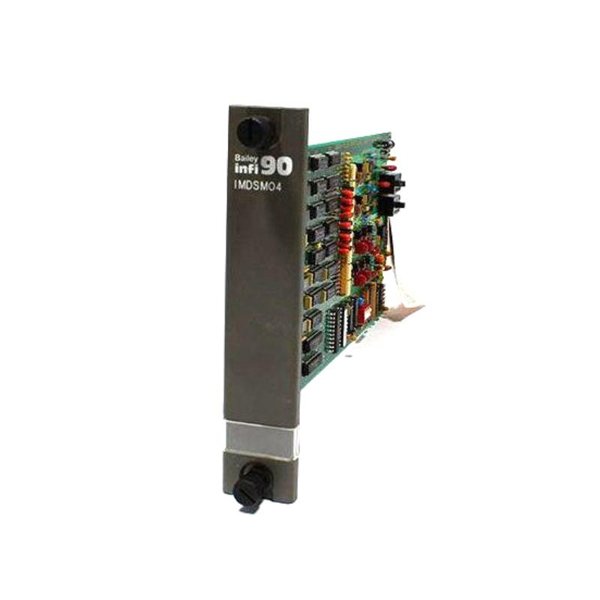

ABB Bailey IMDSM04 Pulse Input Slave Module

The ABB Bailey IMDSM04 Pulse Input Slave Module is an integral component within the ABB INFI 90 control system family. This module is specifically engineered to process pulse input signals from field devices such as flow transmitters, pulse generators, and turbine meters. It serves as a high-speed input interface designed to accurately read and process frequency-based signals, transforming raw data into actionable process values that can be utilized across various industrial automation tasks.

IMDSM04 integrates seamlessly with ABB’s Symphony and INFI 90 systems, acting as a slave device under the Master I/O modules. It provides pulse input capability to the distributed control system (DCS), enabling precise monitoring of critical operations such as flow measurement and speed monitoring in turbines or rotating machinery. With robust diagnostics, industrial-grade design, and long-term field reliability, the IMDSM04 ensures optimized performance in demanding environments such as power generation plants, oil & gas facilities, and chemical processing units.

Product Specifications

Product Applications

• Flow Measurement: Interfaces with turbine flowmeters, positive displacement meters, or magnetic flowmeters generating pulse outputs.

• Turbine Monitoring: Ideal for RPM or rotational speed detection in turbines, motors, or engines.

• Batch Control Systems: Tracks pulse counts in material dispensing and batching operations.

• Utility Metering: Processes pulse outputs from water, gas, and energy meters.

• Industrial Automation: Integrates into SCADA and DCS systems for real-time process monitoring.

• Energy Sector: Used in nuclear, thermal, and hydroelectric power plants for precise pulse-based input handling.

Product Advantages

• Reliable Pulse Processing: High-speed and noise-immune pulse detection ensures accurate measurements.

• Robust Isolation: Electrical isolation prevents damage from voltage spikes and ground loops.

• Plug-and-Play Integration: Easily integrates with ABB Symphony and INFI 90 systems, reducing setup time.

• Compact Design: Saves valuable space in control cabinets while maintaining full functionality.

• Status Indicators: On-board LEDs provide quick diagnostics per channel, aiding in troubleshooting.

• Long-Term Availability: Supported under ABB’s extended lifecycle service programs.

• Low Maintenance: Solid-state design requires minimal intervention during operation.

• Field-Proven: Deployed across a variety of industries globally with a record of reliability.

FAQ

1. Q: What type of signals does the IMDSM04 support?

   A: The IMDSM04 supports pulse input signals, commonly from flowmeters or speed sensors, with signal types like TTL, open collector, or dry contact.

2. Q: How many input channels are available on the IMDSM04 module?

   A: Typically, the IMDSM04 provides 8 isolated input channels for pulse signal acquisition.

3. Q: Is the IMDSM04 compatible with the Symphony Plus system?

   A: Yes, the IMDSM04 is fully compatible with ABB’s Symphony and Symphony Plus control architectures.

4. Q: Can this module handle high-frequency signals?

   A: Yes, the module can handle pulse input frequencies typically up to 10 kHz.

5. Q: Does it support hot swapping or live insertion?

   A: For safety and system integrity, it’s recommended to power down.

6. Q: How is the IMDSM04 powered?

   A: The module draws power directly from the system backplane it’s inserted into.

7. Q: Does this module include diagnostics?

   A: Yes, the module features LED indicators for each input channel to signal status or faults.

8. Q: What kind of isolation does it provide?

   A: Optical isolation is provided between field input and the internal logic circuitry for enhanced safety.

9. Q: Is there a specific orientation or mounting requirement?

   A: It is typically rack-mounted within ABB control cabinets and should follow recommended orientation to ensure thermal efficiency.

10. Q: What industries use the IMDSM04?

    A: It is widely used in power generation, oil and gas, water treatment, and general industrial automation.
