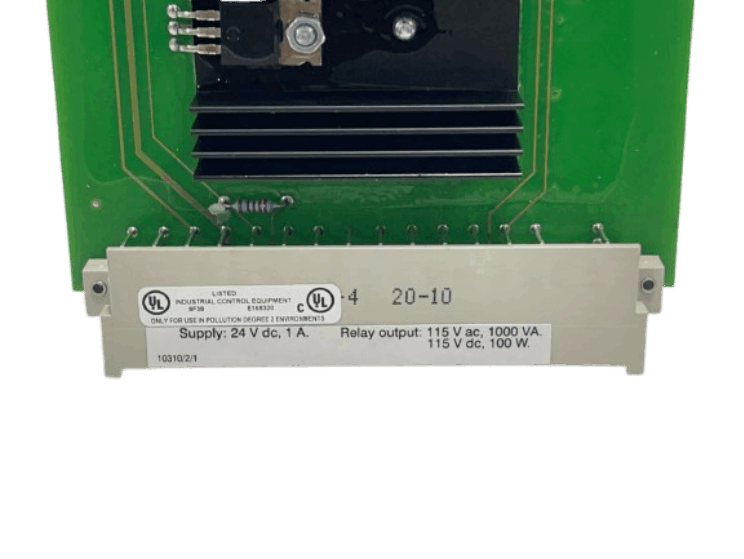

Honeywell 10310/2/1 Earth Leakage Detector
Item Number: 10310/2/1
Brand:Honeywell
Lead Time: In stock
Description:Earth Leakage Detector
Payment: T/T
Product Description
Honeywell 10310/2/1 is a DC system leakage detector, mainly used for 24V DC system, but can also monitor 48V DC, 60V DC or 110V DC system. It has manual self-test and ground connection monitoring functions. Through specific connection methods and multiple working modes, it can detect leakage and fault location, and can reset the fault state in multiple ways.
Function & Features
- Manual Self-Test Capability: The 10310/2/1 has a manually operated self-test feature that can be used to self-test the leakage detector by placing switch 2 in the "TEST" position.
- Status Indication: When switch 1 is in the "1 Hz" or "1/4 Hz" position, the green "MODE" LED on the front of the module flashes at the selected connection frequency.
- Special Condition Accommodations: The "1 Hz" position can be used to accommodate solenoids or relays that may remain energized due to negative ground voltage.
- Fault Location: The "1/4 Hz" position can be used to locate ground faults in conjunction with a current clamp (such as the DCM300E digital clamp from AVO International).
Specifications
|
Category |
Details |
|
General |
Type number: 10310/2/1 10800 |
|
Power |
Supply voltage: 24 V DC (max. 30 V DC) Supply current: max. 60 mA Rst24 input voltage: 18...70 V DC Rst110 input voltage: 40...130 V DC Rst24 input current: 1.1 mA at 24 V DC Rst110 input current: 2.5 mA at 110 V DC |
|
Earth |
Earth voltage: -12 V DC (no earth fault) Earth fault threshold: -30...+125 V DC (earth fault) Max. earth current: 5.5 mA (± 1 mA) 25.0 mA (± 5 mA) |
|
Output contact |
Max. output voltage: 115 V DC Max. output current: 2 A |
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
