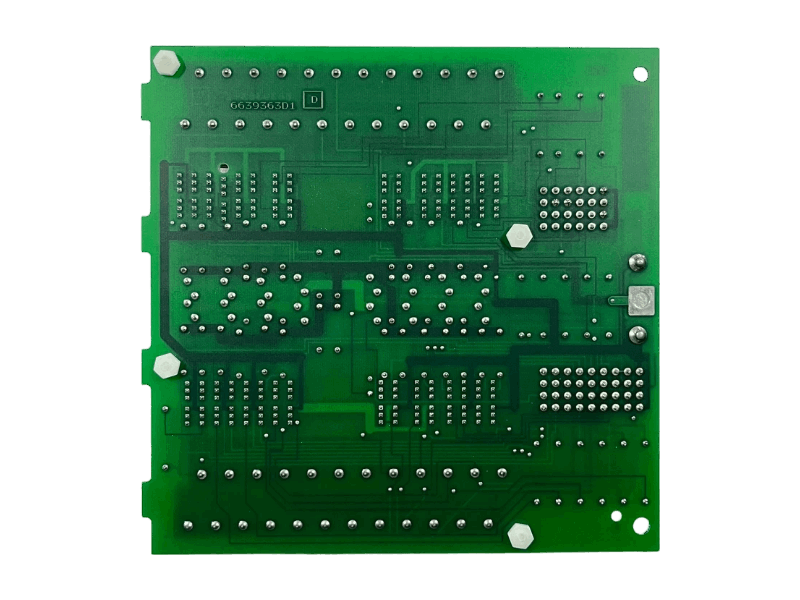

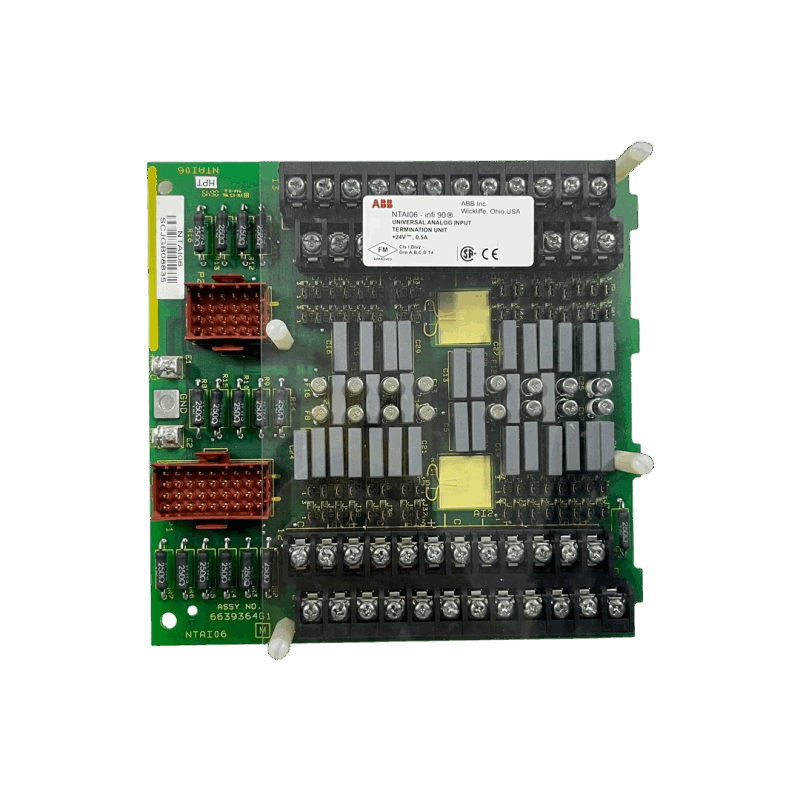

ABB NTAI06 AI Termination Unit 16 CH
Item Number:NTAI06
Brand: ABB
Lead Time: In stock
Description:AI Termination Unit 16 CH
Payment: T/T
Product Description
ABB NTAI06 is an analog input terminal unit with 16 channels. It is a single printed circuit board that can be mounted in the NFTP01 field terminal panel. The terminal unit has two connectors P1 and P2, which are connected to the slave modules through a Y-cable, and the terminal block for field wiring is located on the terminal unit. NTAI06 can handle up to 16 analog inputs with a variety of input signal types, including different ranges of voltage, current, three-wire RTD, millivolt signals, and thermocouple inputs.
Function & Features
- ABB NTAI06 onboard compression connector terminal blocks accept field wiring for 16 inputs.
- The ABB NTAI06 provides transient and surge protection for input channels.
- The input signal type of the ABB NTAI06 is jumper configurable, such as individual fuses for system powered 4-20 mA input channels, single-ended voltage input negative terminal jumpered directly to I/O COM on the NTAI06, and differential voltage input and three-wire RTD positive, negative, and C terminals isolated relative to I/O COM and module common.
Specifications
|
Item |
Details |
|
Product Name |
ABB NTAI06 AI Termination Unit 16 CH |
|
Number of Channels |
16 analog input channels |
|
Field Wiring |
On - board compression fitting type terminal blocks can accept field wiring for 16 inputs. |
|
Connection Method |
Connected to the slave module via a Y-shaped cable through connectors P1 and P2. |
|
Mounting |
Mounts in the Field Termination Panel (NFTP01). |
|
Product Net Depth / Length |
96.52 mm |
|
Product Net Height |
236.22 mm |
|
Product Net Width |
218.44 mm |
|
Product Net Weight |
0.635 kg |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:AI Termination Unit
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
