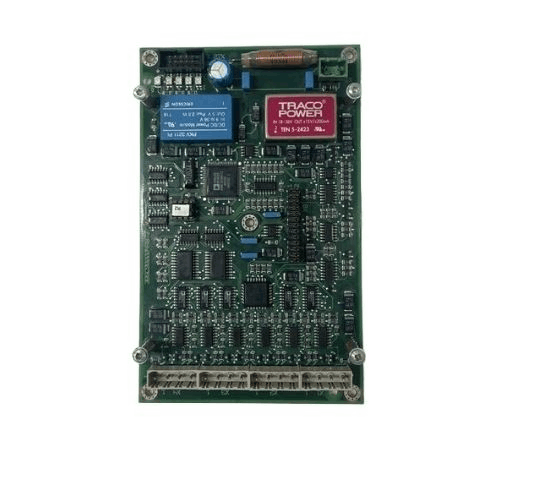

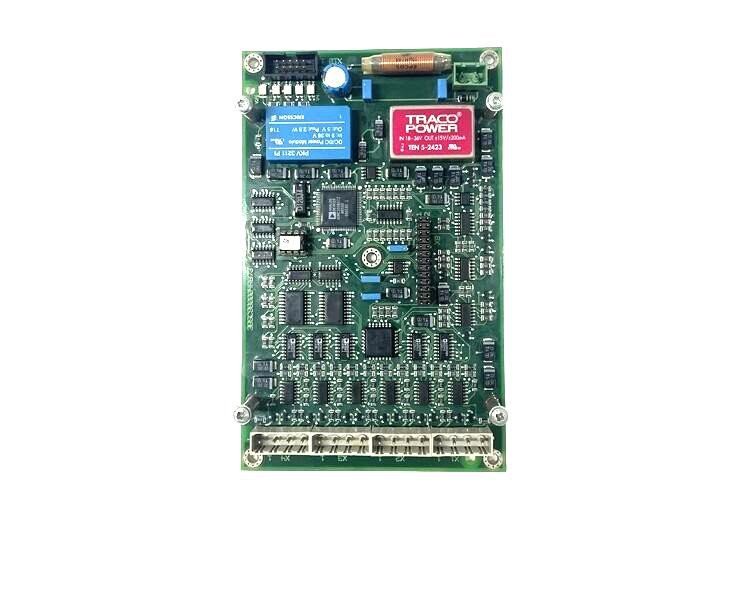

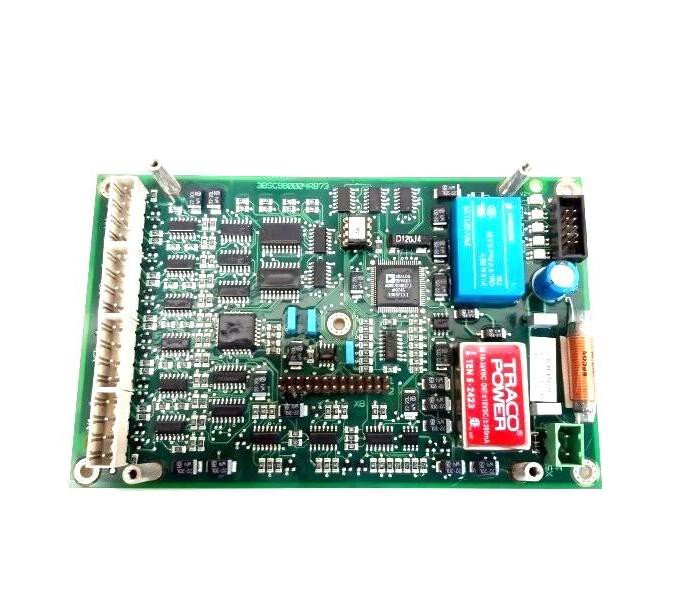

ABB DATX 130 3ASC25H214 Rotor Feedback Board

ABB DATX 130 3ASC25H214 is a rotor feedback board used in ABB motor and drive systems and is specifically designed to provide rotor position feedback for controlling the motor. It is typically a component used in variable speed drives to ensure precise synchronization between the motor rotor and the control system.

The DATX 130 rotor feedback board (part number 3ASC25H214) is primarily used in ABB's ACS800 and ACS580 series variable frequency drives (VFDs) to provide important rotor position feedback for motor operation, speed control and protection. It interfaces with the motor's rotor position sensor (such as an encoder or resolver) and provides the necessary feedback to the drive system.

Fuctions & Features

• Core feedback: The ABB DATX 130 feedback board can be connected to the motor's rotor position sensor (such as an incremental encoder or resolver). When the motor is running, these sensors sense the change in the rotor's position and convert it into a corresponding electrical signal.

• Interfacing with ABB drive systems: The ABB DATX 130 is specifically designed to work with ABB's various AC drive systems, especially the ACS800 and ACS580 series inverters.

• Ensuring drive system information interaction: In the entire motor drive system, the ABB DATX 130 board plays the role of an information bridge. It ensures that the drive system can obtain the position of the motor rotor in a timely manner and feedback.

Specification

Appilications

ABB DATX 130 3ASC25H214 rotor feedback board plays a key role in motor control and drive systems in many fields with its precise rotor position feedback function. The following are specific application scenarios:

• Industrial automation: production line conveying equipment, automated assembly equipment
• HVAC system: fan control, water pump control
• Material handling and warehousing: stacker, automated guided vehicle (AGV)
