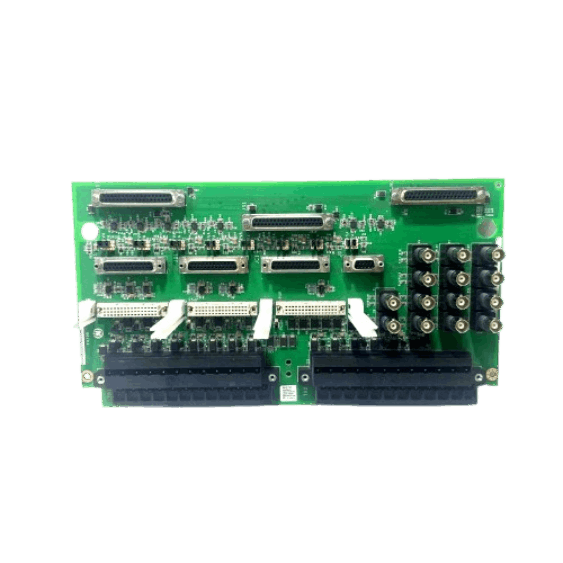

General Electric IS200TVBAH2A Vibration Input Terminal Board
Item Number: IS200TVBAH2A
Brand: GE
Lead Time: In stock
Description: Vibration Input Terminal Board
Payment: T/T
Product Description
GE IS200TVBAH2A is a vibration signal interface board for the Mark VIe control system. It connects to various vibration sensors and communicates with I/O modules. This board must be used with the PVIB/YVIB I/O module set and supports third-party monitoring systems such as the Bently Nevada 3500.
Note: Power Supply Limitations: The IS200TVBAH2A relies on the +28V input from the PVIB/YVIB power supply and cannot be used directly with a Mark RKPS power supply.
Function & Features
- Input Power: The IS200TVBAH2A receives +28V from the PVIB/YVIB; no external -28V input is required.
- Negative Voltage Conversion: The IS200TVBAH2A converts +28V to -28V via three removable WNPS daughterboards.
- IS200TVBAH2A Main Connector: 37-pin connector (transmits signals to the I/O module).
- IS200TVBAH2A Auxiliary Connectors: 9-pin/25-pin connectors provide power to the Bently Nevada 3500 system and each channel outputs signals through BNC connectors for third-party monitoring equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IS200TVBAH2A |
| Series | Mark Vie |
| Terminal Blocks | 2×24-position screw terminals (maximum 2.5mm² wires) |
| Connectors | 37-pin D - sub (main signals), 9 - pin/25 - pin (auxiliary), 14×BNC |
| Signal Types |
-12×Analog Inputs
-8×Digital Status -4×Power Supplies |
| Contact Resistance | <10mΩ |
| Dimensions | 235mm × 125mm × 45mm (excluding connectors) |
| Weight | 1.2kg (including WNPS daughter boards) |
|
Input Channels |
Supported Sensor Types |
Power Supply Characteristics |
Jumper Configuration |
|
Channels 1 - 8 |
- Proximitors - Seismic/Velomitors - Accelerometers (Channels 1 - 3 only) |
-24V current-limited per channel |
- JPxA: Open circuit detection / 3mA constant current - JPxB: Bently 3500 output configuration - JPxC: PR0xL open enable |
|
Channels 9 - 12 |
Only Proximitors |
-24V current-limited |
Not configurable |
|
Channel 13 |
Proximitors or Keyphasor |
-24V current-limited |
Not configurable |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Vibration Input Terminal Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Loading comments...

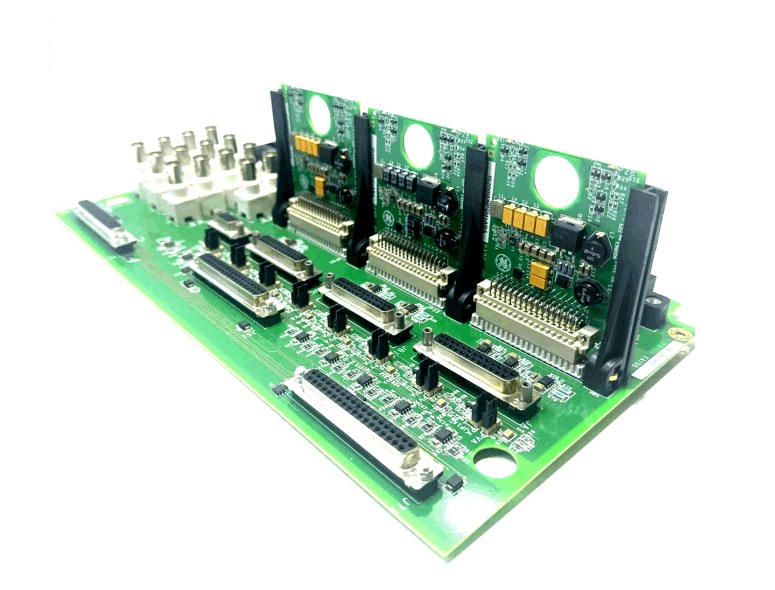

General Electric IS200TVBAH2A Vibration Input Terminal Board
Item Number: IS200TVBAH2A
Brand: GE
Lead Time: In stock
Description: Vibration Input Terminal Board
Payment: T/T
Product Description
GE IS200TVBAH2A is a vibration signal interface board for the Mark VIe control system. It connects to various vibration sensors and communicates with I/O modules. This board must be used with the PVIB/YVIB I/O module set and supports third-party monitoring systems such as the Bently Nevada 3500.
Note: Power Supply Limitations: The IS200TVBAH2A relies on the +28V input from the PVIB/YVIB power supply and cannot be used directly with a Mark RKPS power supply.
Function & Features
- Input Power: The IS200TVBAH2A receives +28V from the PVIB/YVIB; no external -28V input is required.
- Negative Voltage Conversion: The IS200TVBAH2A converts +28V to -28V via three removable WNPS daughterboards.
- IS200TVBAH2A Main Connector: 37-pin connector (transmits signals to the I/O module).
- IS200TVBAH2A Auxiliary Connectors: 9-pin/25-pin connectors provide power to the Bently Nevada 3500 system and each channel outputs signals through BNC connectors for third-party monitoring equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IS200TVBAH2A |
| Series | Mark Vie |
| Terminal Blocks | 2×24-position screw terminals (maximum 2.5mm² wires) |
| Connectors | 37-pin D - sub (main signals), 9 - pin/25 - pin (auxiliary), 14×BNC |
| Signal Types |
-12×Analog Inputs
-8×Digital Status -4×Power Supplies |
| Contact Resistance | <10mΩ |
| Dimensions | 235mm × 125mm × 45mm (excluding connectors) |
| Weight | 1.2kg (including WNPS daughter boards) |
|
Input Channels |
Supported Sensor Types |
Power Supply Characteristics |
Jumper Configuration |
|
Channels 1 - 8 |
- Proximitors - Seismic/Velomitors - Accelerometers (Channels 1 - 3 only) |
-24V current-limited per channel |
- JPxA: Open circuit detection / 3mA constant current - JPxB: Bently 3500 output configuration - JPxC: PR0xL open enable |
|
Channels 9 - 12 |
Only Proximitors |
-24V current-limited |
Not configurable |
|
Channel 13 |
Proximitors or Keyphasor |
-24V current-limited |
Not configurable |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Vibration Input Terminal Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
