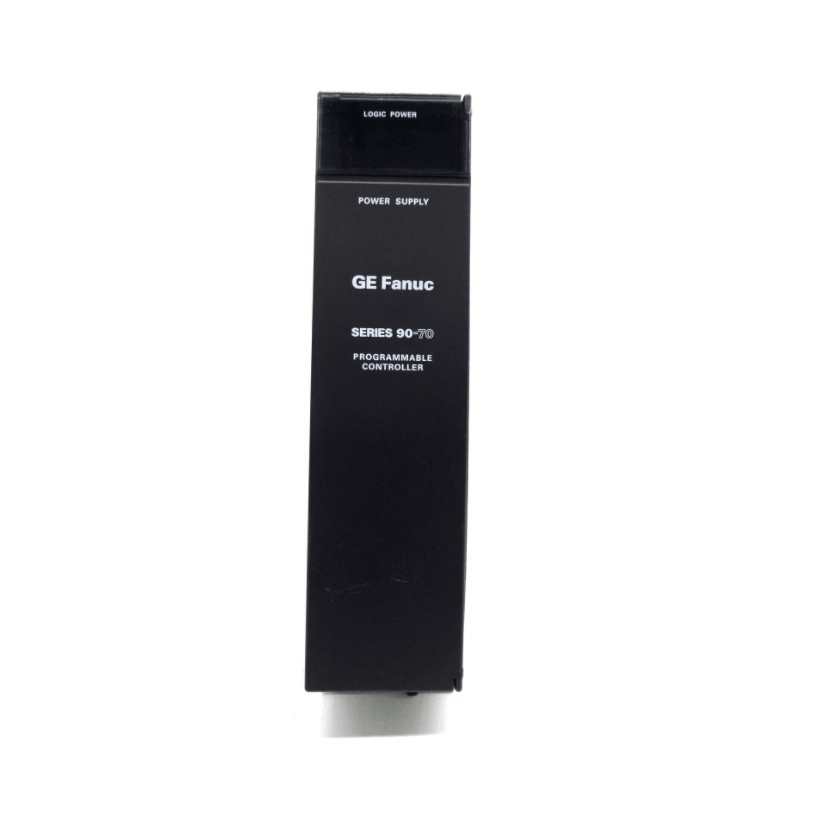

General Electric IC697PWR710 Power Supply Module
Product Description
The IC697PWR710 is a rack-mount power supply module for the General Electric (GE) RX7i series of programmable controllers. It plugs directly into the 48-pin backplane-mount connector in the leftmost slot of the rack and provides +5 volt power and logic level sequencing signals to the backplane.
The power supply module can be used in single-rack applications and can also power a second rack when the total load is within the rated range. The inter-rack connection is achieved through pre-wired cables. Under full load conditions, the power supply output can withstand a complete loss of input power for one cycle.
Function & Features
- Protection: The IC697PWR710 provides electronic short circuit overcurrent protection on the 5 volt bus to prevent damage to the power module and connected devices due to short circuits or overcurrent, and also has jumpers for overvoltage protection devices.
- Supports dual rack operation: A single IC697PWR710 power module can support the operation of two racks, and the second rack can be powered through pre-wired cables when the total load meets the power supply rating.
- Power Factor Correction: The IC697PWR710 performs power factor correction on the AC input, which can improve the utilization of electrical energy and also help reduce adverse effects on the power grid.
Specifications
|
Parameter |
Details |
|
Model |
IC697PWR710 |
|
Nominal Rated Voltage |
120/240VAC or 125 VDC |
|
Input Voltage Range - AC |
90 to 264 VAC, 47 to 63 Hz |
|
Input Voltage Range - DC |
100 to 150 VDC |
|
Input Power |
90 watts maximum at full load |
|
Input Half Cycle Peak Inrush |
3 amps (typical) |
|
Power Factor |
>.95 |
|
Output Power |
56 watts maximum |
|
Output Voltage |
+5 VDC: 4.90 to 5.25 volts (5.1 volts nominal) |
|
Protective Limits - Overvoltage Limit |
6.2 volts (typical), electronic overvoltage protection |
|
Protective Limits - Overcurrent Limit |
12 amps (typical), electronic current limit |
|
Ride Through Time |
21 milliseconds minimum (from loss of AC input) |
|
VME |
System designed to support the VME standard C.1 |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Power Supply Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
