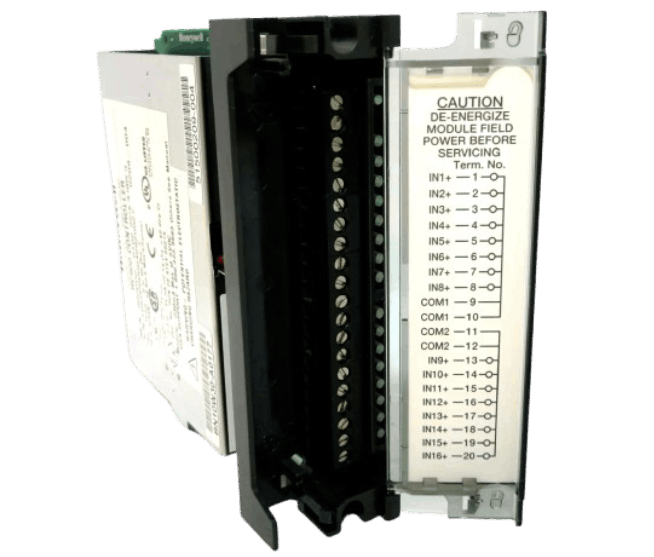

Honeywell 900G02-0102 Digital Input Module
Item Number: 900G02-0102
Brand:Honeywell
Lead Time: In stock
Description:Digital Input Module
Payment: T/T
Product Description
Honeywell 900G02-0102 Digital Input Module is a DC digital input module that provides two groups of 8 inputs, each with a pair of terminals for connecting to the common terminal. The input is triggered to the "ON" state when DC power is applied between the common terminal and the input terminal. The module has multiple status indication functions and the controller logic can invert the input state when necessary.
Function & Features
Input configuration：
- 16-channel grouping design: 900G02-0102 is divided into 2 groups (8 channels each), each group shares a pair of common terminals.
- Input signal type: DC signal (DC), driven by the voltage between the common terminal and the input terminal (such as 24V DC).
- Status light: Each channel is equipped with a green LED, which lights up when the input signal is ON.
Adjustable logic:
The logic within the 900G02-0102 controller allows the input state to be reversed when necessary, and the effective state of the input signal can be adjusted according to the actual control logic requirements.
Specifications
|
Parameter |
Specification |
|
Model |
900G02-0102 |
|
Inputs per module |
16 (sinking) |
|
Input Voltage Range |
10 VDC to 32 VDC |
|
Peak Voltage |
32 VDC |
|
AC Frequency |
N/A |
|
2 groups of 8 inputs (42.4VDC max.) |
|
|
ON Voltage Level |
9.5 VDC minimum |
|
OFF Voltage Level |
3.5 VDC maximum |
|
Input Impedance |
2.6 K ohms nominal |
|
Input Current |
2.3 mA @ 12 VDC; 6.9 mA @ 24 VDC nominal |
|
Minimum ON Current |
1.0 mA |
|
Maximum OFF Current |
0.7 mA |
|
OFF to ON response time* |
4 ms max |
|
ON to OFF response time* |
4 ms max |
|
Power Supply Loading |
5V; 130mA max; 24V; 0mA |
