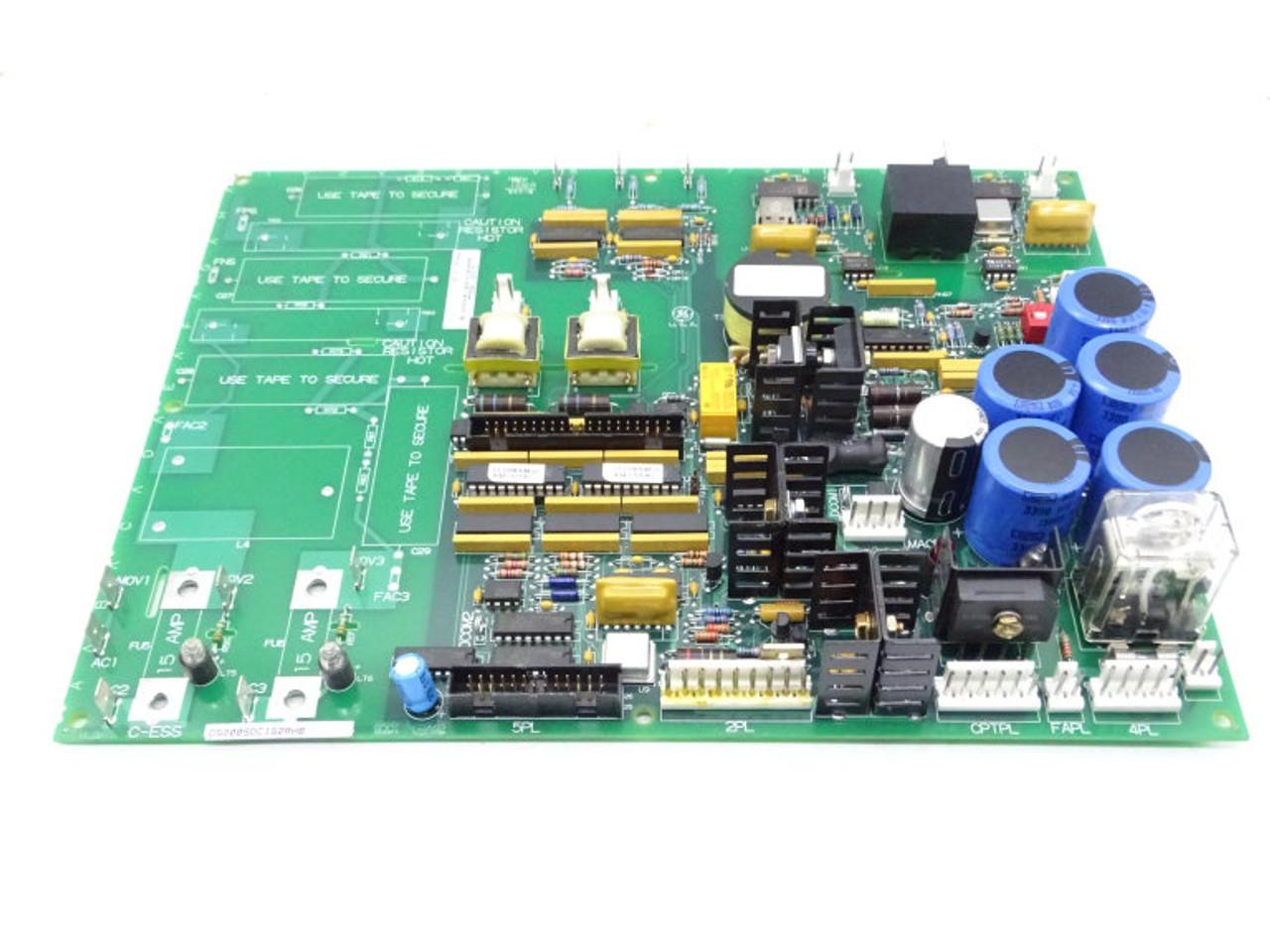

General Electric DS200SDCIG2AHB DC Power Supply and Instrumentation Board
Item Number:DS200SDCIG2AHB
Brand:GE
Lead Time: In stock
Description:DC Power Supply and Instrumentation Board
Payment: T/T
Product Description
GE DS200SDCIG2AHB is a DC power supply and instrument panel designed and manufactured by General Electric (GE), belonging to the Mark V series, for drive control systems. The board provides logic power and interface circuits for DC2000 drives with up to 600 V AC input voltage. The board has a variety of power supply circuits and signal detection circuits for motor field, armature SCR gate drive, and motor signal detection functions.
Fuctions & Features
- Power Supply: The GE DS200SDCIG2AHB board provides +5 V dc (4A), +15 V dc (0.4 A), +24 V dc, and 115 V ac (0.4 A) power supplies.
- Motor Field Power Circuit: The GE DS200SDCIG2AHB board supports motor field power (not including SCR modules).
- Armature SCR Gate Drive Circuit: The GE DS200SDCIG2AHB board drives the gate control of the armature SCR.
- Signal Sense Circuit: The GE DS200SDCIG2AHB board includes sense of armature voltage and current, AC line current, voltage amplitude, and field current.
Specification
|
Parameter |
Value |
|
Model |
DS200SDCIG2AHB |
|
Series |
DC2000 |
|
Operating Temperature |
-30°C to 65°C |
|
Power Supply Voltage |
24 V dc |
|
Board Dimensions |
2.8 cm (Height) × 8.6 cm (Width) |
|
Weight |
0.45 kg |
|
Power Output |
+5 V dc (4A), +15 V dc (0.4 A), +24 V dc, 115 V ac (0.4 A) |
|
Application |
Drive Control Systems |
