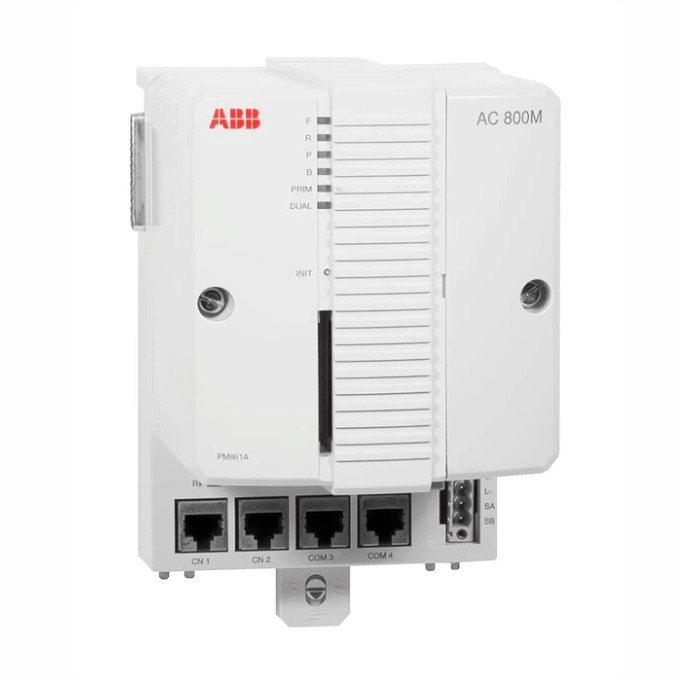

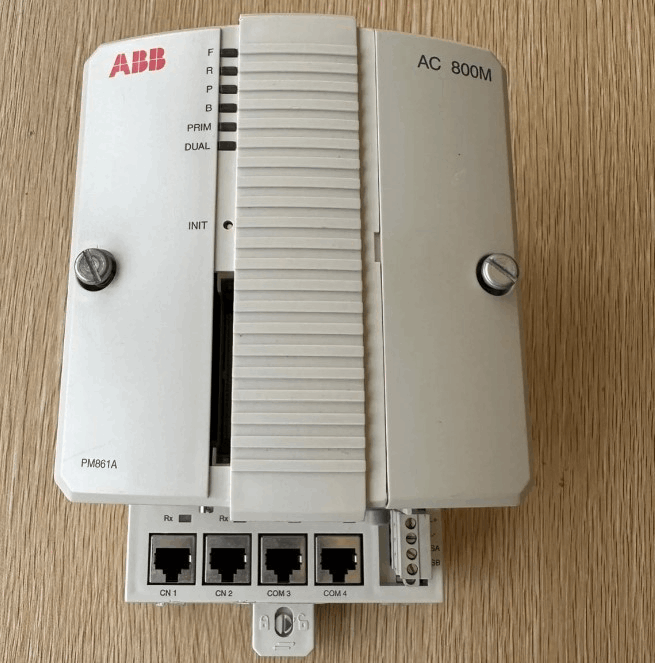

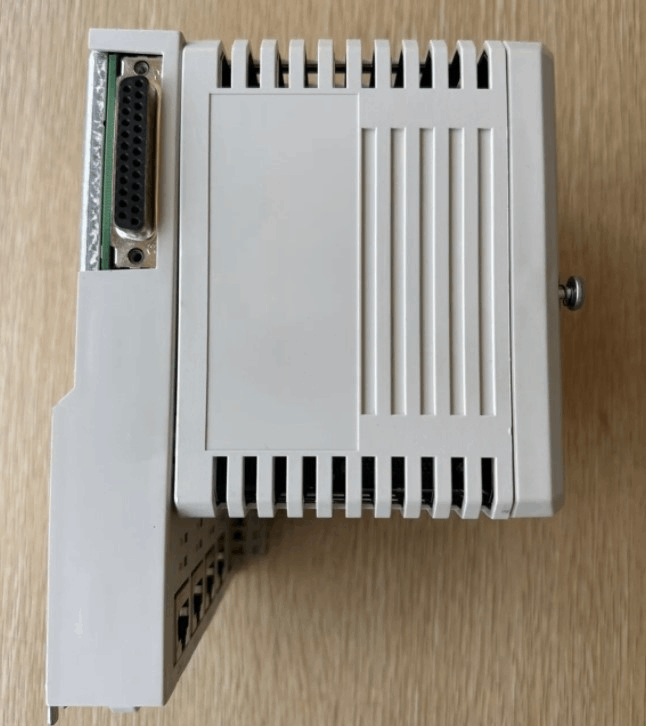

ABB PM861AK01 3BSE018157R1 Processor Unit
Item Number:PM861AK01 3BSE018157R1
Brand: ABB
Lead Time: In stock
Description:Processor Unit
Payment: T/T
Product Description
ABB PM861AK01 3BSE018157R1 processor unit. Its CPU board integrates a microprocessor, RAM, real-time clock, LED indicators, initialization button and CompactFlash interface. The baseboard of the PM861A controller has two RJ45 Ethernet ports (CN1, CN2) for connecting to the control network and two RJ45 serial ports (COM3, COM4), of which COM3 is an RS-232C port with modem control signals and COM4 is an isolated port for connecting to the configuration tool.
The controller supports CPU redundancy, covering CPU, CEX-Bus, communication interface and S800 I/O. The unique sliding and locking mechanism facilitates installation and removal on the DIN rail, and each baseboard has a unique Ethernet address as a hardware identification.
Fuctions & Features
- Modularity, allowing for step-by-step expansion
- IP20 Class protection withoutthe requirementfor enclosures
- The controller can be configuredwith 800xA control builder
- The controller has full EMC certification
- Sectioned CEX-Bus using a pair of BC810
- Hardware based on standards for optimumcommunication connectivity(Ethernet, PROFIBUS DP, etc.)
- Built-in redundant Ethernet Communication ports
Specification
|
Item |
Specification |
|
Processor Type |
MPC860 |
|
Maximum Switch-over Time in Redundant Configuration |
10ms |
|
Number of Applications per Controller |
32 |
|
Number of Programs per Application |
64 |
|
Number of Diagrams per Application |
128 |
|
Number of Tasks per Controller |
32 |
|
Number of Different Cycle Times |
32 |
|
Cycle Time per Application Program |
Down to 1 ms |
|
Flash PROM for Firmware Storage |
2 MB |
|
24V DC (19.2-30 V DC) |
|
|
Power Consumption of +24V (Typical/Maximum) |
250/430mA |
|
Power Dissipation (Typical) |
6.0W (10.3 W maximum) |
|
Redundant Power Supply Status Input |
Yes |
|
Built-in Back-up Battery |
Lithium, 3.6 V |
|
Real-time Clock Stability |
100 ppm (Approximately 1 h/year) |
|
Clock Synchronization |
1 ms between AC 800M controllers via CNCP protocol |
