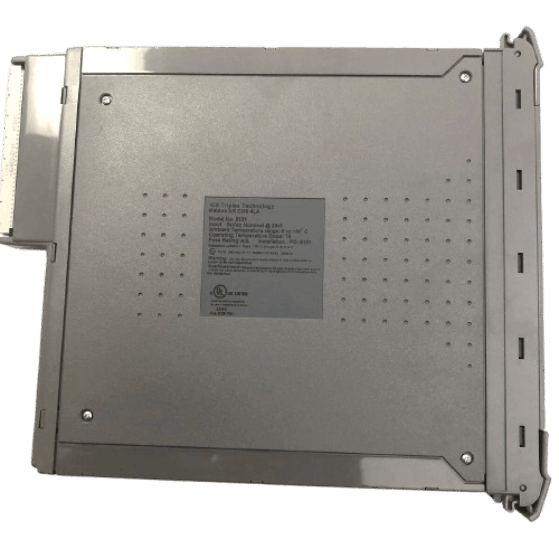

ICS Triplex T8151 Trusted Gateway Module
Item Number:T8151
Brand:ICS Triplex
Price:$1
Lead Time: In stock
Description:Trusted Gateway Module
Payment: T/T
Product Description
ICS Triplex T8151 is a gateway module for Trusted® control systems. Its main function is to enable PC-based applications to interact with Trusted control systems and act as a bridge between the controller and external devices (such as client networks, PC applications). T8151 can operate without peripherals (keyboard/display).
Network configuration: If forced arbitration is required, set to 10BaseT full-duplex mode.
Security Recommendation: Enable encryption and authentication functions of the OPC server in critical systems.
Function & Features
Dual network connection:
T8151 is used as the interface between the Trusted system and external PC applications, and is connected to the communication interface (T8151) of the inter-module bus (IMB) via 100Base-T Ethernet.
T8151 is equipped with two Ethernet ports (10/100 Base-T) and one RS-232 serial port, of which the second Ethernet port and serial port are used to connect to the client network.
Operating system and configuration method:
T8151 has a built-in full Microsoft Windows XP operating system license and supports running Windows-based applications.
T8151 can remotely operate the module's communication configuration and application loading through the remote desktop function of other networked devices (running Windows XP).
Specifications
|
Category |
Parameter |
Specification |
| Model | T8151 | Trusted Gateway Module |
|
Power |
Voltage Range |
20 Vdc to 32 Vdc |
|
Heat Dissipation |
24 W max |
|
|
Ports |
Front Panel RS232 |
1 port (unused) |
|
High-Speed Serial Port |
1 port (supports RS-232/422/485) |
|
|
Ethernet Ports |
2 ports (10BaseT/100BaseT, 4 twisted pair) |
|
|
Communications |
Serial Baud Rates |
1200 baud to 115200 baud |
|
Ethernet Speed |
10 Mbit/s or 100 Mbit/s |
|
|
Protocols Supported |
TCP/IP, Microsoft Networking |
|
|
Diagnostics |
Diagnostic Port |
RS232, female, 5-pin mini-DIN socket |
|
Serial-to-Logic |
Channel-to-Channel isolation |
|
|
Performance |
Processor Speed |
800 MHz |
FAQ
Q: What is the brand?
A:ICS Triplex(Rockwell)
Q: What is the type?
A:Trusted Gateway Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
