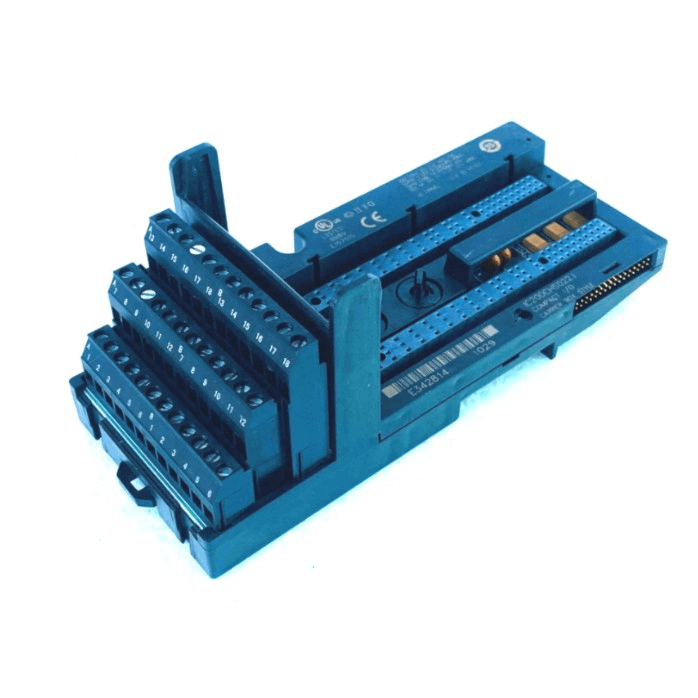

General Electric IC200CHS022 Box-Style I/O Carrier
Item Number: IC200CHS022
Brand: GE
Lead Time: In stock
Description: Box-Style I/O Carrier
Payment: T/T
Product Description
GE IC200CHS022 is a Box-Style I/O carrier equipped with 36 IEC cassette terminals. It primarily provides mounting support for one I/O module, backplane communication interfaces, and field wiring.
The IC200CHS022 has a built-in terminal block bracket, into which the printed terminal block provided with the I/O module can be folded and inserted. The terminal block bracket should be kept retracted during system operation.
Function & Features
- The IC695CMM002 snaps into a 7.5mm x 35mm rail. The rail must be grounded to provide EMC protection and have a conductive surface (uncoated).
- The IC695CMM002 supports up to 32 I/O points and four common/power connections. Each terminal accepts a single or multiple wires from AWG 14 (approximately 2.1mm²) to AWG 22 (approximately 0.36mm²), or two AWG 18 (approximately 0.86mm²) wires.
- The IC695CMM002 features a keying knob that mates with the keying on the bottom of the module, ensuring that only the correct type of module is installed in the bay.
Specifications
|
Parameter |
Details |
|
Model |
IC200CHS022 |
|
Number of Terminals |
36 IEC box - style terminals |
|
Wiring Capacity |
Single wire: AWG#14 (2.1mm²) to AWG#22 (0.36mm²); Dual wires: Up to AWG#18 (0.86mm²) |
|
Module Support |
Supports 1 vertically - installed 90 - 30 series I/O module |
|
Installation Torque |
Terminal screws: 0.5 - 0.6 N·m |
|
Weight |
Approximately 200g |
