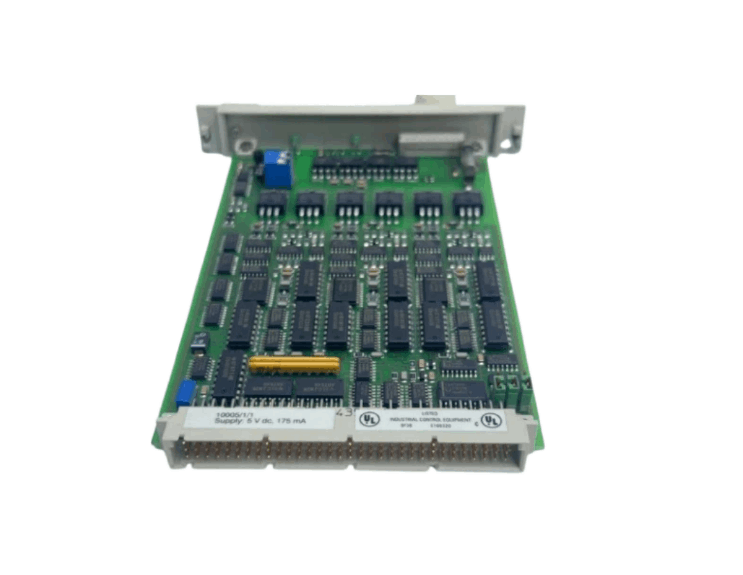

Honeywell 10005/1/1 Watchdog Module
Product Description
Honeywell 10005/1/1 watchdog module is a protection module for system operation safety monitoring and fault emergency control. It determines whether the control system is operating properly by monitoring three core parameters: application cycle execution time (maximum/minimum), power supply voltage, and CPU/COM/MEM module memory errors. If any parameter exceeds the safe range, the module immediately disconnects the watchdog output (WDG OUT).
The Honeywell 10005/1/1 module itself uses a 2-out-of-3 voting system to fully test the function. The maximum output current is 900 mA. If the load current demand exceeds the limit, a watchdog repeater (WDR, 10302/1/1) is required to share the load.
Function & Features
- Maximum Application Cycle Execution Time: The Honeywell 10005/1/1 checks whether the processor is executing the program correctly and not stuck in an infinite loop (hang).
- Minimum Application Cycle Execution Time: The Honeywell 10005/1/1 checks whether the processor is executing the program correctly and not skipping sections (runaway).
- Memory Error Logic: The Honeywell 10005/1/1 receives memory error signals from the CPU, COM (communication), and MEM (memory) modules. If an error occurs, it immediately de-energizes the watchdog output.
- Front-End Interface: The Honeywell 10005/1/1 module must be front-end connected to the 10005/O/1 module or the S-BUS (system bus) at the top of the central rack.
Specifications
|
Category |
Parameter |
Specification |
|
General |
Type number: |
Honeywell 10005/1/1 (01301*) |
|
Approvals: |
CE, TÜV, UL |
|
|
Software versions: |
All |
|
|
Space requirements: |
4 TE, 3 HE (= 4 HP, 3U) |
|
|
Power |
Voltage requirements: |
5 Vdc (175 mA, excludes WDG OUT current) |
|
Ripple content: |
< 50 mV p-p |
|
|
Input |
ESD1 input: |
5 mA |
|
Reset input: |
10 mA |
|
|
ESD2 input: |
10 mA |
Notes：
Suffix Code 01301: Functionally identical to standard 10005/1/1 modules, with improved production yield.
Safety Warning: Do not remove/replace the module while the Central Part is powered on.
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
A:Watchdog Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
