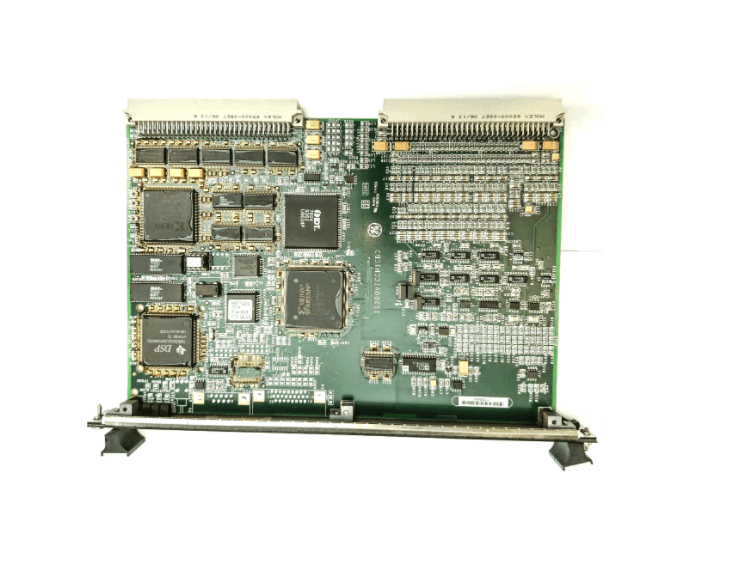

General Electric IS200VTCCH1C Thermocouple Processor Board
Item Number: IS200VTCCH1C
Brand: GE
Lead Time: In stock
Description: Thermocouple Processor Board
Payment: T/T
Product Description
GE IS200VTCCH1C is a thermocouple processor board in the GE Mark VI series, dedicated to acquisition and processing of 24-channel thermocouple signals in industrial control systems. It supports a variety of thermocouple types (E/J/K/S/T), has cold-end compensation and redundant architecture support, and the VME backplane is a 96-pin connector.
Function & Features
- Thermocouple input: IS200VTCCH1C supports 24 thermocouples (types: E, J, K, S, T), connected to the TBTC terminal board (J3/J4 interface) in two groups.
- Input configuration: IS200VTCCH1C can be grounded or ungrounded.
- Cable requirements: Maximum two-wire resistance ≤450Ω, maximum distance 300 meters (984 feet).
- Cold junction compensation (CJC): IS200VTCCH1C uses dual cold junction reference devices (one each for J3/J4) to automatically calculate average compensation.
Specifications
|
Parameter |
Details |
|
Model |
IS200VTCCH1C |
|
Thermocouple Types |
E, J, K, S, T (configurable via software) |
|
Input Channels |
24 channels (12 channels for J3, 12 channels for J4) |
|
Accuracy |
±1°F (including cold junction compensation error) |
|
Cable Resistance |
≤450Ω (two-wire) |
|
Redundancy Support |
Simplex (TBTCH1C) / TMR (TBTCH1B) |
|
Weight |
0.6kg |
|
Connectors |
-Front End: 2×34 - pin high - density connectors (J3/J4) -Rear End: 96 - pin VME connector |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Thermocouple Processor Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
