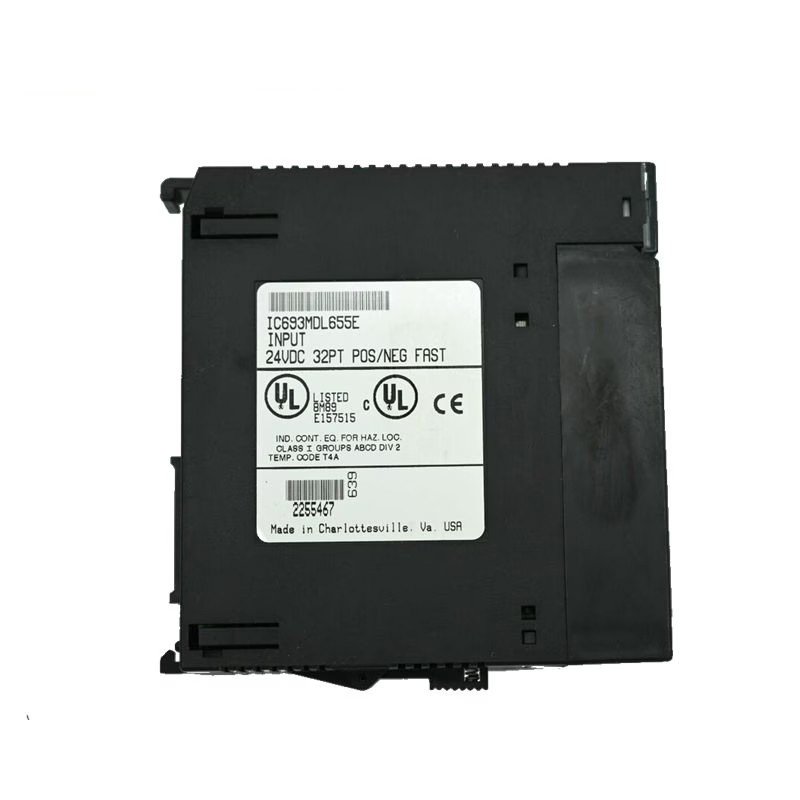

GE Fanuc IC693MDL655E Input Module

The GE Fanuc IC693MDL655E is a 24V DC Positive/Negative Logic Input module designed for use with GE Fanuc Series 90-30 Programmable Logic Controller (PLC) systems. This module provides 32 discrete input points, divided into four isolated groups, allowing for the connection of various industrial devices like proximity sensors, push buttons, and switches. It supports both positive and negative logic, making it adaptable for different automation needs. The module is built to integrate seamlessly with the Series 90-30 PLC, ensuring reliable performance in applications such as machine control, process control, material handling, and robotics.

Technical Specifications

• Input Points: 32 discrete input points
• Input Voltage: 24V DC
• Logic Type: Positive/Negative logic, selectable for each input
• Isolation: Inputs are divided into four isolated groups, with each group having a shared common for the eight points in that group
• Input Device Compatibility: Supports devices like proximity sensors, push buttons, and switches
• PLC Compatibility: Designed specifically for GE Fanuc Series 90-30 PLC systems
• Operating Environment:
  • Temperature Range: Typically from 0°C to 60°C (32°F to 140°F)
  • Humidity: 5% to 95% (non-condensing)
• Mounting Type: Rack-mounted within the GE Fanuc Series 90-30 chassis
• Dimensions: Standard module dimensions for Series 90-30 PLC systems
• Compliance: CE marked for European Union standards
