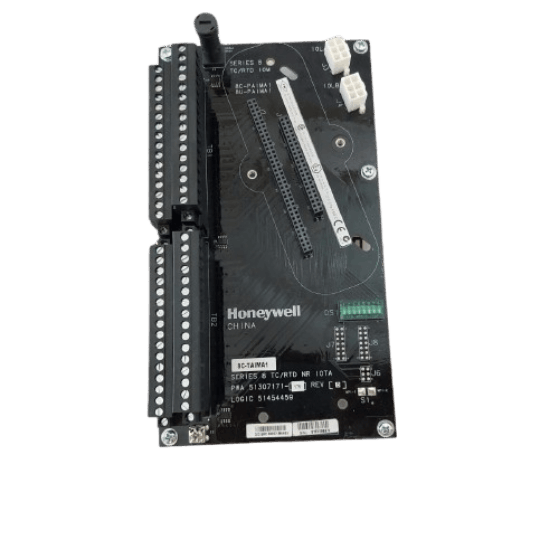

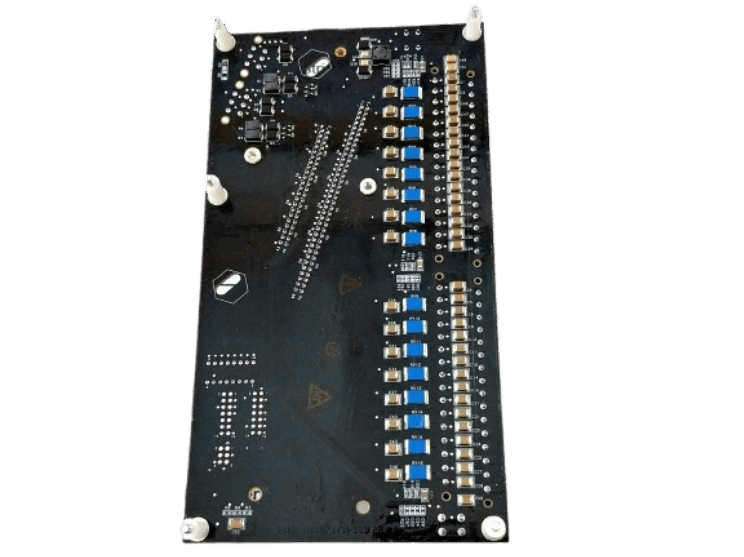

Honeywell 8C-TAIMA1 TC/RTD IOM Module
Item Number: 8C-TAIMA1
Brand:Honeywell
Lead Time: In stock
Description:TC/RTD IOM Module
Payment: T/T
Product Description
Honeywell 8C-TAIMA1 TC/RTD I/O Module is a temperature signal input module designed for thermocouples (TC) and thermal resistors (RTD). It supports up to 16 channels of temperature input and can process two types of temperature signals: thermocouples (TC) and thermal resistors (RTD). 8C-TAIMA1 monitors temperature signals and supports 1 second fast scan, open circuit detection (OTD) and cold junction compensation (CJC).
Function & Features
- Cold Junction Compensation (CJC): 8C-TAIMA1 has built-in integral cold junction compensation to reduce the impact of ambient temperature on TC measurement and supports remote CJC.
- Open Circuit Detection (OTD): Configurable OTD function automatically detects sensor open circuit faults within a 1-second scan cycle. If an open circuit is detected, NAN (not a number) is output and a soft fault flag is triggered to prevent invalid data from affecting the control logic.
- No delay processing: OTD detection is completed synchronously with PV (process variable) sampling without increasing system delay.
Specifications
|
Category |
Parameter |
Specification |
|
Model |
Series 8 |
8C-TAIMA1 |
|
Input Type |
Supported Sensors |
Thermocouple (TC) and/or RTD |
|
Electrical Ratings |
Voltage Rating |
24 VDC |
|
Module Current Consumption |
120 mA max |
|
|
Temperature Range |
Operating Temperature |
0 to 60 °C |
|
Storage Temperature |
-40 to 85 °C |
|
|
Signal Performance |
Channel Bandwidth (-3 dB) |
0 to 4.7 Hz |
|
Nominal Input Range (TC only) |
-20 to +100 millivolts |
|
|
Input Impedance (TC only) |
1 MΩ at DC |
|
|
Long-Term Drift |
500 ppm (accuracy degradation over time) |
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
A:TC/RTD IOM Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
