Honeywell 10205/2/1 Fail-safe Analog Output Module
Item Number: 10205/2/1
Brand:Honeywell
Lead Time: In stock
Description:Fail-safe Analog Output Module
Payment: T/T
Product Description

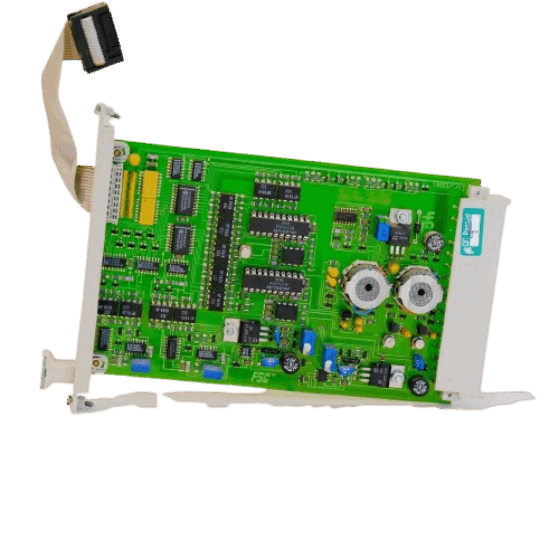

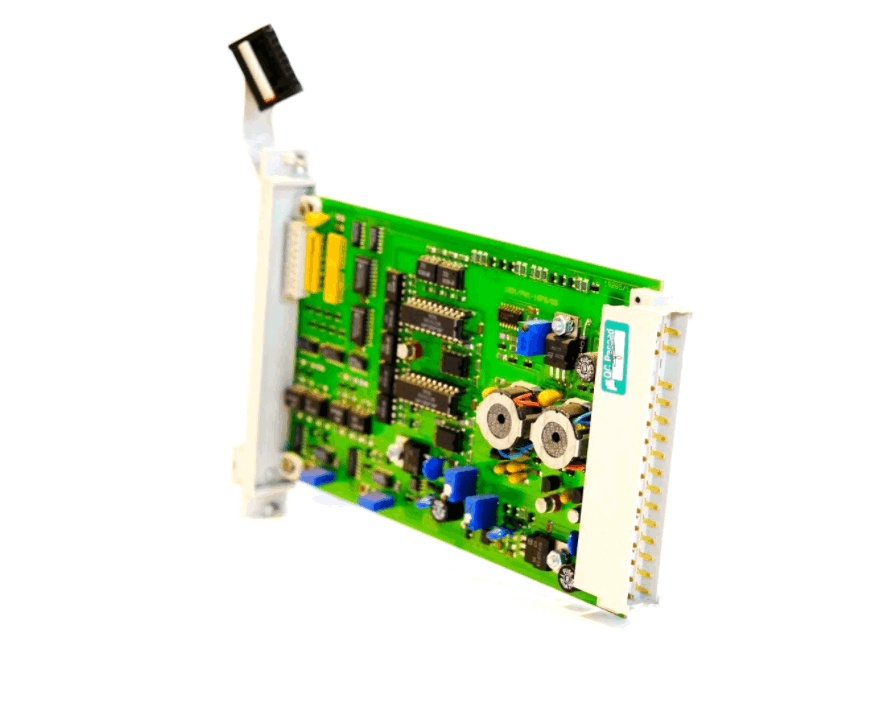

Honeywell 10205/2/1 fail-safe analog output module is designed for analog control applications and has 2 0 (4)-20 mA output channels. The load is limited to resistive or capacitive. Inductive load will cause the module to fault. The 2 analog outputs are electrically isolated from 24 Vdc and 5 Vdc. The 0 V 1 and 0 V 2 pins on the module are connected to each other. Each output channel consists of a 12-bit D/A converter for output value and an A/D converter for reading the output value. The A/D can be used to verify the working status of the D/A.
Function & Features
- Self-checking mechanism: The 10205/2/1 channel has 12-bit D/A and A/D converters, and uses A/D to check D/A in real time, combined with the test of output value accuracy, power-off capability, and channel crosstalk within the process safety time.
- Adaptation and safety assurance: When 10205/2/1 is matched with an I/O backplane, it can be adapted through the 10205/A/… module; each output has a secondary power-off mode, which is not affected by the application value result, and the watchdog or processor can force the output to shut down.
- Configuration and usage restrictions: 10205/2/1 only supports non-redundant I/O configurations and clear usage boundaries; there are requirements for power connection and unused output processing, and following the specifications can avoid self-check misjudgment.
Specifications
|
Category |
Parameter |
Specification |
|
General |
Type number: |
10205/2/1 (11600) |
|
Approvals: |
CE, TÜV, UL |
|
|
Software versions: |
≥ 3.00 |
|
|
Space requirements: |
4 TE, 3 HE (= 4 HP, 3U) |
|
|
Power |
5Vdc requirement: |
30 mA |
|
24Vdc requirement: |
65 mA + 30 mA per active output |
|
|
Output |
Number of channels: |
2 (galvanically isolated from supply; 0V1 & 0V2 interconnected) |
|
Output range: |
0-20 mA / 4-20 mA (active or passive) |
|
|
D/A converter: |
12-bit |
|
|
Off-state current: |
< 0.05 mA |
|
|
Active loop powering: |
Max loop resistance: 1kΩ Max output voltage: 30Vdc |
|
|
External powering (passive): |
Max voltage: 40Vdc Min voltage drop: ≤7.5V |
|
|
WDG input current: |
0.5 mA |
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
A:Fail-safe Analog Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
