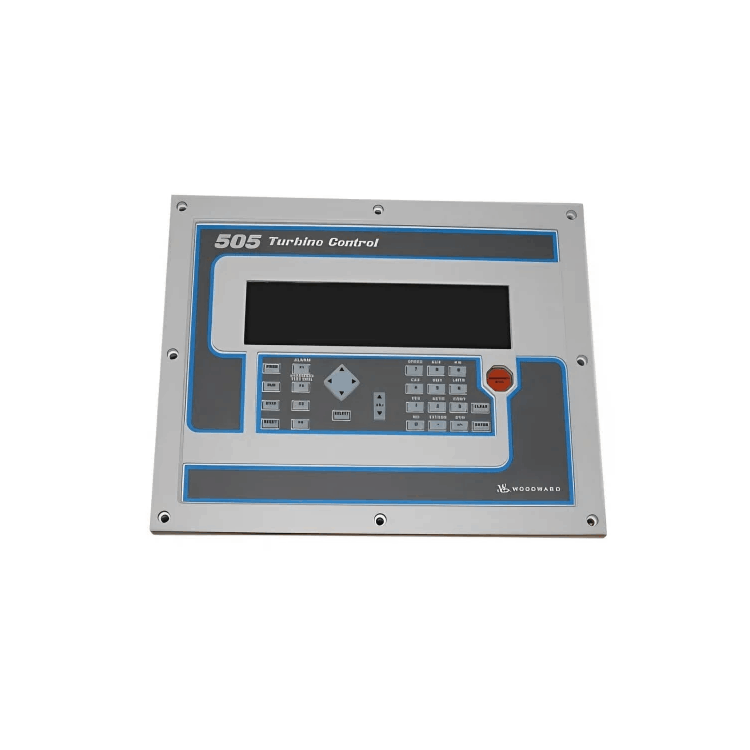

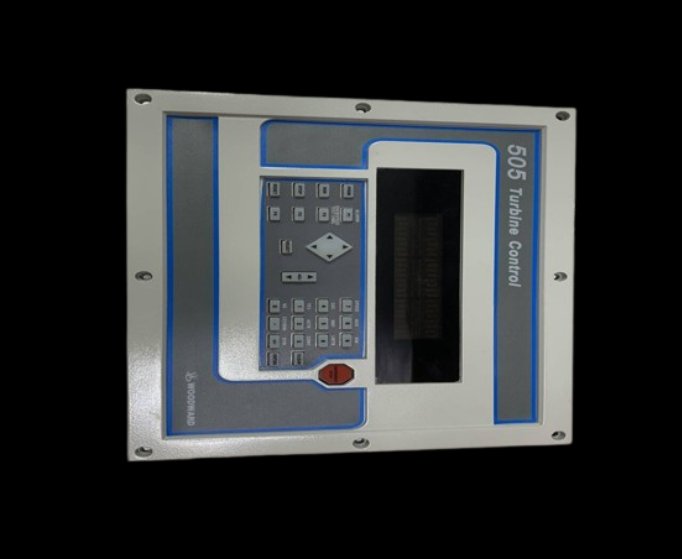

Woodward 9907-167 505E Digital Governor
Item Number:9907-167
Brand:Woodward
Price:$1
Lead Time: In stock
Description:505E Digital Governor
Payment: T/T
Product Description

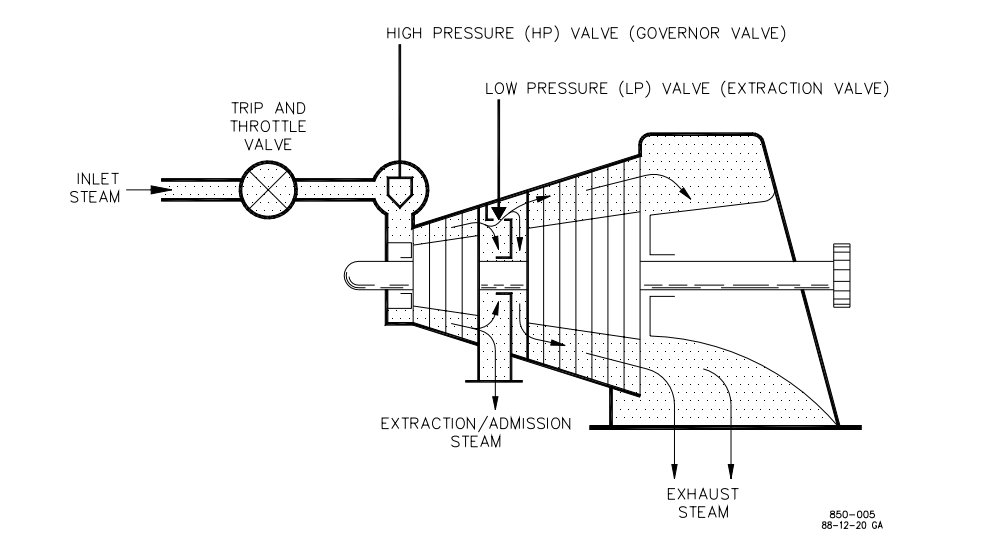

Woodward 9907-167 505E Digital Governor is a device used to control extraction, extraction/inlet or inlet steam turbines. It coordinates the operation of the high pressure (HP) and low pressure (LP) regulating valves to control the speed (or load) and extraction/inlet pressure (or flow). It can also be used to control or limit other turbine-related process parameters such as turbine inlet pressure or flow.
Function & Features
1.9907-167 supports all types of steam turbines:
- Extraction steam turbine: 9907-167 controls steam output through LP valve (equipped with check valve to prevent backflow).
- Supplementary steam turbine: 9907-167 allows low-pressure steam to enter through LP valve (equipped with stop valve/quick-close valve to ensure safety).
- Extraction/Supplementary steam turbine: bidirectionally adjust steam flow according to system requirements.
2. Triple control channels:
- Speed/load controller: main control channel
- Auxiliary controller: also serves as secondary control or limiting channel
- Cascade controller: directly adjusts speed setting value
Specifications
|
Category |
Specification |
|
Model |
9907-167 |
|
Control Type |
32-bit microprocessor-based |
|
Valve Control |
HP & LP valves (with linearization curves) |
|
Speed Inputs |
2 configurable channels (MPU or proximity probes) |
|
6 total (1 isolated for self-powered signals) |
|
|
Relay Outputs |
8 Form-C (2 dedicated to alarm/shutdown) |
|
• 2 Modbus ports (RS-232/422/485, ASCII/RTU protocols) • 1 PC configuration port |
|
|
Display |
Dual-line LCD (24 characters per line) |
|
Internal 24 Vdc power for external devices: • VA1: 24 Vdc ±10%, 200 mA max • Breaker-protected outputs • Connection terminals: 55, 59, 63, 70, 74 (78 as common) |
FAQ
Q: What is the brand?
A:Woodward
Q: What is the type?
A: 505E Digital Governor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
