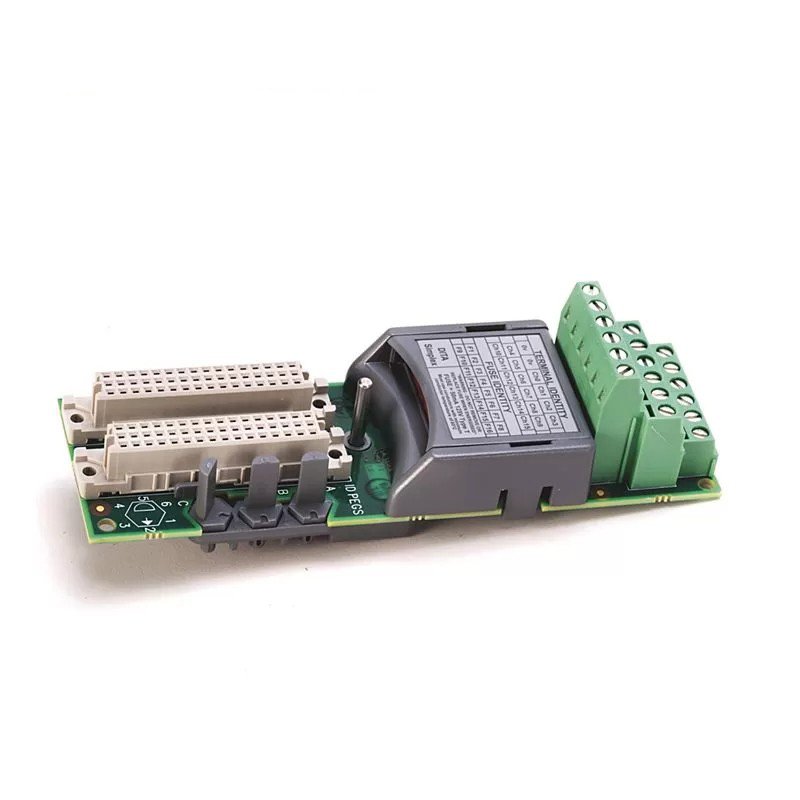

Allen-Bradley 1715-TASIF16 Termination Assembly Module

Allen-Bradley 1715-TASIF16 is a termination assembly module designed for the Redundant I/O system. It specifically connects with the 1715-IF16 analog input module, providing a reliable interface between field devices and the control system.

Key Features and Specifications

• Module Type: Termination Assembly – Analog Input Simplex
• Modules Supported: 1715-IF16
• Screw Torque: 0.5 N-m
• Power Dissipation: 4 Watts Maximum
• Wire Size: 22 to 16 AWG
• Enclosure: IP20 (not water-resistant)
• Mounting: DIN rail
• Operating Temperature: -25 to 70 °C (-13 to 158 °F)

What It Does

• Provides a Physical Connection: The 1715-TASIF16 connects analog input signals to the 1715-IF16 module securely.
• Ensures Signal Integrity: It maintains signal quality by reducing noise and interference.
• Facilitates Installation: The DIN rail mounting and compact design simplify installation.

Applications

The 1715-TASIF16 is used in:

• Industrial Automation: Integrates input signals for automated systems.
• Process Control: Ensures accurate measurement in control processes.
• Machine Control: Connects analog inputs for machine operation.
• Building Automation: Manages input signals in building control systems.
