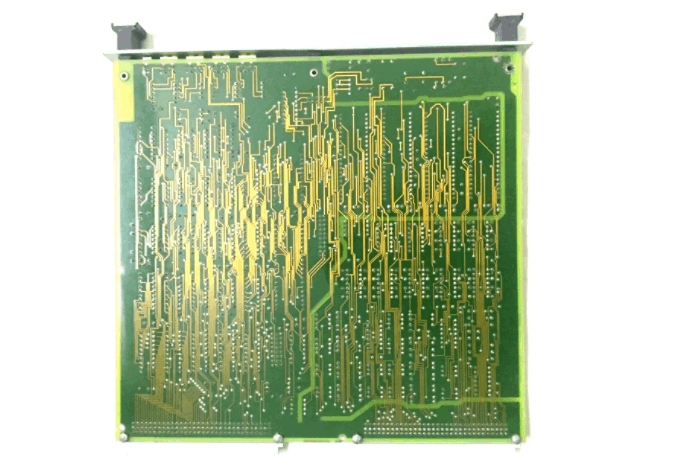

ABB DSCA 114 57510001-AA Asynchronous Communication Board
Item Number:DSCA 114 57510001-AA
Brand: ABB
Lead Time: In stock
Description:Asynchronous Communication board
Payment: T/T
Product Description
The DSCA 114 is an asynchronous communication interface board developed by ABB. It communicates based on RS-232/V24. Under the RS-232/V24 standard, the communication distance is typically up to 15 meters (the actual distance is affected by cable quality and baud rate). It supports an adjustable baud rate from 300 to 115200 baud. The module uses a DB9/DB25 connector and provides transmit (Tx) and receive (Rx) status indicators.
Function & Features
- DSCA114 data frame format: Start bit + 5-8 data bits + optional parity bit (odd/even/none) + 1-2 stop bits.
- Connector Type: The DSCA114 is equipped with a 9-pin DB9 connector (default) or a 25-pin DB25 connector (optional). The pinout conforms to the EIA/TIA-232 standard.
- Asynchronous Communication: The DSCA114 detects a low-level start bit to trigger reception and uses the stop bit to determine the end of the frame. Both parties achieve timing synchronization using independent clock sources. Summarize in one word.
Specifications
|
Category |
Details |
|
Product Model |
DSCA 114 |
|
Part Number |
57510001-AA |
|
Communication Standard |
RS-232/V24 (EIA-232-D) |
|
Connectors |
1×DB9 Male + 1×DB25 Female |
|
Baud Rates |
300/600/1200/2400/4800/9600/19200/38400/57600/115200 bps |
|
Data Format |
Configurable (Data bits: 5 - 8, Stop bits: 1 - 2, Parity: Odd/Even/No parity) |
|
Weight |
350g ±5% |
|
Optional Accessories |
- Mounting Bracket Kit: ACC-DSCA-01 - Communication Cable Set: CAB-DSCA-01 - Spare Fuse: FUSE-DSCA-01 |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:Asynchronous Communication board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
