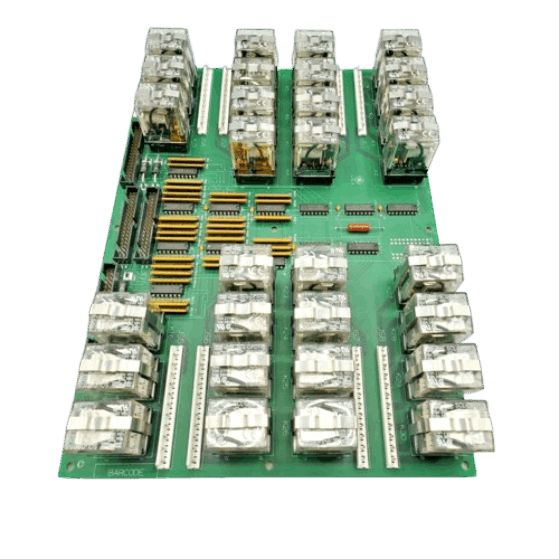

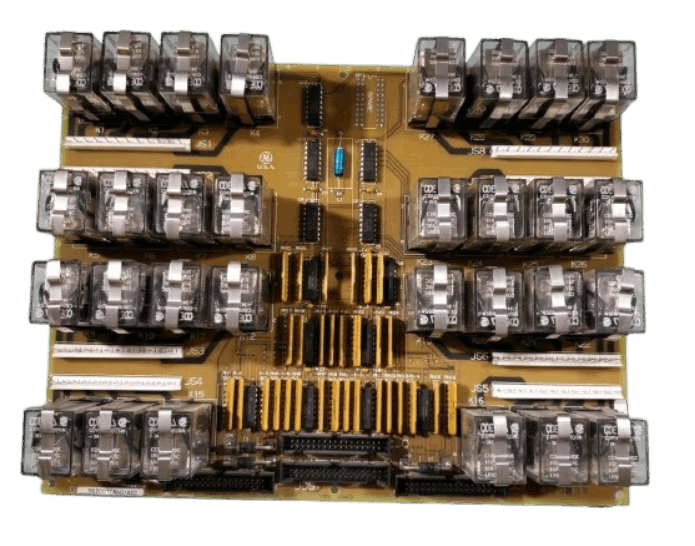

General Electric DS200TCRAG1A Relay Output Board
Item Number: DS200TCRAG1A
Brand: GE
Lead Time: In stock
Description: Relay Output Board
Payment: T/T
Product Description
DS200TCRAG1A is one of the components of GE Mark V LM series gas turbine control system. As a relay output board of digital I/O core, it is designed for Speedtronic turbine control system. This board realizes switch control through up to 30 relays (K1-K30), and is mainly used in gas turbine fuel valve control, ignition transformer management, emergency shutdown system, etc.
Function & Features
- Solenoid valve drive: The first 18 relays in position 4 (Q51) can be configured as solenoid valve power supply, and the first 16 relays in position 5 (Q11/Q51) support the same configuration.
- High voltage control: DS200TCRAG1A provides 120/240V AC power (from PD core) through J19/J20 connector, and wet contact output #47-#48 is dedicated to high voltage loads such as ignition transformers.
- Control command source: TCDA digital core board writes relay action commands
Specifications
|
Parameter |
Details |
|
Model |
DS200TCRAG1A |
|
Maximum Relays |
30 relays/board |
|
Contact Rating |
5A @ 30VDC / 2A @ 250VAC |
|
120/240V AC via DTBD terminal board |
|
|
Series Compatibility |
Mark V LM Speedtronic Control System |
|
Wetted Contact Outputs |
#47-#48 (120/240V AC) |
|
Contact Material |
Gold-plated contacts |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A:Relay Output Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
