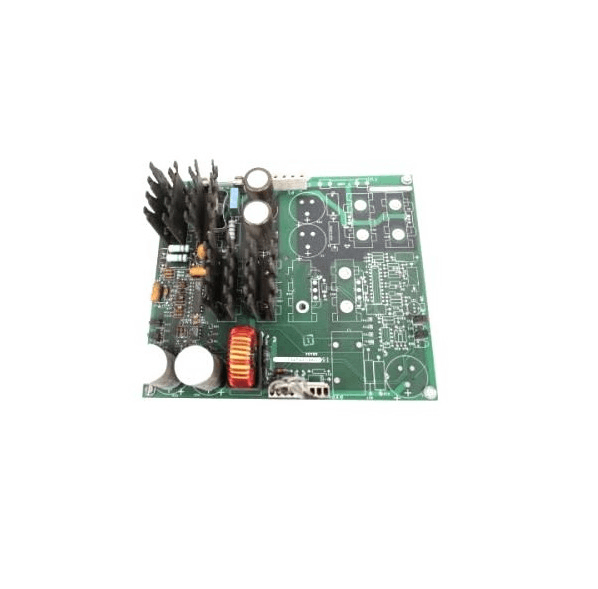

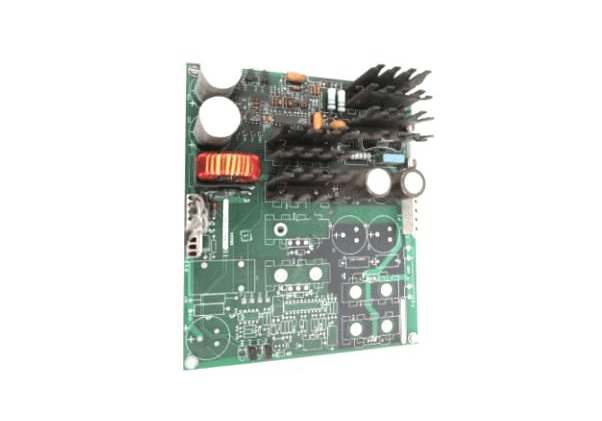

General Electric IS200IGPAG2A IS200IGPAG2AED Gate Drive Power Supply Board

The GE IS200IGPAG2A and IS200IGPAG2AED are gate drive power boards that provide gate drive power to power semiconductor components such as thyristors and IGBTs (Insulated Gate Bipolar Transistors) in industrial applications. These boards are primarily used in the EX2100 excitation control system and other GE industrial systems to enable components to control power semiconductors in high voltage or high current environments.

Function & Features

• The GE IS200IGPAG2A (IS200IGPAG2AED) converts signal levels from low-voltage control circuits (such as microcontrollers) to the higher voltages required for gate drive.

• The GE IS200IGPAG2A (IS200IGPAG2AED) features voltage regulation, maintaining gate drive voltage during input voltage fluctuations or load changes.

• The GE IS200IGPAG2A (IS200IGPAG2AED) provides fast charge and discharge currents for the gate capacitance of power devices, supporting high-speed switching.

Specifications
