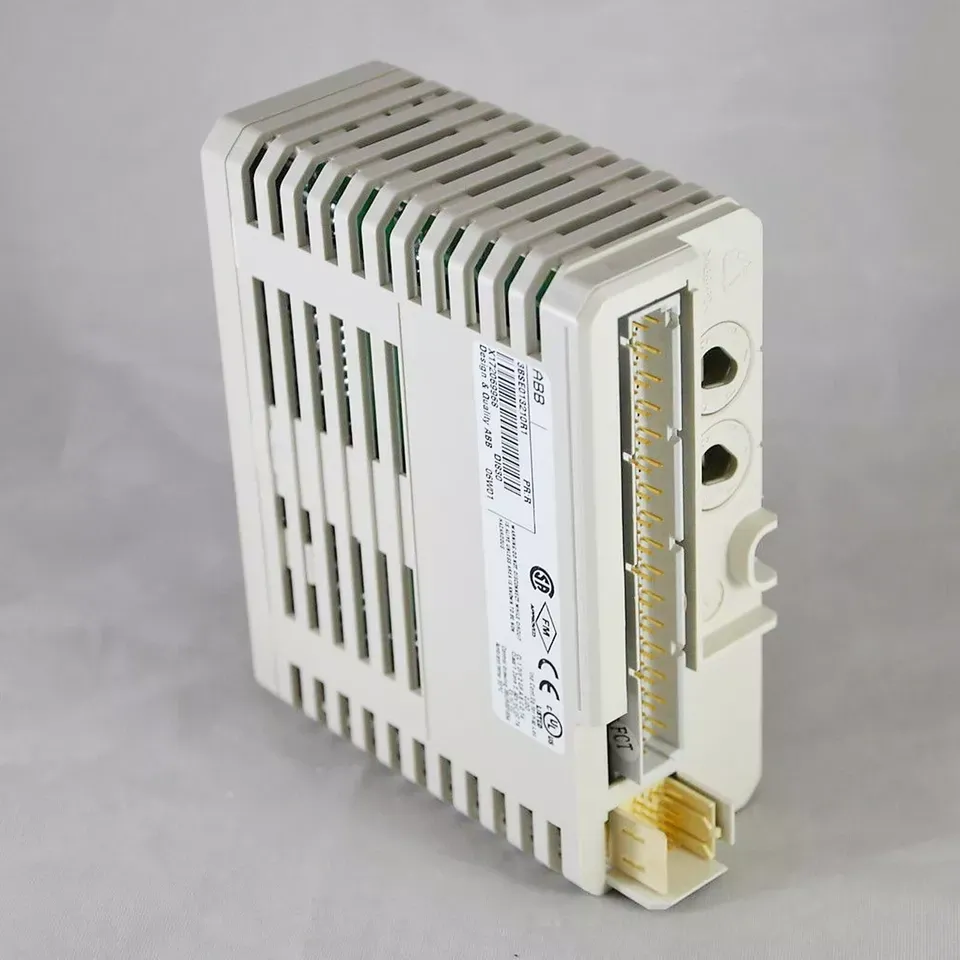

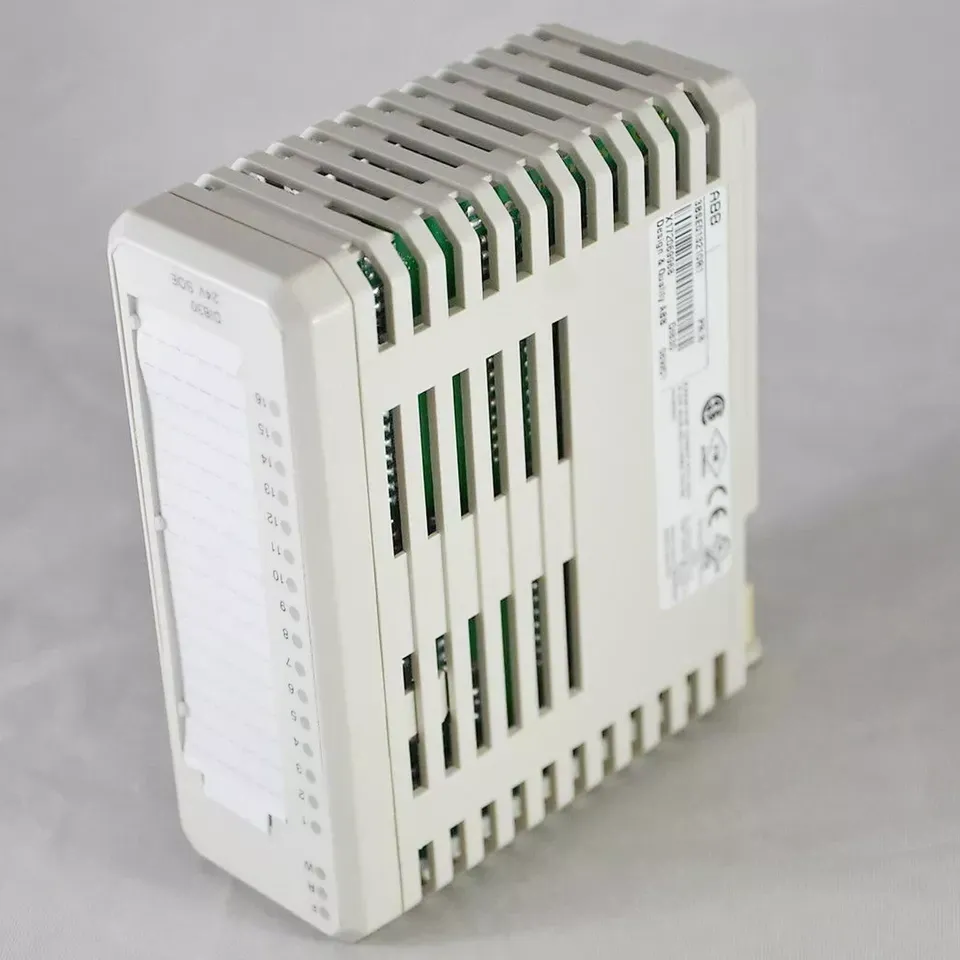

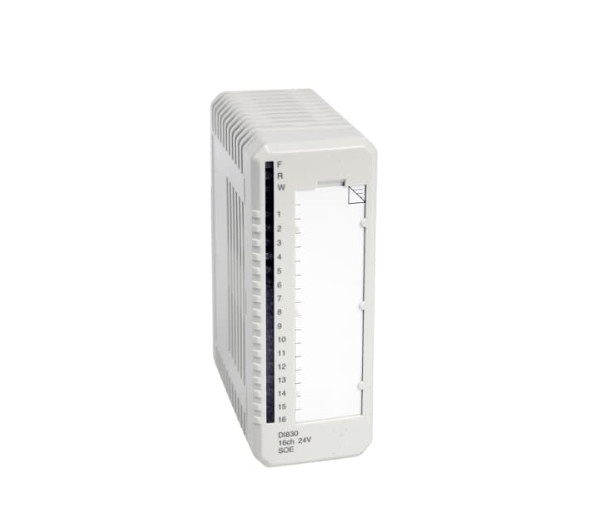

ABB DI830 3BSE013210R1 Digital Input Module
Item Number:DI830 3BSE013210R1
Brand: ABB
Lead Time: In stock
Description:Digital Input Module
Payment: T/T
Product Description
ABB DI830 is a 16-channel 24 V DC digital input module for the S800 I/O system. It accepts an input voltage range of 18 to 30 V DC and has a current consumption of 6 mA at 24 V DC. Each input channel includes current limiting components, EMC protection, input status indication LEDs, and an optical isolation barrier. The DI830 module monitors process power, detects full event queues, and checks for lack of time synchronization, all of which can trigger warnings. The module also features digital input signal filtering with a customizable filter time range of 0 to 100 milliseconds, enabling it to filter out short pulses and pass on longer pulses.
Fuctions & Features
- Input channels: 16 channels for 24 V DC input, current sinking.
- Isolation and monitoring: 2 independent groups of 8 channels each, with voltage monitoring.
- Input status indication: Input status indicator.
- Functional features: Sequence of events (SOE) function.
- Filtering features: Shutter filter, filter time can be set from 0 to 100 ms.
Specification
| Input voltage range, "0" | -30..+5 V |
| Input voltage range, "1" | 13..30 V |
| Input impedance | 3.2 kΩ |
| Isolation | Groupwise isolated from ground |
| Filter times (digital, selectable) | 0...100 ms |
| Current limiting | Sensor power can be current limited by the MTU |
| Maximum field cable length | 600 meters (656 yards) |
| Event recording accuracy | -0.3 ms...+0.7 ms |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
