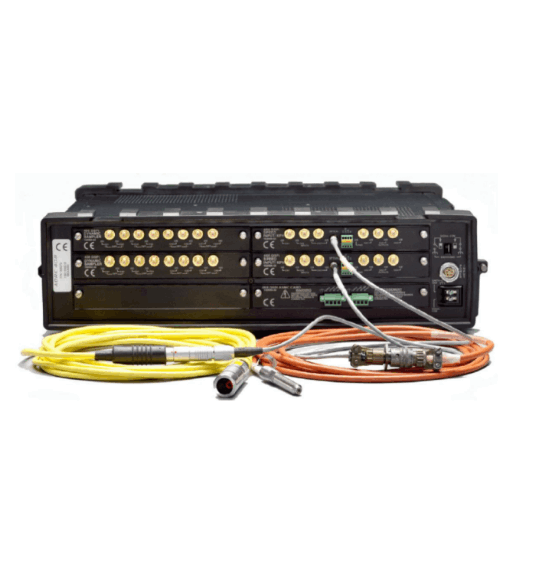

Bently Nevada 168905-02 ADRE 408 DSPi Condition Monitor
Item Number: 168905-02
Brand: Bently Nevada
Lead Time: In stock
Description: ADRE 408 DSPi Condition Monitor
Payment: T/T
Product Description
Bently Nevada 168905-02 ADRE 408 DSPi Condition Monitoring System consists of 408 DSPi (Dynamic Signal Processing Instrument) and ADRE Sxp software. The system combines the functions of multiple instruments such as oscilloscope, spectrum analyzer, filter, signal conditioner, digital recorder, etc. into a single platform, which can be operated remotely via LAN/WAN, and can also store data in "stand-alone mode" without an external computer, requiring very little additional equipment.
Function & Features
- 168905-02 supports almost all standard and non-standard input types, including dynamic sensor signals (such as proximity probes, velocity sensors, accelerometers, force hammers, dynamic pressure sensors) and static signals (such as transmitters and distributed control system process variables).

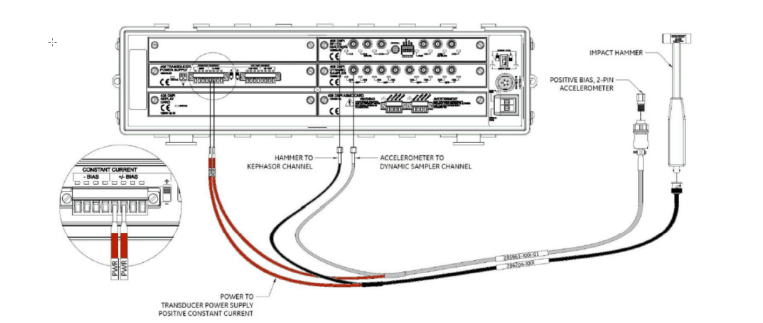

- In structural analysis, 168905-02 supports force hammer impact testing; supports multiple trigger modes and can be used as an unattended data or event recorder.
- 168905-02 can directly start sampling and triggering manually (no ADRE Sxp software is required); LED indicators show sampling and triggering status; support downloading multiple sampling configurations and selecting them from the panel.
- Client-Server Architecture: 168905-02 supports multiple software clients to operate and view data from single/multiple 408 DSPi systems simultaneously, and users can independently select to view data in any basic measurement unit.
Specification
|
Parameter |
Details |
|
Model |
168905-02 |
|
Parameter |
Slots 1 through 4 in 408 DSPi chassis |
|
Compatible Slots |
24-bit |
|
A/D Converter Resolution |
- Single-ended: 742 kΩ - Differential: 1.484 MΩ (between Sig+ and Sig-) |
|
Input Impedance |
- Single-ended: 8 channels - Differential: 4 channels |
|
Channel Count |
±25 V (maximum) |
|
Input Voltage Range |
-AC: 0.7 to 10 V -DC: 0.35 to 50 V |
|
Configurable Full Scale Range |
Internal SSD: 480 GB or 960 GB |
FAQ
Q: What is the brand?
A: Bently Nevada
Q: What is the type?
A: ADRE 408 DSPi Condition Monitor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
