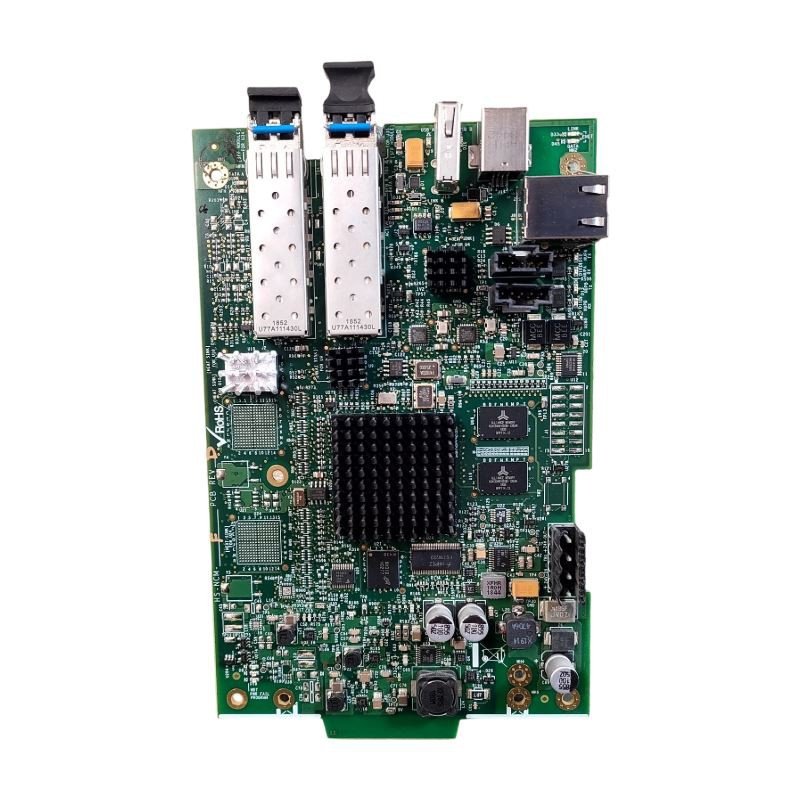

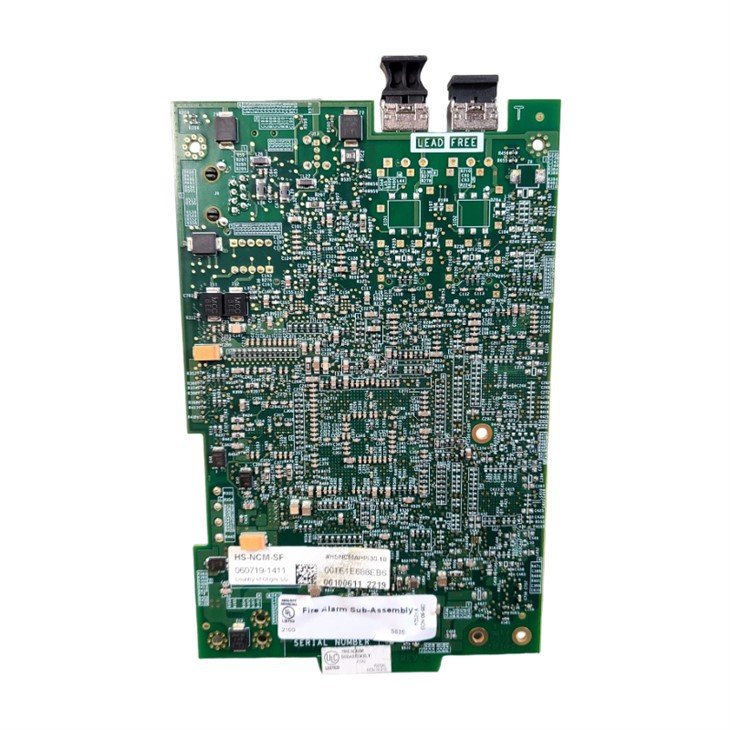

Honeywell HS-NCM-SF Network Communication Module
Item Number: HS-NCM-SF
Brand:Spares
Lead Time: In stock
Description: Network Communication Module
Payment: T/T
Product Description
Honeywell HS-NCM-SF is a network communication module for NOTIFIER® fire alarm systems. It provides an interface for NOTIFIER series fire alarm control panels (such as NFS-320, NFS2-640, NFS2-3030, etc.), network control displays (NCD, NCA), and digital voice commanders (DVC) to access the NOTI•FIRE•NET™ (NFN) network.
In addition, the HS-NCM-SF single module can support up to 2 node addresses (for example, providing network communication for an N16 panel and an NCD display at the same time) and defaults to repeater mode when no fire alarm panel is connected.
Specifications
|
Parameter |
Details |
| Part Number | HS-NCM-SF |
| Fiber Type | 9/125 μm (single - mode) |
| Operating Wavelength | 1310 nm |
| Maximum Allowable Attenuation | 30 dB (for long - distance) |
| Connector Type | LC interface |
| Node Address Capacity | Supports 2 node addresses |
| Weight | 5.2 ounces (147.4 grams) |
Function & Features
- Dual-node address support: One HS-NCM module can provide network addresses and communication services for up to two devices (such as a control panel and an alarm display panel), saving hardware costs.
- Repeater Mode: When not directly connected to a fire alarm control panel, the HS-NCM-SF can be configured in repeater mode to extend network signal transmission distance or bridge data between network segments using different media (such as cable and fiber).
- Programming Interface: The HS-NCM-SF provides two network ports, allowing the module to be connected to a fire alarm control panel and simultaneously connected to a programming computer.
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
