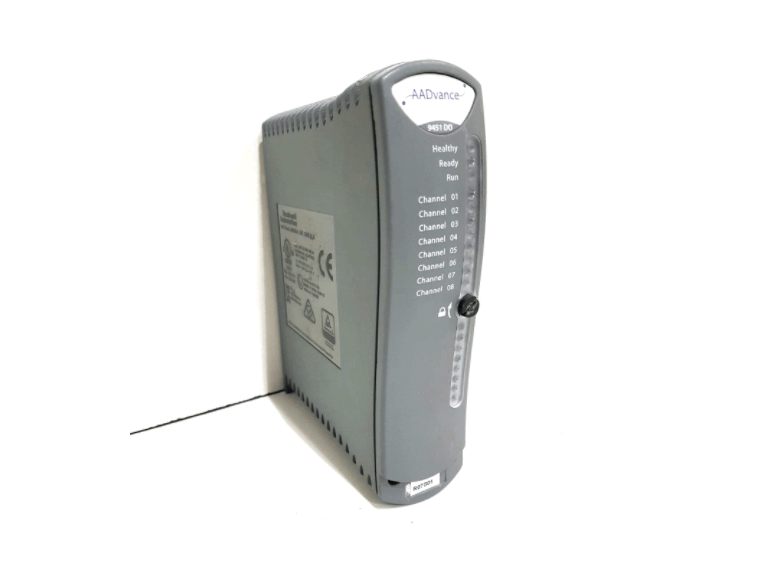

ICS T9451 Digital Output Module
Item Number:T9451
Brand:ICS Triplex
Price:$1
Lead Time: In stock
Description:Digital Output Module
Payment: T/T
Product Description
ICS T9451 digital output module is an 8-channel digital output module that supports 1A @ 32V DC load switching capability and has voltage/current monitoring, reverse current protection, and short/open circuit detection functions. Its design complies with the Fail-Safe principle to prevent output channels from being "stuck" or malfunctioning.
Function & Features
- The T9451 features voltage and load current monitoring, and each channel has overload protection (activated when the load exceeds the safety limit).
- The T9451 has no single point of failure that can cause a "stuck on" risk, and the outputs can be shut down normally as required.
- The T9451 supports short-circuit and open-circuit monitoring for all output channels.
- The processor module of the T9451 performs a test sequence for each output channel, checking the "stuck on" or "stuck off" state of the switch pair.
Specifications
|
Parameter |
Specification |
| Model | T9451 |
|
Voltage |
Redundant +24 Vdc nominal; 18 Vdc to 32 Vdc |
|
Module supply power dissipation |
3.0 W (10.2 BTU/hr.) |
|
Output Voltage: Maximum voltage without damage |
-1 V to +60 Vdc |
|
Output Voltage: Operating field supply voltage |
18 Vdc to 32 Vdc |
|
Maximum Field Voltage Slew Rate |
150 V/s [(2), (3)] |
|
Output current: |
1 A continuous for each channel |
|
Minimum current required for line monitoring |
10 mA for each module (20 mA for dual pair) |
|
Maximum voltage drop |
1 Vdc |
|
Maximum current at de-rated temperature; De-rated current at maximum temperature |
8 A all channels @ 60 °C; 6 A all channels @ 70 °C |
|
Maximum De-energised Output Voltage Slew Rate |
12 V/ms (4) |
|
Maximum Energised Output Current Slew Rate |
0.9 A/ms (4) |
|
Output off resistance (effective leakage) |
50 KΩ |
|
Voltage monitoring accuracy |
± 0.5 V |
|
Current monitoring accuracy |
± 10 mA |
FAQ
Q: What is the brand?
A:ICS Triplex(Rockwell)
Q: What is the type?
A:Digital Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
