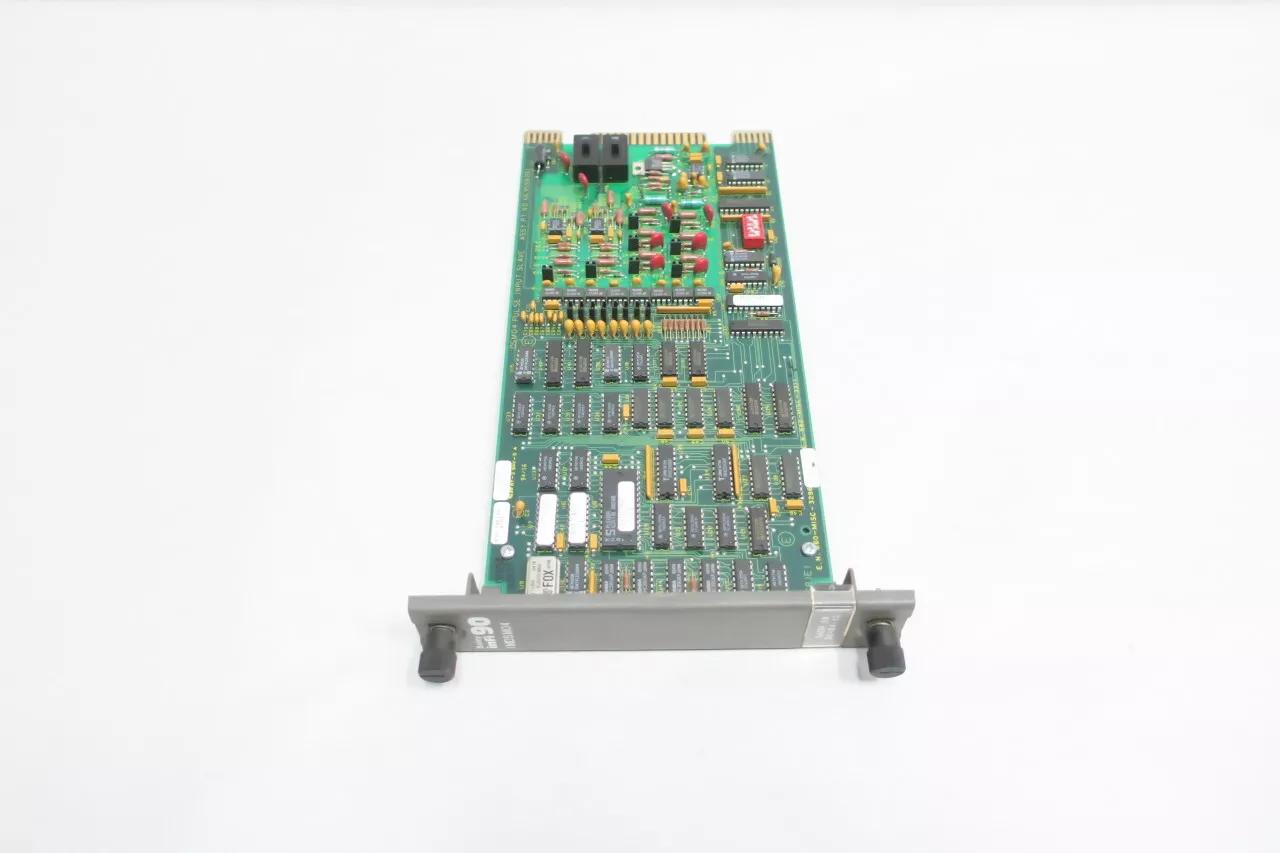

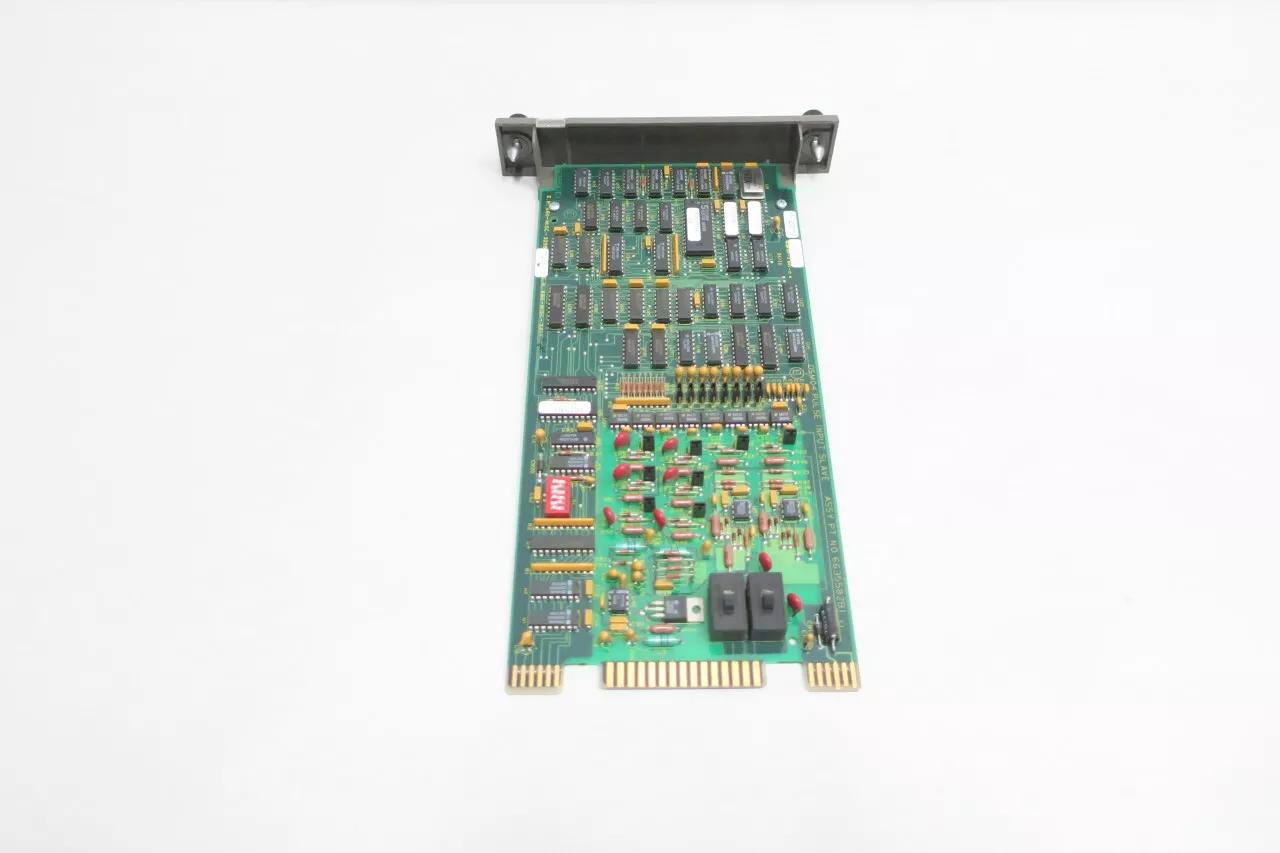

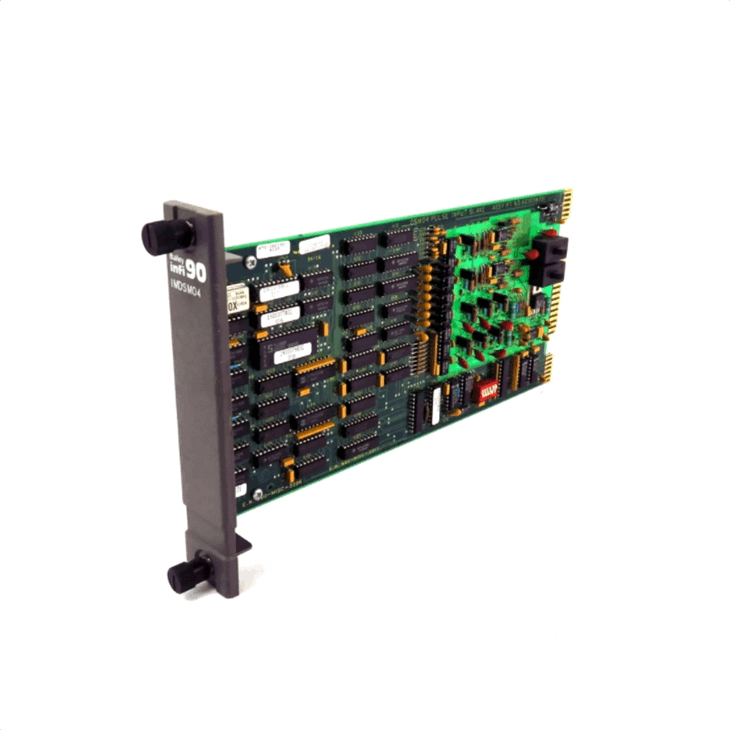

ABB IMDSM04 Pulse Input Slave Module
Item Number:IMDSM04
Brand: ABB
Lead Time: In stock
Description:Pulse Input Slave Module
Payment: T/T
Product Description
ABB IMDSM04 is a pulse input slave module (DSM) for the INFI 90® process management system. It is used to connect 8-channel field pulse signals to the system for the master module (such as the MFP multi-function processor) to perform process monitoring and control. Its core functions include signal conditioning, conversion and digital processing, supporting a variety of pulse types (such as low-amplitude pulses, sine waves, logic levels, dry contacts, etc.), and can be applied to flow monitoring, speed measurement, energy metering, event counting and other application scenarios.
Fuctions & Features
- Multi-mode operation:
- Accumulation mode: counts the number of pulse edges (such as flow meter counting).
- Frequency mode: measures the frequency of the input signal (such as speed monitoring).
- Period mode: calculates the pulse time interval (such as timing analysis).
- High resolution: 16-bit accuracy, supports frequency measurement up to 50 kHz. Low-frequency signal period measurement range 20 μs ~ 655×10³ seconds.
- Channel 1&2 dedicated: ABB IMDSM04 supports low-amplitude signals of 50 mV~10 V (peak-to-peak) (preamplifier required).
- Selectable trigger edge: ABB IMDSM04 supports rising or falling edge triggering.
- Adjustable response time: ABB IMDSM04 selects fast/slow response through jumpers to meet the de-jittering requirements of field equipment.
Specification
|
Parameter |
Specification |
|
Power Supply Voltages |
±5 VDC Logic Supply (±5%) |
|
±24 VDC I/O Supply (+12%, -10%) |
|
|
Current Consumption |
5 VDC: 1.4 A (typical), 1.5 A (max) |
|
24 VDC: 62 mA (typical), 70 mA (max) |
|
|
Input Voltages |
Range 1 (5 VDC Supply): 4.0 VDC to 6.0 VDC |
|
Range 2 (24 VDC Supply): 21.6 VDC to 27.0 VDC |
|
|
Range 3 (Preamplifiers): 50 mV (peak-to-peak) to 10 V (peak-to-peak) |
|
|
Max. Input Signal Current |
Range 1: 14.8 mA at 6 VDC |
|
Range 2: 8.4 mA at 24 VDC |
|
|
Range 3: 0.4 mA at 10 V (peak-to-peak) |
|
|
Logic 1 Input Voltages |
Range 1: 4 VDC (min), 6 VDC (max) |
|
Range 2: 21.6 VDC (min), 27 VDC (max) |
|
|
Range 3: 25.0 mV peak (min), 5 V peak (max) |
|
|
Logic 0 Input Voltages |
Range 1: 0 V (min), 1.0 V (max) |
|
Range 2: 0 V (min), 2.0 V (max) |
|
|
Range 3: -5 V peak (min), -25.0 mV peak (max) |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
A:Pulse Input Slave Module
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
