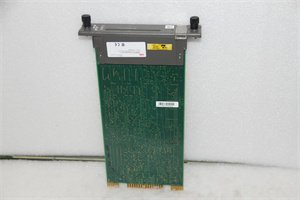

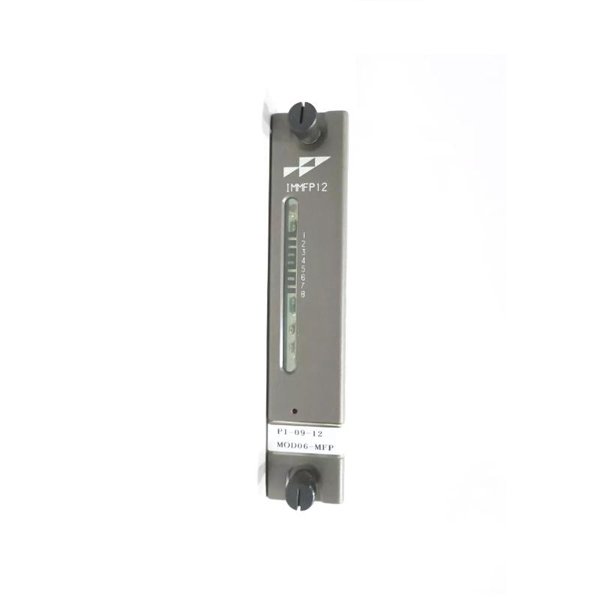

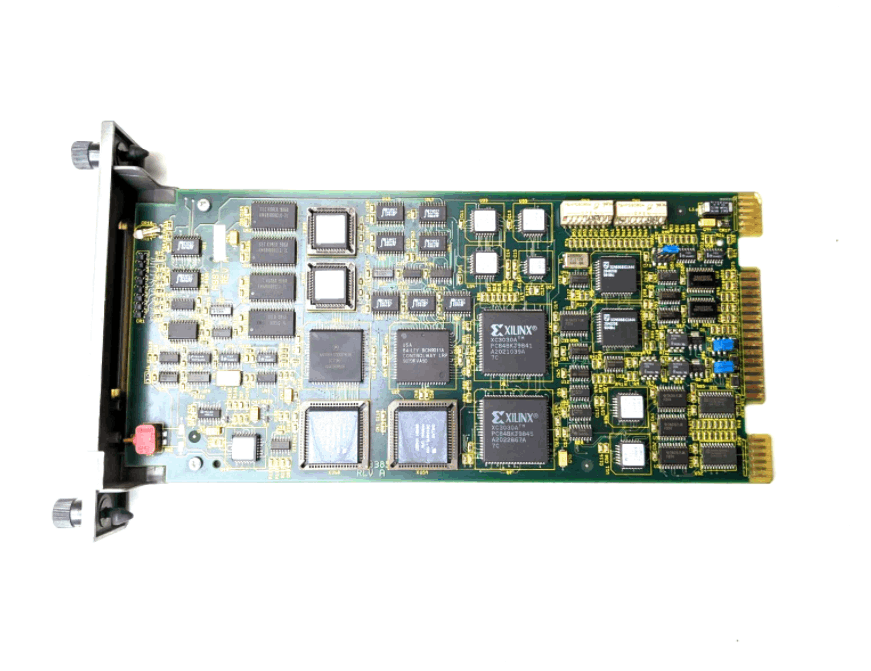

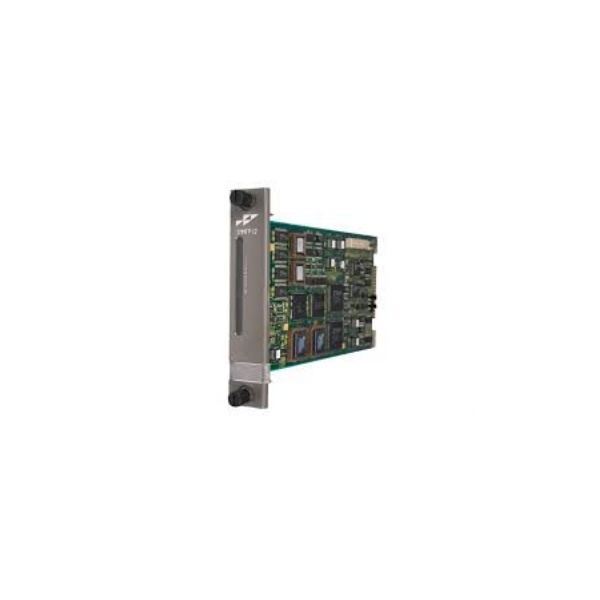

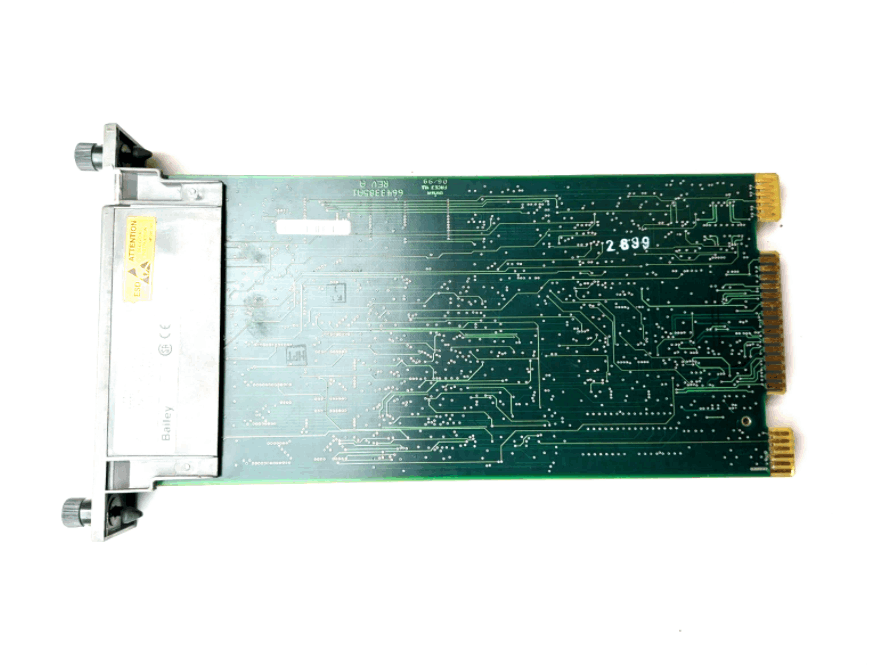

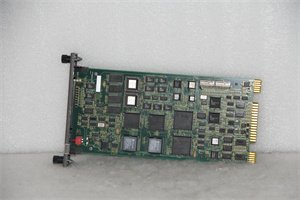

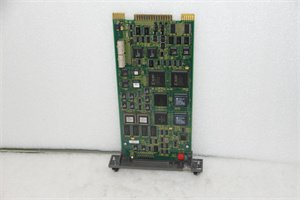

ABB IMMFP12 Multi-Function Processor Module
Item Number:IMMFP12
Brand: ABB
Lead Time: In stock
Description:Multi-Function Processor Module
Payment: T/T
Product Description
ABB IMMFP12 is the core multi-function processor module (MFP) of INFI 90® OPEN control system. It is a multi-loop analog, sequential, batch and advanced controller. The module has analog control, sequential logic, batch processing and advanced algorithm functions, supports multi-loop regulation and real-time data acquisition, and provides true peer-to-peer communication capabilities. The MFP module has three operating modes: execution, configuration and error. In execution mode, the MFP module executes the control algorithm and constantly checks itself for errors.
Fuctions & Features
- Automatic calibration and compensation: Factory pre-calibrated (offset, gain, nonlinear error compensation). Automatic recalibration during operation to eliminate the effects of component aging and temperature drift, without the need for manual calibration by the user.
- Temperature linearization: Thermocouple/RTD signals are automatically converted to °C or °F based on industry standard nonlinear correction tables. Cold junction compensation (CJC) supports local (built-in) or remote reference.
- Engineering unit conversion: Voltage/current signals are ranged according to function code (FC 216), and outputs are directly converted to engineering values.
Specification
|
Property |
Characteristic |
|
Microprocessor |
32 - bit processor (16 - bit external bus) running at 16 MHz |
|
Memory |
512 kbytes ROM, 512 kbytes RAM, 256 kbytes NVRAM |
|
Power requirements |
+5 VDC at 2 A maximum |
|
Power dissipation |
10 W maximum |
|
Serial ports |
Two RS - 232 - C ports, or one RS - 485 and one RS - 232 - C port all of which link signals at a rate of up to 19.2 Kbaud (Requires NTMP01 or NIMP01 termination devices for connection to these ports.) |
|
Station support |
Sixty - four 40 - kbaud serial stations (IISAC01) or Eight 5 - kbaud serial stations (NDCS03 or NDIS01) |
|
Redundant communication link |
1 Mbaud serial link |
|
Programmability |
Function codes, C, Basic, Batch 90, Ladder, and user - defined functions |
|
Dimensions |
35.56 mm wide (1.40 in.), 177.80 mm high (7.00 in.), 298.45 mm long (11.75 in.) |
|
Mounting |
Occupies one slot in a standard INFI 90 OPEN module mounting unit. |
ABB IMMFP12 - Questions and Answers
Q: What is the brand?
A: ABB
Q: What is the type?
A:Multi-Function Processor Module
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
