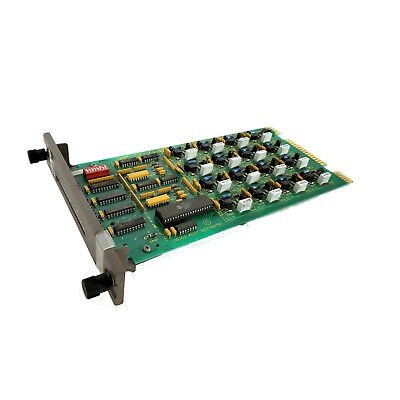

ABB IMDSI02 Digital Slave Input Module
Item Number:IMDSI02
Brand: ABB
Lead Time: In stock
Description:Digital Slave Input Module
Payment: T/T
Product Description
ABB IMDSI02 digital slave input module is a key component in the Infi 90 process management system. Its main function is to introduce 16 independent digital signals from field devices (such as contact closers, switches or solenoids) into the system for processing and monitoring, to interface field inputs with the system, and to support the automation and control of various industrial processes.
Fuctions & Features

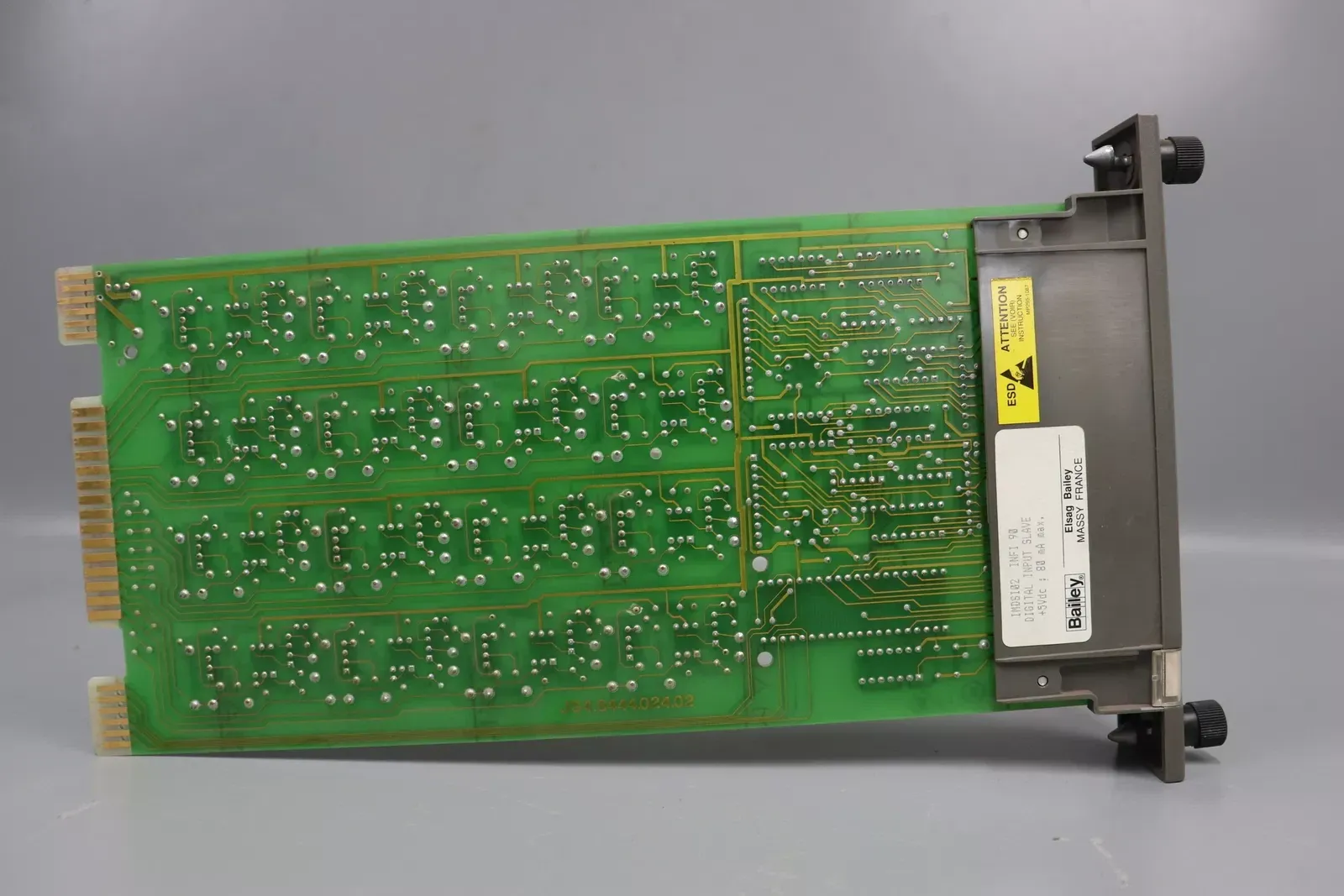

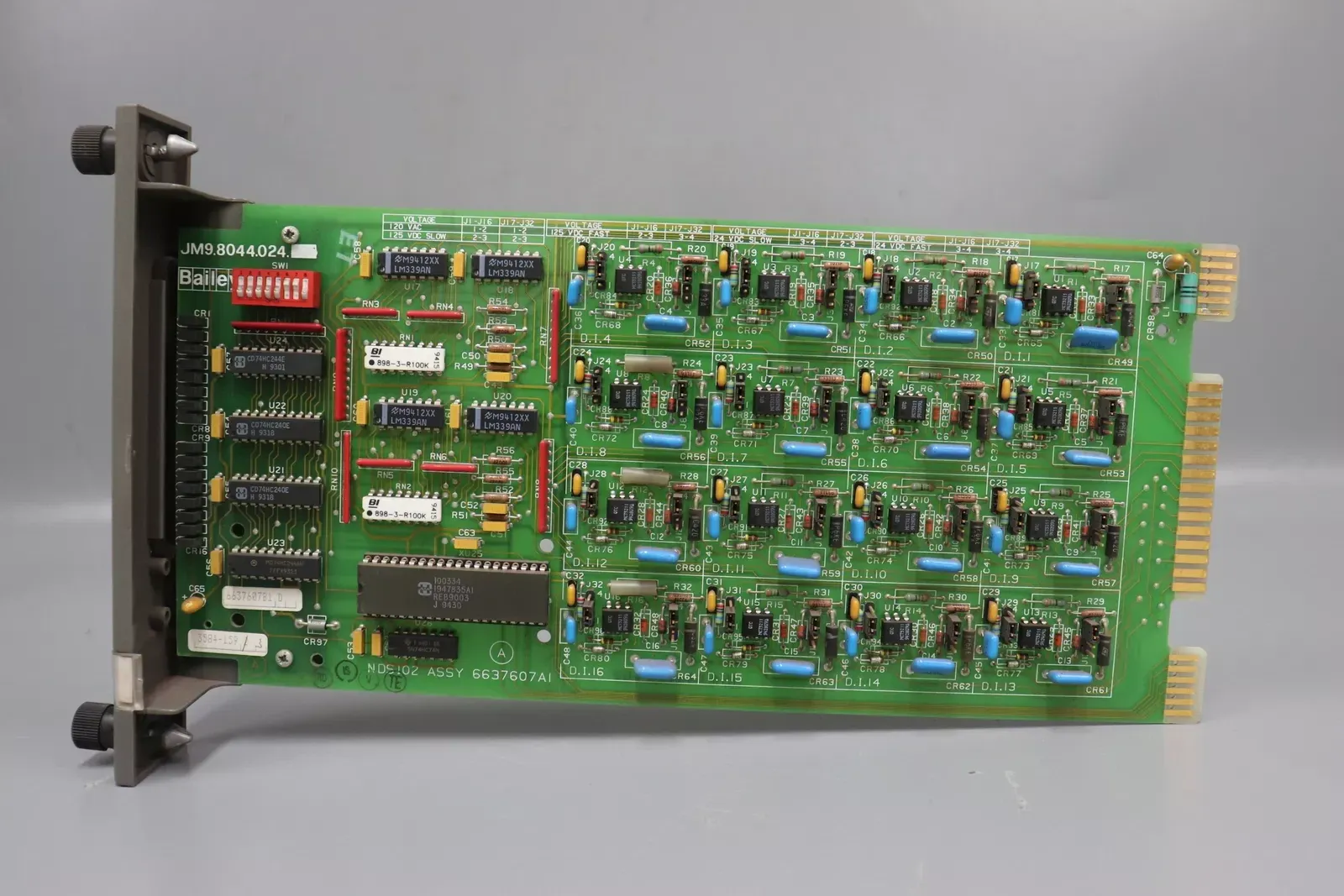

- Single PCB architecture: The ABB IMDSI02 module is designed with a single printed circuit board (PCB) and is a standalone unit that only occupies one slot in the module mounting unit (MMU).
- LED status indication: The ABB IMDSI02 module front panel is equipped with 16 LED indicators, corresponding to two groups (A and B) of input channels.
- Multi-connector design: The module has three card edge connectors, P1, P2, and P3. The P1 connector connects the common ground and provides + 5 VDC power to the module. The P2 connector connects the module to the slave expansion bus. The P3 connector is connected to the terminal unit (TU) or terminal module (TM) through a cable.
Specification
|
Parameter |
Details |
|
DIGITAL INPUTS - Turn - off Voltage (maximum) |
24 VDC 12 VDC |
|
DIGITAL INPUTS - Maximum Input Current at Minimum Turn - on |
24 VDC 3 mA @ 21.4 VDC |
|
Ambient Temperature |
0°C to 70°C (32°F to 158°F) |
|
Relative Humidity |
0 to 95% up to 55°C (131°F) (non - condensing); 0 to 45% at 70°C (158°F) (non - condensing) |
|
Atmospheric Pressure |
Sea level to 3 km (1.86 miles) |
Appilications:
As part of the Infi 90 process management system, the ABB IMDSI02 digital slave input module can introduce 16 independent digital signals from field devices into the system. It has a wide range of working applications in many industrial fields. The following are examples:
Equipment status monitoring: In automated production lines,the ABB IMDSI02 module can connect switches, sensors, etc. of various devices. For example, monitor the start/stop switch of the robot and the running/stop status of the conveyor belt.
