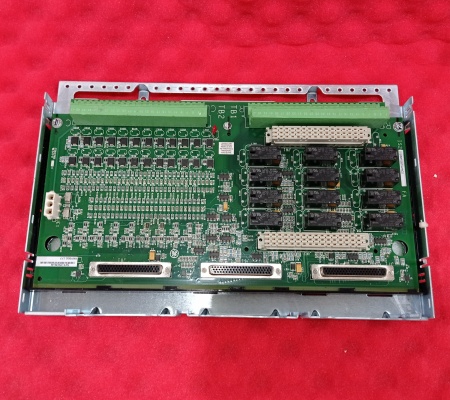

General Electric IS230TDBTH2A Discrete Input/Output Terminal Board

The Discrete I/O Terminal Block is a TMR contact input/output terminal block for DIN rail or flush mounting. It accepts 24 sets of isolated contact inputs that are externally powered with nominal 24, 48, or 125 V DC wet voltage. The TDBT and plastic insulator are mounted on a sheet metal bracket that is then mounted on the DIN rail. The TDBT and insulator can also be mounted on a sheet metal assembly that is then bolted into the cabinet. The contact input functionality and on-board signal conditioning are the same as on the STCI, which are scaled for 24, 48, and 125 V DC wet voltages. The input wet voltage ranges are 16 to 32 V DC, 32 to 64 V DC, and 100 to 145 V DC, respectively.

Frequently asked questions about the product are as follows:

-What is the GE IS230TDBTH2A Discrete I/O Terminal Board?

Capable of handling 24 discrete input channels, it provides a reliable interface for digital signal processing.

-What does the IS230TDBTH2A do?

Serves as an interface between field devices and control systems, allowing the system to read on/off status signals from a variety of industrial sensors, switches, and relays.

-Does the IS230TDBTH2A have noise suppression?

The terminal board is equipped with built-in noise suppression circuitry to prevent high-frequency interference and signal distortion.
