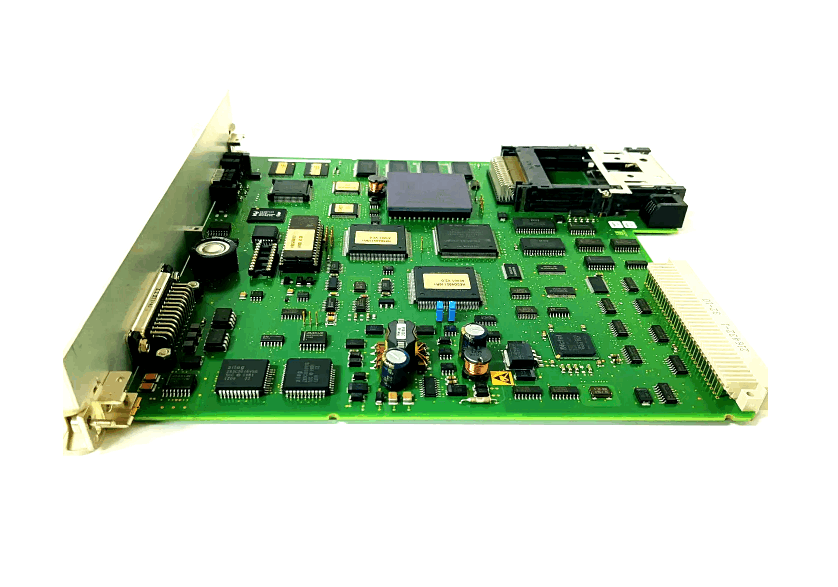

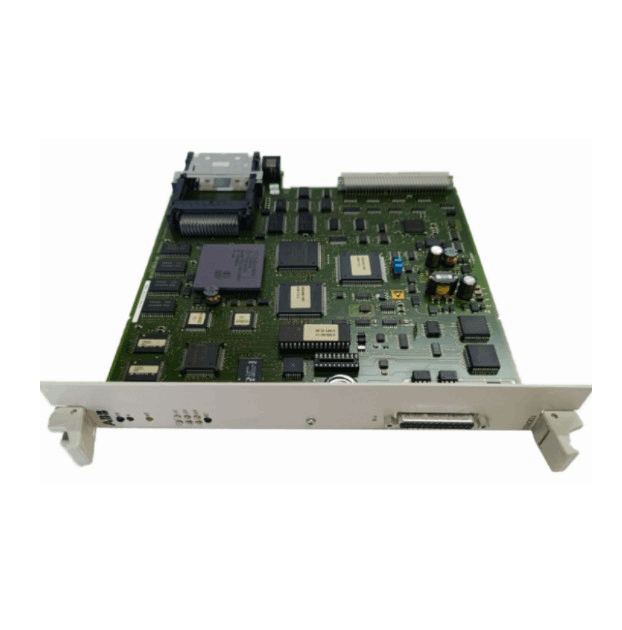

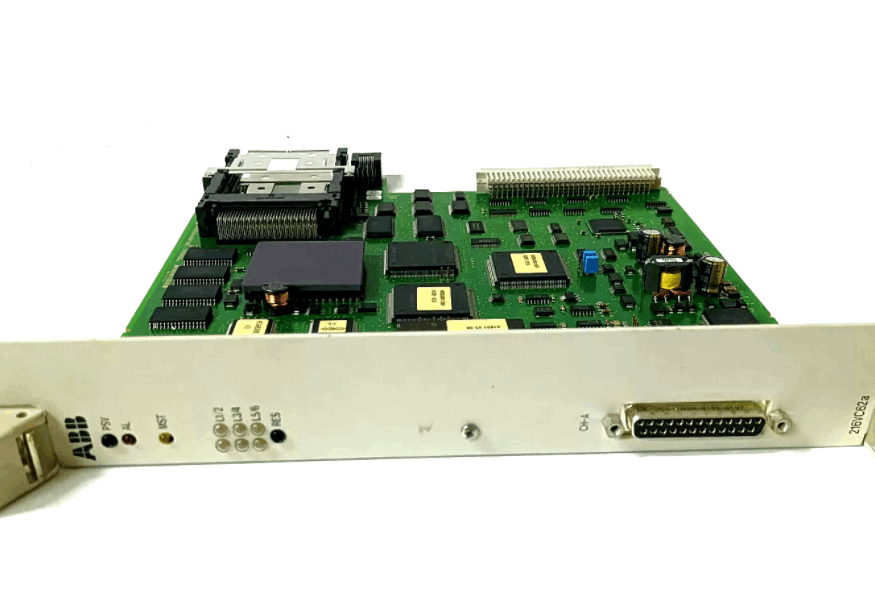

ABB 216VC62A HESG324442R13 Processor Unit Board
Item Number:216VC62A HESG324442R13
Brand:ABB
Lead Time: In stock
Description:Processor Unit Board
Payment: T/T
Product Description
ABB 216VC62A HESG324442R13 is a processor unit board for processor and bay bus (IBB) interface in Substation Monitoring System (SMS) and Substation Automation System. The board supports multiple communication protocols including SPA BUS, LON BUS, MCB Bay Bus and MVB Process Bus. Its design ensures that the memory power is maintained through gold capacitors during power outages, protecting the event list and fault record data. In addition, the board also supports data transmission and communication through RS-423A and RS-232C interfaces.
Fuctions & Features
- Serial interface communication: The ABB 216VC62A front panel has a 25-pin connector for the serial interface RS-423A (CCIT V.10 compliant) with data transmission via unbalanced cables at data rates from 1200 to 19200 baud with a signal level of approximately ±4.5V.
- PC interface communication: The ABB 216VC62A PC interface (RS-232C) is initialized and appropriately set up by software for communication with the RE. 216.
- Data storage protection: When the power supply is interrupted, the memory in the ABB 216VC62A is maintained by a gold capacitor, ensuring that the event list and fault recorder data remain intact.
- Data reading and evaluation: The fault recorder data can be read via the interface or object bus on the front of the ABB 216VC62A and the data can be evaluated using the "EVECOM" evaluation program.
- Clock synchronization: The internal clock of the RE. 216 can be synchronized via the object bus interface of the SMS/SCS system or via a radio clock.
Specification
|
Item |
Specification |
|
Model |
216VC62A HESG324442R13 |
|
Purpose |
Serving as a processor and an interface to the interbay bus in the substation monitoring and automation systems |
|
Communication Protocols |
SPA BUS, LON BUS, MCB interbay bus, MVB process bus |
|
Serial Interface |
RS-423A (CCIT V.10), 25-pin connector, data transfer rate ranging from 1200 to 19200 Baud, signal level approximately ± 4.5V |
|
PC Interface |
RS-232C |
|
Data Storage Protection |
The memory is powered by a gold condenser to maintain its operation when the power supply is interrupted |
|
Data Reading Method |
The disturbance recorder data can be read via the front interface or the object bus |
|
Data Evaluation Program |
"EVECOM" |
|
Clock Synchronization Method |
Synchronized via the object bus interface or a radio cloc |
