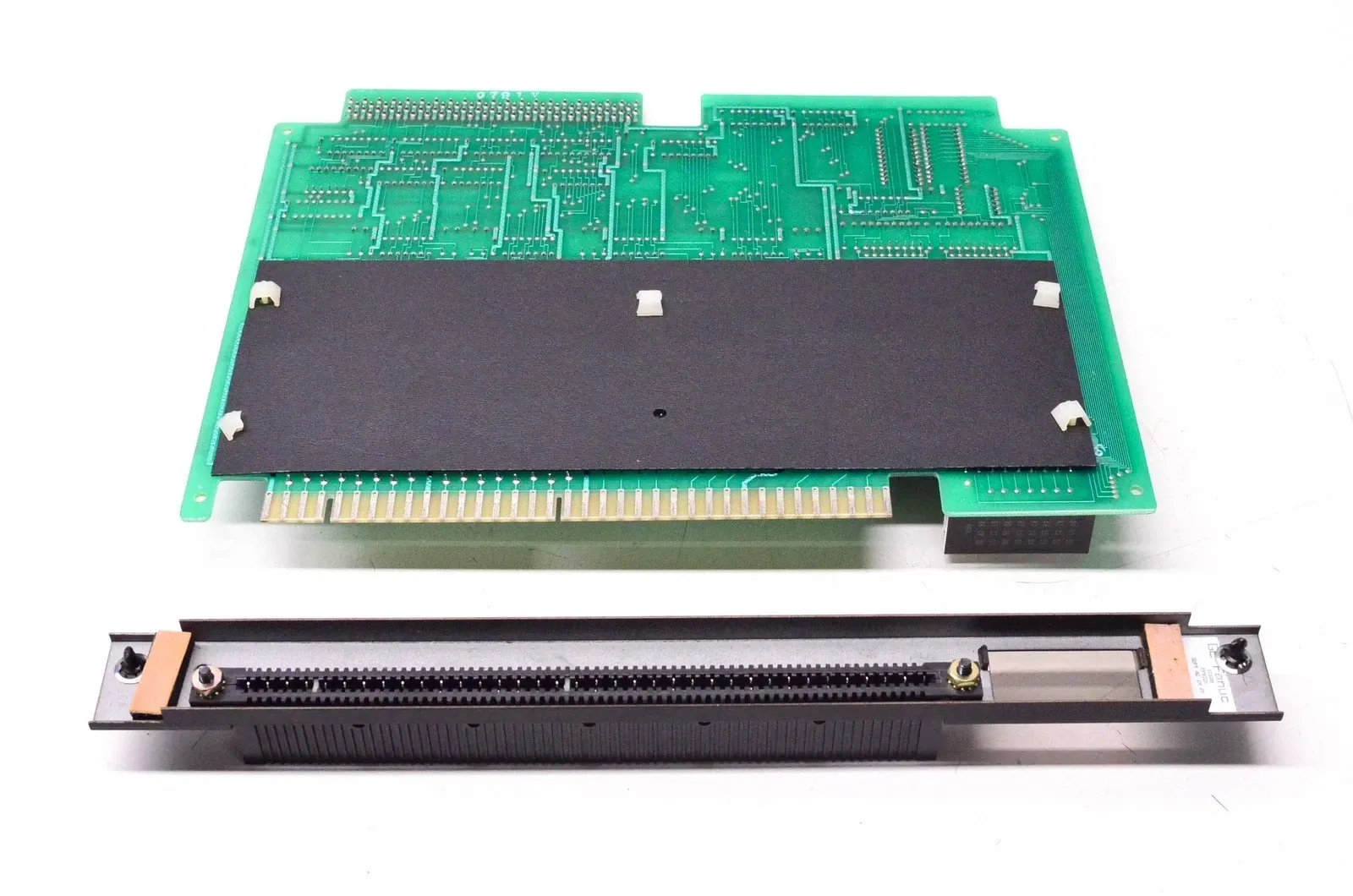

GE Fanuc IC600BF832 Input Module
Item Number: IC600BF832
Brand: GE
Lead Time: In stock
Description:Input Module
Payment: T/T
Product Description
The IC600BF832 is a 115V AC input module for GE Fanuc Series Six PLC systems. It detects bipolar AC voltages from user-supplied and controlled power sources. The IC600BF832 features 32 optocoupler input circuits organized into four groups (A, B, C, and D), each containing eight inputs.
Note:The module requires user-supplied AC input power for operation and is installed in a single slot in the I/O section of a Series Six I/O rack or CPU rack.
Function & Features
- Circuit Components: Each input circuit of the IC600BF832 includes a built-in filter, opto-isolator, and Schmitt trigger (triggering when detecting a specific AC voltage range).
- Single-slot Installation: The IC600BF832 plugs directly into a Series Six I/O rack or CPU expansion rack.
- 32 LED Status Indicators: Each input has a unique alphanumeric label indicating the module's on/off status.
- Transient Protection: The IC600BF832 supports 1500V peak non-repetitive transient voltages.
Specifications
|
Parameter |
Details |
|
Model |
IC600BF832 |
|
Belonged System |
Series Six PLC |
|
Input Type |
115V AC (80-132V AC range) |
|
Number of Inputs |
32 channels (4 groups × 8 inputs, shared common) |
|
Transient Protection |
1500V peak (non-repetitive) |
|
Backplane Current |
104mA @5V DC |
|
Status Indicators |
32 individual LEDs (one per channel) |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Input Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
